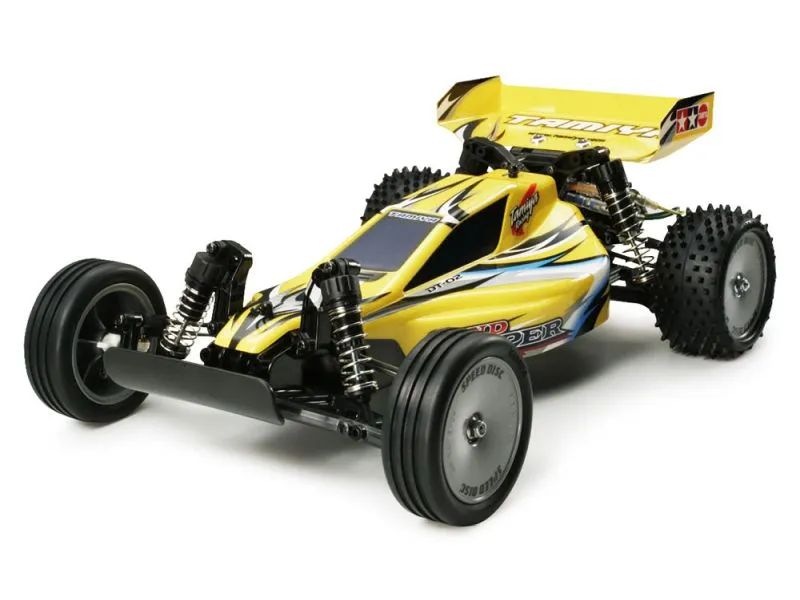

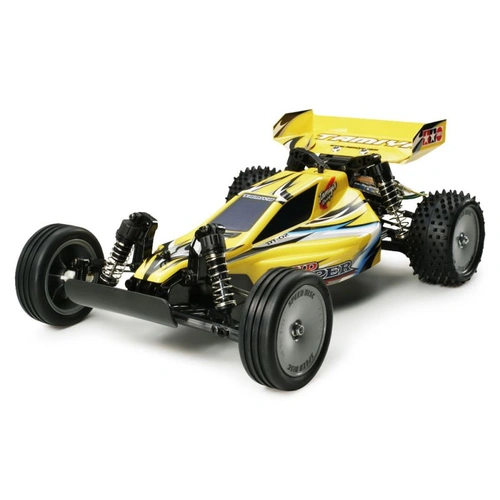

This all-terrain 2WD buggy R/C assembly kit features a low center of gravity bathtub frame, oil damper-equipped 4-wheel double wishbone suspension, and full ball bearings for an exciting high-performance package. The edgy, stylish body is made from durable, lightweight polycarbonate and its yellow paint scheme provides a great match for the gray-colored dish wheels. Grooved front tires and rear spike tires ensure excellent traction on any surface.The DT-02 machine is a simple 2WD chassis which features a straightforward, rugged design to ensure easy assembly and superb reliability while its 4-wheel double wishbone suspension offers agile handling. Combining exciting performance with user-friendliness, the DT-02 chassis is the perfect way for R/C novices to start enjoying the wonderful hobby of Radio Control.

Features:

• Chassis: DT-02
• Drive: Rear wheel shaft driven
• Motor: 540 size transverse mounted
• Electronic Speed Control: Tamiya TEU-101BK with reverse
• Ball Bearings: Full set included
• Body: Polycarbonate with rear wing
• Decals: Pre-cut Peel and Stick
• Tires: Front 1.1 (28mm) wide 3.1 (79mm) dia
• Rear 1.6 (41mm) wide 3.4 (86mm) dia
• Wheels: Front 1.4 (35mm) wide 2.4 (60mm) dia
• Rear 1 (25.4mm) wide 2.4 (60mm) dia
• Shocks: Four oil filled
• Bumper: Front plastic
• Main Gear: Plastic 55 tooth Gear
• Gearbox: Differential type fully sealed
• Suspension: 4-wheel double wishbone
• Steering: Direct to servo via servo saver

Includes:

• Tamiya Sand Viper Buggy with Electronic Speed Control 540 size motor
• front ribbed tires rear spiked tires disc-style wheels
• polycarbonate body with wing and illustrated instruction manual.

Requirements:

• Radio: 2-channel with one standard servo
• Radio Batteries: 8 AA batteries for transmitter
• 6-Cell Battery: Stick pack with Tamiya type connector
• Charger: AC/DC Timed or Peak for 6-cell battery
• Paint: Spray or brush-on polycarbonate safe
• Building and track equipment

Specifications:

• Overall Length: 15.1 (384mm)
• Overall Width: 9.8 (248mm)
• Overall Height: 5.5 (140mm)
• Chassis Weight: 2.3lbs (1041g)
• Wheelbase: 10.2 (260mm)
• Gear Ratio: 9.28:1

(T58374)

SKU T58374
Barcode # 4950344583744
Brand Tamiya
Scale 1/10
Drive Type 2WD
Power Source Electric
