Tamiya 1/10 The Frog 2WD Buggy Off Road 2005 RC Kit 58354

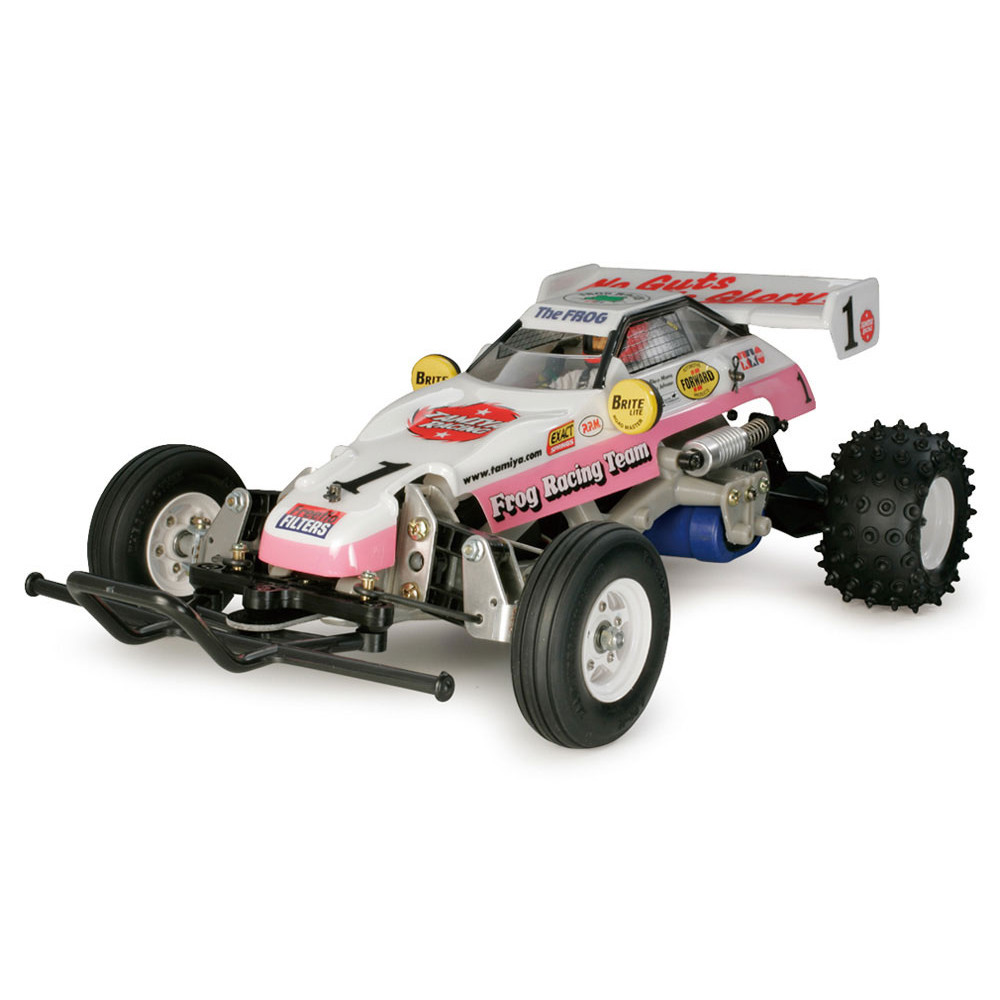

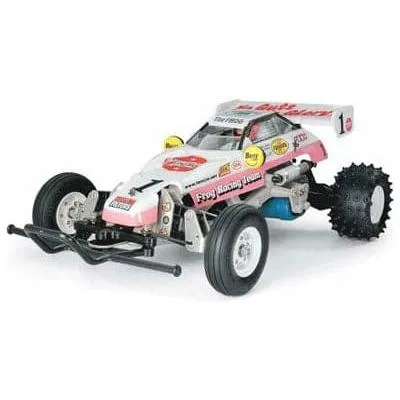

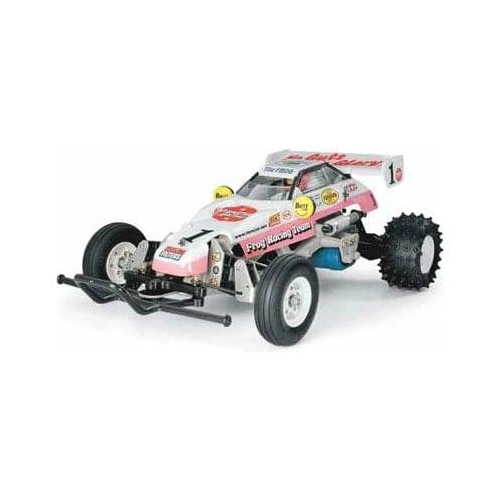

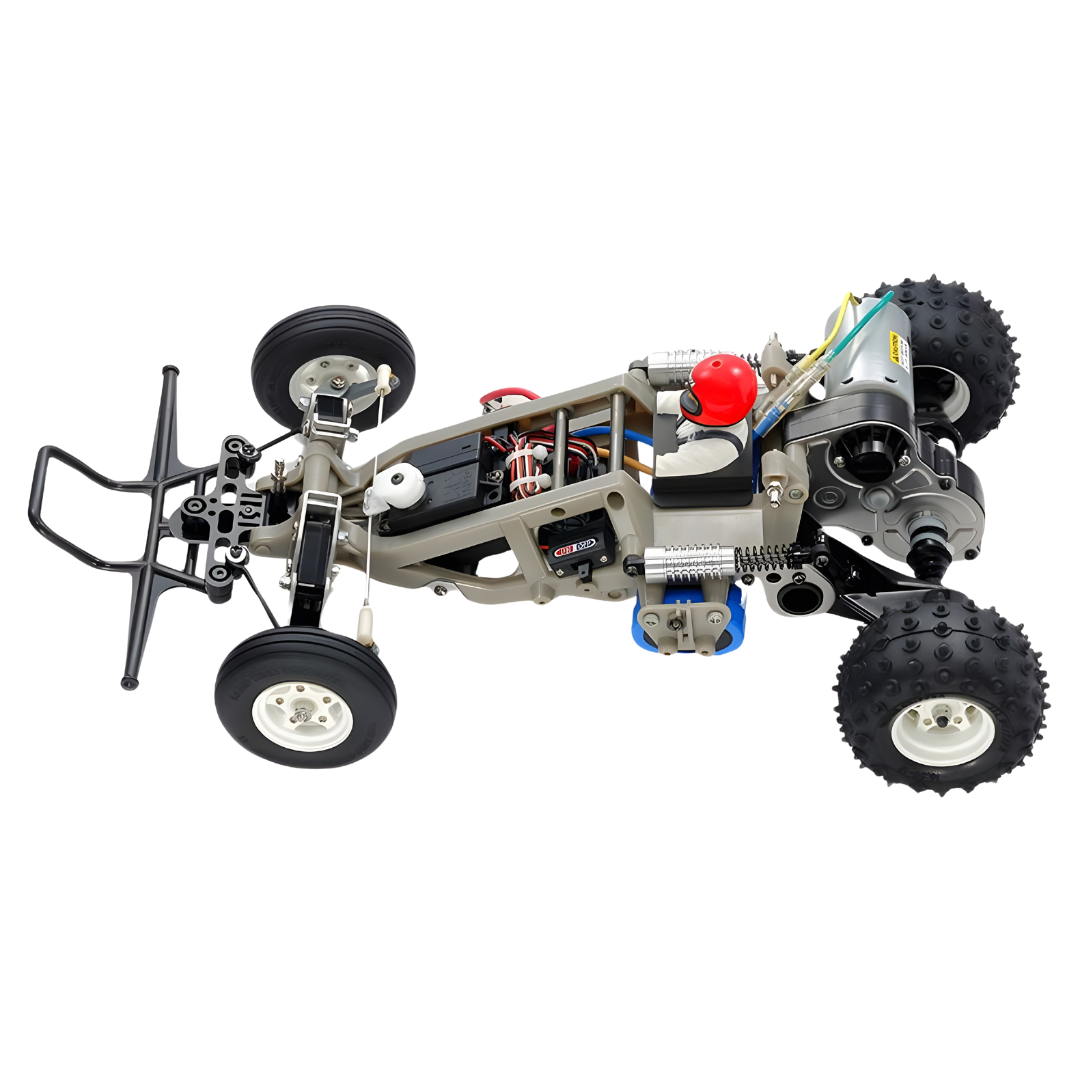

TAMIYA 1/10 THE FROG 2WD OFF-ROAD BUGGY (Includes ESC) First introduced in 1983, the 2WD racing buggy Frog made a huge splash with its eye-catching design and high-performance running. The Frog now makes a comeback, updated for a new age, but with its basic structure essentially unchanged. Preserving its characteristic space frame, the oil dampers for trailing-arm type rear suspension have been updated to diaphragm type. Rear drive shaft features dog bone type joint for secure power transmission. Sleek polycarbonate body remains the same, while 3-piece wheels feature front grooved and rear spike tyres for excellent off-road running. 2WD Chassis Packed with Innovation Electric R/C racing buggy features ABS space frame and nylon suspension and bumper for a lightweight yet rugged form that is perfect for off road running. Battery is held in ultra-low position, giving this car the stability and weight balance to handle rough terrain and wild jumps. Advanced 4-wheel independent suspension composed of front double wishbone type featuring in-board spring and durable steel radius arm. Rear trailing arm type features horizontally mounted aluminium cylinder oil dampers for effective shock absorption. Sealed differential gearbox ensures high speed cornering, while full ball bearings and 3-step gear ratio secures maximum transmission efficiency.

Features: Chassis: ABS resin Drive: Two wheel rear drive Motor: Mabuchi RS540SH stock motor with attached bullet connectors Bearings: Four 5×11 bearings in the gearbox and 5×11 plastic busings in the rear axle carriers and front wheels Shocks: Two rear horizontal mounted, aluminum body, oil-filled Body: Clear Lexan buggy type with clear rear wing Gearbox: 4 gear diff (pinion drives spur, spur drives drive gear, drive gear drives diff gear) Differential: Plastic bevel gear type Transmission: Single speed Pinion gears: 16 tooth, 18 tooth and 19 tooth included Wheels: 1.4″ front, 1.6″ rear, realistic 3-piece, white in color Tyres: Ribbed racing front, high-grip rear spiked Bumpers: Front plastic Suspension: Inboard spring type front suspension Camber Tie Rods: Non adjustable Steering Tie Rods: Adjustable Steering: Steering rods attach to servo saver and knuckle arms Servo Saver: Included Driveshafts: Re-designed dog bone style with rubber boots INCLUDES: Tamiya Frog Buggy w/two horizontal mounted friction type rear shocks, 540 size motor, body, tires, wheels front bumper, 16, 18, and 19 tooth pinion gears, 49, 50, and 52 tooth spur gears, decals and building instructions REQUIRED TO RUN Radio: 2-channel radio with one standard servo Battery: 6 flat pack with standard connector Charger: AC/DC timed or peak for 6-cell battery Misc. Items: Paint for body (Tamiya uses TAMR8611, TAMR8601, and TAMR8605 for box photos)and building and track equipment SPECIFICATIONS: Length: 16.1″ (410mm) Width: 9.4″ (240mm) at rear wheels, widest point Height: 5.7″ (145mm) Weight: 2.2lbs (1020g) Wheelbase: 9.8″ (250mm) Tread: Front and Rear 7.
