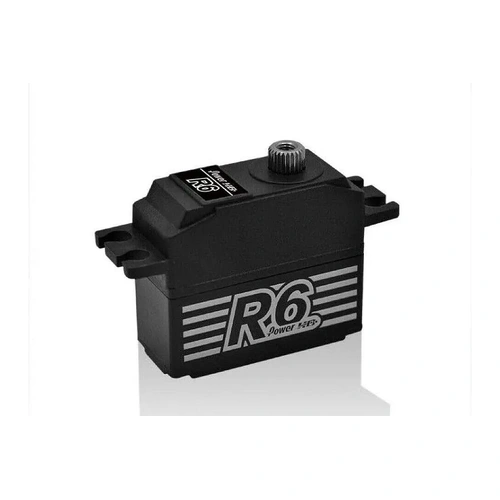

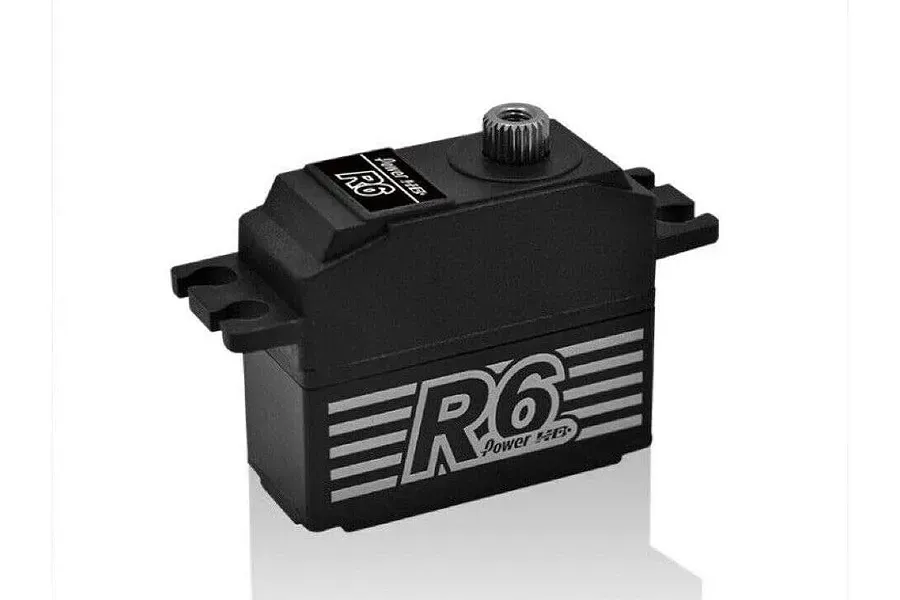

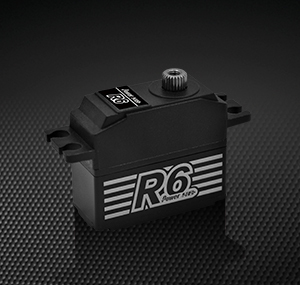

Power HD Standard Coreless Motor Copper & Aluminum Gear Servo
$69.99
Power HD Standard Coreless Motor Copper & Aluminum Gear Servo
$69.99
SKU:
PHD-R6Availability:
Sold Out
Quantity:
Flat Rate $9.95 Shipping To Metro Areas*- Free Shipping For Orders Over $150 To Metro Areas* (Online orders only)
Power HD have introduced their new R6 servo ideal for 1/12th cars. Featuring a coreless motor it pulls up to 7.5kg-cm of torque at 0.08s and weighs only 28.5g.
Description
| Specifications | ||
| Torque(6.0V) | 6.5 kg-cm (90.27 oz/in) | |
| Torque(7.4V) | 7.5 kg-cm (104.16 oz/in) | |
| Speed | 0.09 sec (6.0V) ~ 0.08 sec (7.4V) | |
| Operating Voltage | 6.0 ~ 8.4 DC Volts | |
| Weight | 28.5 g (1.01 oz) | |
| Bearing Type | Ball Bearing x 2 | |
| Motor Type | Coreless Motor | |
| Gear Type | Copper & Aluminum | |
| Operating Temperature | -20 ~ 60 | |
| Working frequency | 1520 s / 333hz | |
| Size | 35.0 x 15.1 x 29.5 mm ( 1.38 x 0.59 x 1.136 in) | |
| Height | (A ) = 34.7mm. Body |
| Width | (B ) = 35mm. Below Mount (C ) = 20.5mm. Above Mount (D ) = 14.2mm. Total |
| Length | (E ) = 35mm. Total |
| Width | (F ) = 15.1mm. SpecificationsTorque(6.0V): 6.5 kg-cm (90.27 oz/in). Torque(7.4V): 7.5 kg-cm (104.16 oz/in). Speed: 0.09 sec (6.0V) ? 0.08 sec (7.4V). Operating Voltage?6.0 ~ 8.4 DC Volts. Weight: 28.5 g (1.01 oz). |
| Bearing | Type: Ball |
| Bearing | x 2. |
| Motor | Type?Coreless Motor. Gear Type?Copper & Aluminum. Operating Temperature?-20?~60? . Working frequence?1520?s / 333hz. Size?35.0 x 15.1 x 29.5 mm ( 1.38 x 0.59 x 1.136 in). Included itemsDescription. QTY. R6 Black Aluminium Mini Coreless 7.5kg 8.4V Aluminium & Copper Geared Servo. 1. Servo Hardware Set. 1. |
Full Specifications
| ClassType | Servos & Accessories |
| List | 478 |
| PartType | Electronics |
Specifications
| Brand | Power HD |
