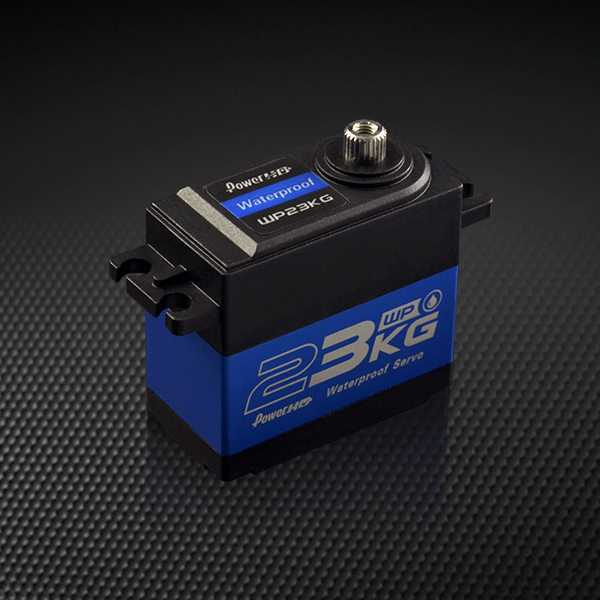

Power HD Standard Coreless Motor Titanium & Steel Gear Servo

Power HD Standard Coreless Motor Titanium & Steel Gear Servo

Now  $80.74

Description

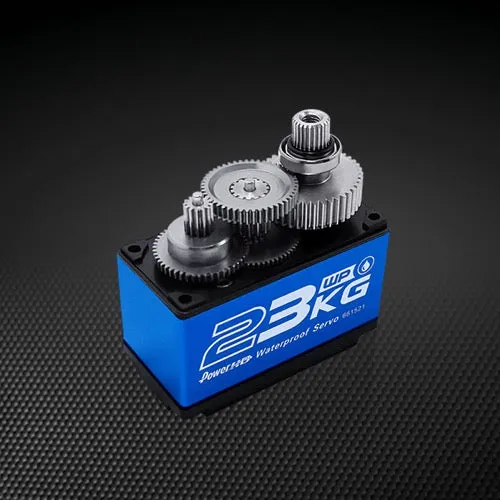

The Power HD WP-23KG (HD-WP-23KG) is a waterproof, coreless, digital servo engineered for dependable performance. Delivering up to 23.0 kg-cm of torque with a 0.12s transit speed at 6.0V, it pairs a titanium/steel gear train with dual ball bearings for smooth, durable operation. Running on 4.8–6.0V DC and weighing 75 g, its compact 40.7 x 20.5 x 38.5 mm case helps it fit neatly where space is tight, making it a strong option when you need a high-torque, metal-gear 6V servo with consistent response. Specification - Torque - (4.8V): 18.0 kg-cm (250.0 oz/in) - (6.0V): 23.0 kg-cm (319.4 oz/in) - Speed: 0.14 sec (4.8V) │ 0.12 sec (6.0V) - Operating Voltage:4.8 ~ 6.0 DC Volts - Weight: 75 g (2.65 oz) - Bearing Type:Ball Bearing x 2 - Motor Type:Coreless Motor - Gear Type:Titanium & Steel - Operating Temperature:-10℃~60℃ - Working frequency:1520μs / 333hz - Size:40.7 x 20.5 x 38.5 mm ( 1.60 x 0.80 x 1.49 in)

Specifications

Brand Power HD
