Description

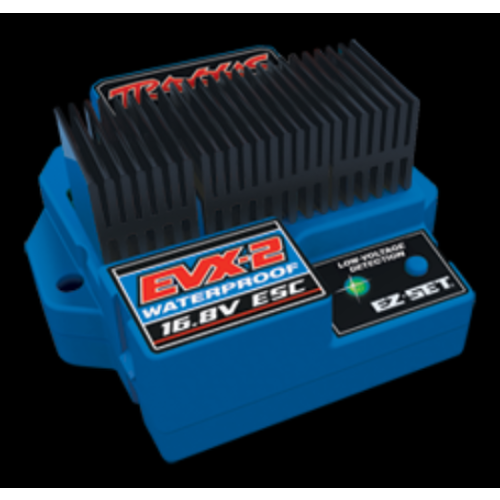

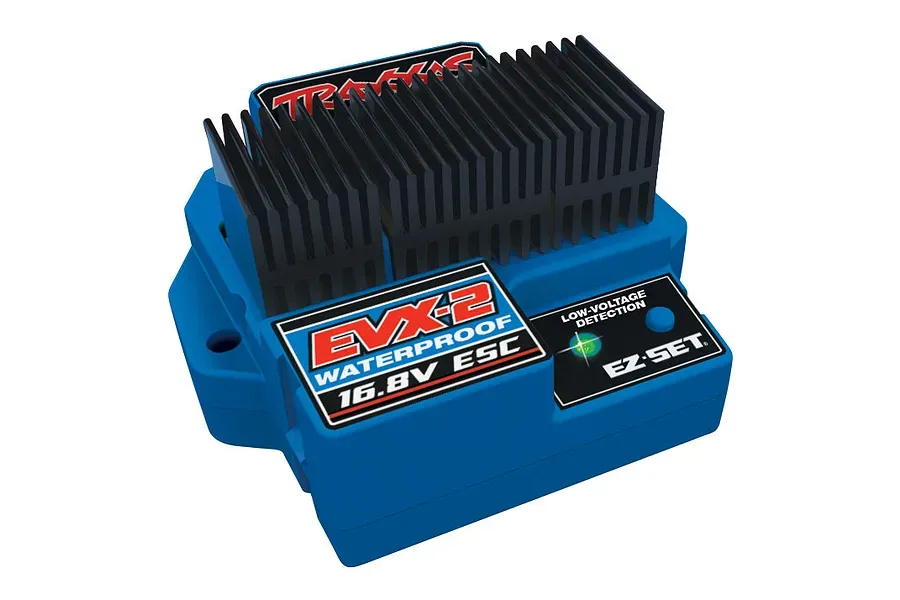

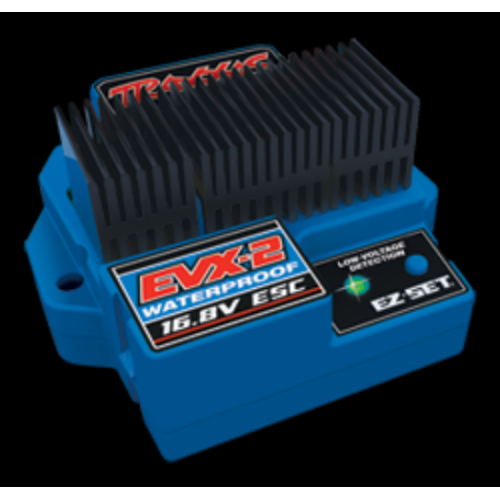

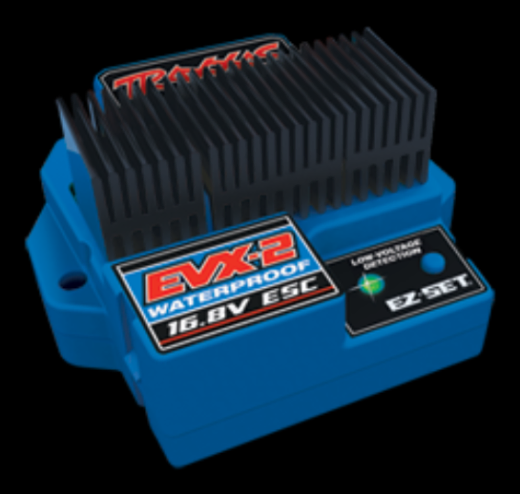

The EVX-2 delivers an incredible 16-plus volts, from two battery packs, making 16.8-volt, twin-motor setups more powerful than ever! Designed by Traxxas, the EVX-2 features a completely waterproof design, three drive profiles, Thermal Shutdown Protection, and gold-plated Traxxas High-Current Connectors. The EVX-2 also includes patent-pending Training Mode.... This profile reduces the overall power output of the EVX-2 by 50% making it easier for young/new drivers to develop their control skills before unleashing full-power operation. EVX-2 is equipped with two-stage low voltage detection (LVD) to allow LiPo battery use. The EVX-2 is manufactured by Traxxas to ensure the highest level of quality and support.

The EVX-2 uses Traxxas exclusive EZ-Set push-button set-up and a multi-colored LED making it a snap to adjust. Its microprocessor control has three built-in programming modes including: Sport Mode with forward, brakes, and reverse; Racing Mode with forward, brakes, and no reverse; and the exclusive Training Mode... that limits forward and reverse power by 50% while still applying 100% brakes. Built-in thermal shutdown protection adds an extra level of safety. Sophisticated, high-frequency operation and low internal resistance provide longer run times, more speed, and more fun!

The exclusive Training Mode... limits full throttle output to 50% making it easier for new or young drivers to develop their control skills. With the high-frequency efficiency of the EVX-2, run time is also greatly increased. When theyre ready, simply change profiles to unleash full-throttle action. Only Traxxas has it!

EVX-2 Waterproof ESC Features

...Built-in two-stage low voltage detection (LVD)
for Lithium Polymer (LiPo) battery use
...16.8 Volts of Power
...Waterproof Design
...Microprocessor Controlled
...Traxxas High-Current Connectors
...Three Drive Profiles
...Patent-Pending Training Mode
...EZ-Set.. Push-Button Set-Up
...Thermal Shutdown Protection
...For Traxxas E-Maxx.., E-Revo.. and Summit

EVX-2 LVD (WATERPROOF) SPECIFICATIONS

Input voltage: .. 6-14 NiCad and NiMH cells (7.2 to 16.8 volts DC)
4-cell LiPo (14.8 volts DC)

Case Size: .. 2.27W x 2D x 1.05H

Weight: .. 3.6 ounces

Motor Limit (540 size): .. 10-turns

Motor Limit (550 size): .. 12-turns

On-Resistance.. (@Trans)...FWD/REV: .. 0.004 ohms / 0.004 ohms

Rated Current...FWD/REV: .. 180 amps / 180 amps

Braking Current: .. 360 amps

Continuous Current (at 100..F amb.): .. 30 Amps

Reverse Delay: .. None

BEC Voltage: .. 6.0 volts DC

BEC Current: .. 2.5 amps

Power Wire: .. 14 Gauge / 3

Input Harness Wire: .. 26 Gauge / 9.5

Motor Wires: .. 14 Gauge / 4

Transistor Type: .. MOSFET

PWM Frequency: .. 1700 Hz

Thermal Protection: .. Thermal shutdown

Profile selection: .. Sport Mode:

100% fwd, 100% brakes, 100% rev.

Race Mode:
100% fwd, 100% brakes, no rev.

Training Mode*:
50% fwd, 100% brakes, 50% rev.
Single-button setup: .. Yes, Traxxas EZ-Set
..
