Take the Path Less Traveled

TRX-4^® Land Rover^® Defender^® delivers innovation versatility, and capability to match its incredible scale looks. Underneath the rugged body TRX-4 Defender is built with extreme capability to take your off-road adventures to new heights. Portal axles deliver maximum ground clearance that turn “no way” into “no problem.” Whether you are enjoying outdoor trails or getting technical on the rocks, the remote-locking front and rear differentials and high/low range transmission provide unmatched driving versatility.

Clipless Officially Licensed Land Rover^® Defender^® Body

• Injection molded scale details including grille, snorkel, and side mirrors
• Rugged, functional roll cage
• Tough fender flares
• Front bumper with tow hooks and replica winch
• Rear bumper with scale accessories and functional spare tire
• Full Nylon composite wheel wells and floor pans
• Quick and Easy Removal

Trail-tuned XL-5™ HV Waterproof Electronic Speed Control

• Fully waterproof design
• Five drive profiles
  • Sport Mode — forward / brake / reverse
  • Race Mode — forward / brake / no reverse
  • Training Mode™ - 50% forward / 100% brake / 50% reverse (patented)
  • Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
  • Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
• Traxxas EZ-Set^® one-button setup
• Large, efficient heat sink
• Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
• Two stage low voltage protection (LVD)

Titan^® 550 Motor

• Powerful Titan 21T reverse rotation motor with internal cooling fan
• Precision, preset gear mesh adjustments
• Motor retention separate from gear mesh

Portal Axles

• Increase ground clearance (3.14″)
• Eliminate torque twist
• Steel gears
• Improve axle geometry and reduce strain on driveshafts

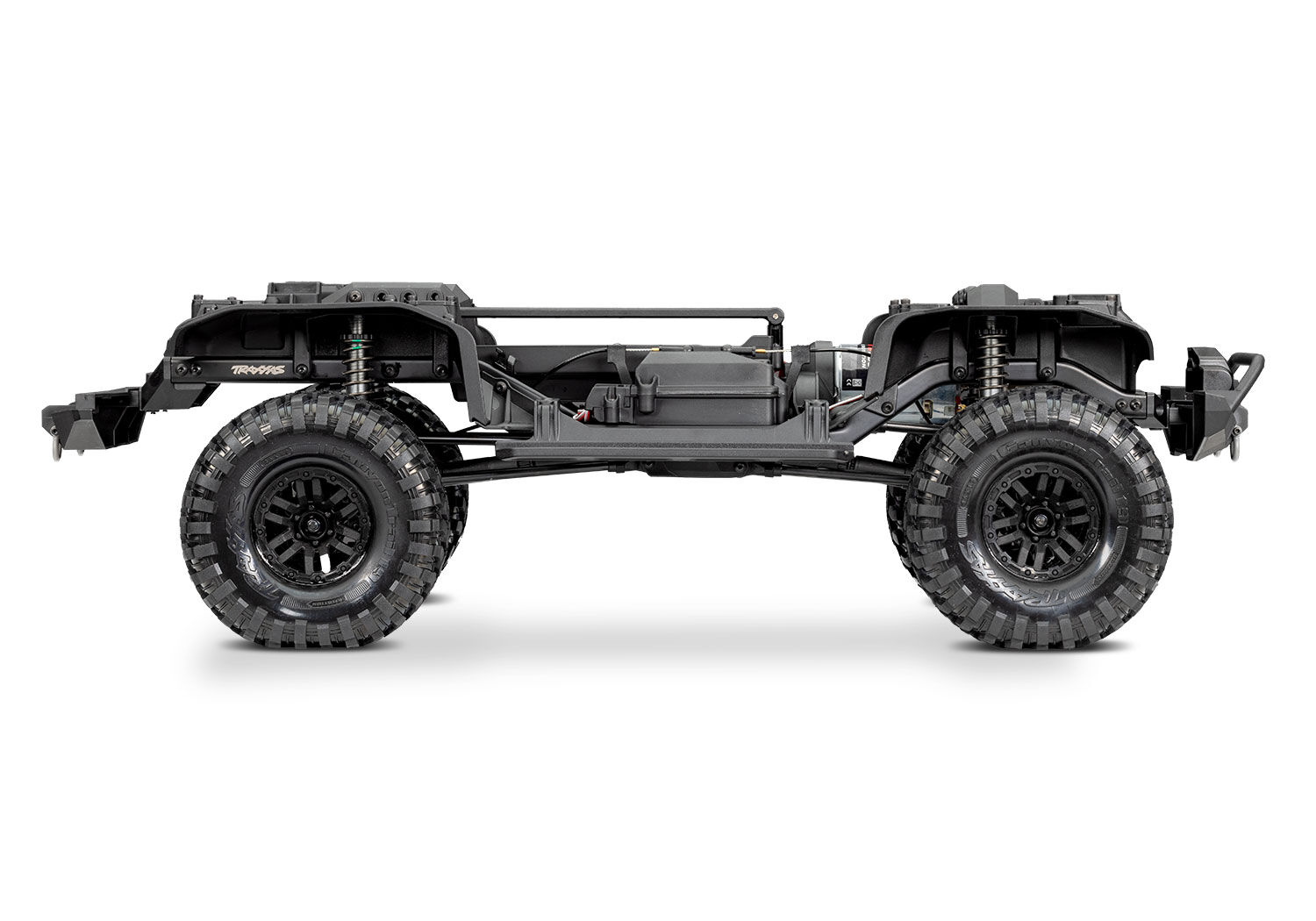

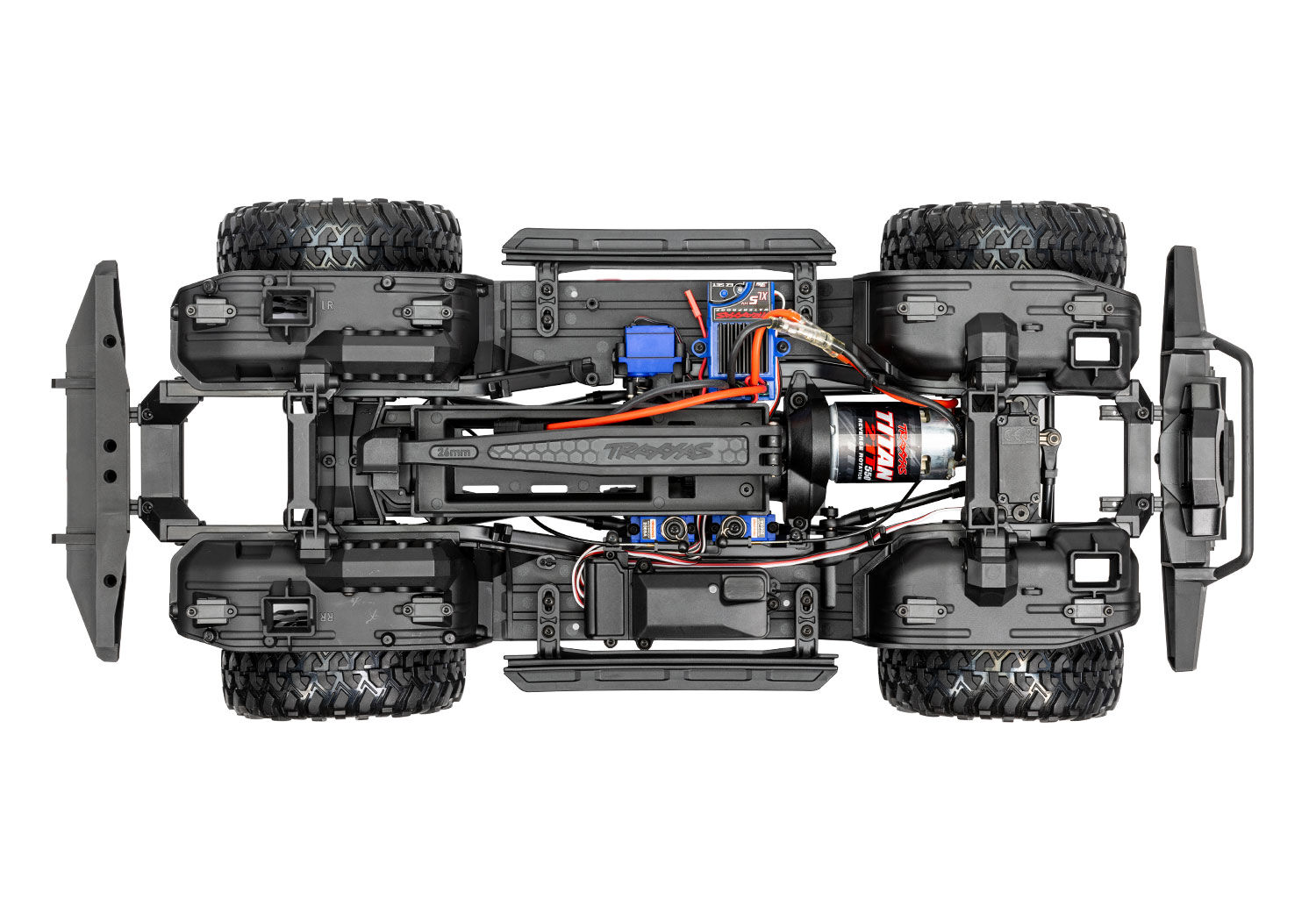

Rigid Steel Frame

• 1.5 mm thick steel frame rails increase torsional rigidity
• Innovative design allows four wheelbase positions (300 mm, 312 mm, 324 mm, 336 mm)
• Adjustable rear shock tower positions for SWB and LWB configurations
• Bumpers adjust fore and aft
• Rugged rock rails adjust for width
• Wire routing clips integrated into frame rails

Aluminum GTS Shocks

• Oil-filled coilover GTS shocks
• Silver-anodized aluminum bodies
• Threaded bodies with collars easily adjust ride height
• Silky smooth damping for the toughest trails
• O-ring cap seal and dual X-ring shaft seals

Wheels and Tires

• 1.9″ Canyon Trail tires with trail-tuned foam inserts
• Pre-glued and mounted to tough black scale wheels
• Trail tuned S1 rubber compound
• 12 mm steel hex

TQi™ 2.4 GHz Radio System

• 4-channel transmitter
• 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
• Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
• Automatically stores and loads settings for up to 30 Traxxas Link enabled models
• Exclusive Cruise Control feature for extended trail driving
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle endpoints
• Patented waterproof receiver box with easy-access plug

MODEL 82256-4: TRX-4 Land Rover^® Defender^®: 1/10 Scale and Trail^® crawler, fully-assembled, waterproof, Ready-To-Drive^®, with TQi™ 2.4 GHz radio system, XL-5™ HV Electronic Speed Control, and Clipless painted replica body.

What’s In The Box:

• TRX-4, Ready-To-Race^® model
• XL-5 HV waterproof electronic speed control
• Titan 21T reverse rotation motor
• TQi 2.4 GHz radio system with cruise control
• High quality maintenance tools

What You’ll Need:

• Batteries - TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.
• Charger - Traxxas EZ-Peak^® Live charger is recommended for easy and fast charging performance (model TRA-2971).
• AA Alkaline Batteries - Four AA alkaline batteries for the transmitter.
