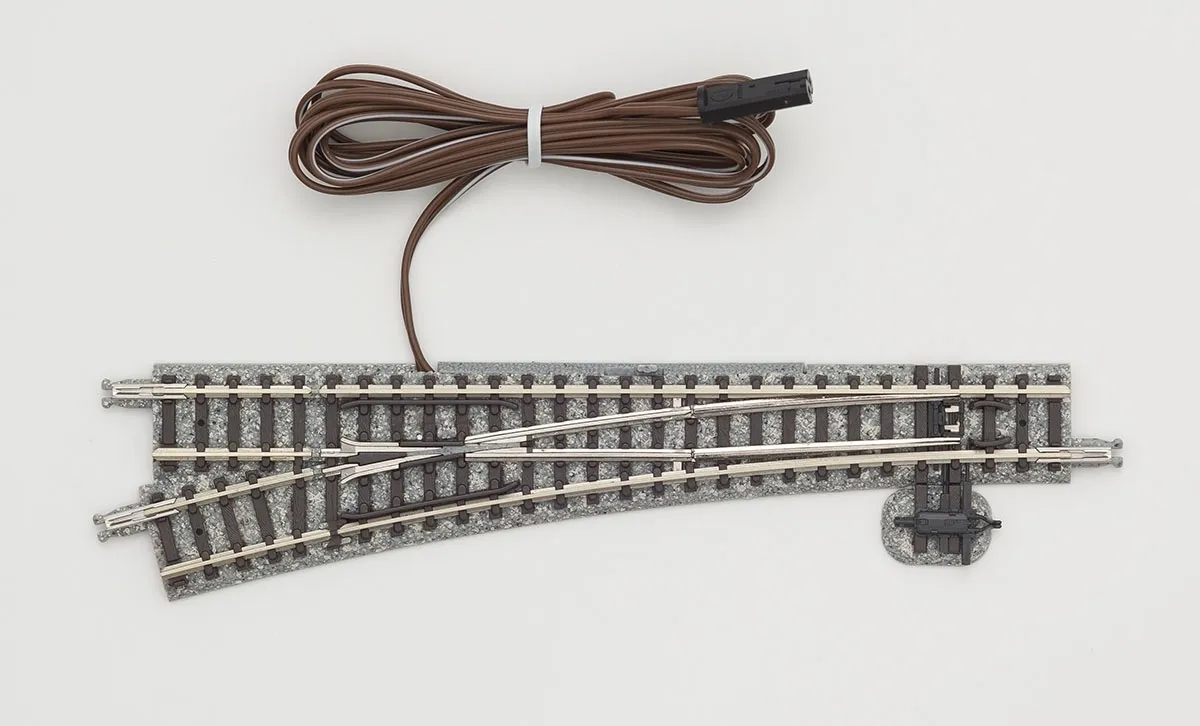

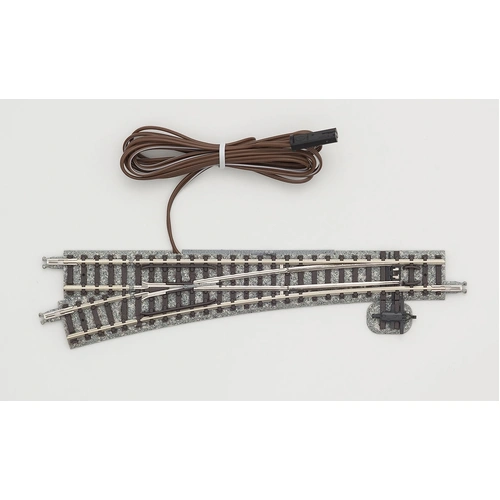

Tomix N Electric Turnout Track Left Hand 21-5/16" 541mm Radius, 15°

Tomix N Electric Turnout Track Left Hand 21-5/16" 541mm Radius, 15°

$39.99

Description

With a length of 140 mm, N-PR541-15 (F) is a standard Tomix electric point that branches to the right and N-PL541-15 (F) to the left. Adopts a complete selection type and can also be used as a spring point.

Features

  • Connection compatible with conventional TOMIX rails
  • Rails are joined together with claws
  • Improved joiner is used for the joiner
  • Works in combination with point control box N and power unit N
  • +/- energization of two rails This is a fully selective system that completely switches between two directions using two built-in contacts, so you can enjoy reverse operation and complex point installation with simple electrical wiring. - Double track in combination with existing C541-15 rail . Branching at a spacing of 37mm
  • By using two wires, a one-way line with double track spacing of 37mm is achieved at a distance of 280mm
  • Gap is realized by replacing with an insulated joiner (sold separately)
  • Dummy point motor, spring point sign, manual switching device, sign sticker
  • Electric point N-PL541-15(F) (complete selection type)

Accessories

  • Dummy point motor runner
  • Dummy point switching machine runner
  • Dummy point switching machine stand
  • Dummy point switching machine seal

Specifications

Brand Tomix
