Tomix N Easement Wide PC Curve Track 15-3/8" Radius, 22.5°

Tomix N Easement Wide PC Curve Track 15-3/8" Radius, 22.5°

$16.99

Description

This is a wide curve cant introduction rail with a radius of 391mm, a curve angle of 22.5°, and a width of 37mm. A canted rail where the rail on the outside of the curve is higher than the inside, and the rail is introduced from flat without cant to canted rail gradually.

Features

  • Ballast and sleepers are painted for a beautiful appearance
  • PC sleepers are expressed
  • Rails are joined together with nails for easy and reliable connection
  • Connection compatible with conventional TOMIX rails
  • Handrails, side walls, and fences (sold separately) can be attached to the side of the rail
  • Compatible with single-track piers by attaching the separately sold single-track pier base to the bottom
  • Can be used as a double-track rail by connecting CR (L) 354-22.5-WP (sold separately) inside
  • Wide rail when used as a double-track rail Compatible with double-track elevated piers by attaching a coupling for the cant section (coupling for wide rails and slab rails on the flat lead-in section) to the underside. - Power supply by attaching a feeder for wide rails and slab rails to the underside (feeder for slab rails) . can also be installed, but conventional feeders cannot be installed)
  • Sensors for wide rails and slab rails can be installed with additional machining by the user (sensors for slab rails and one-touch mounting sensors cannot be installed)
  • Supports mounting on various overhead line poles Gradually changes from 0 degrees to about 4 degrees with a curve angle of 22.5 degrees

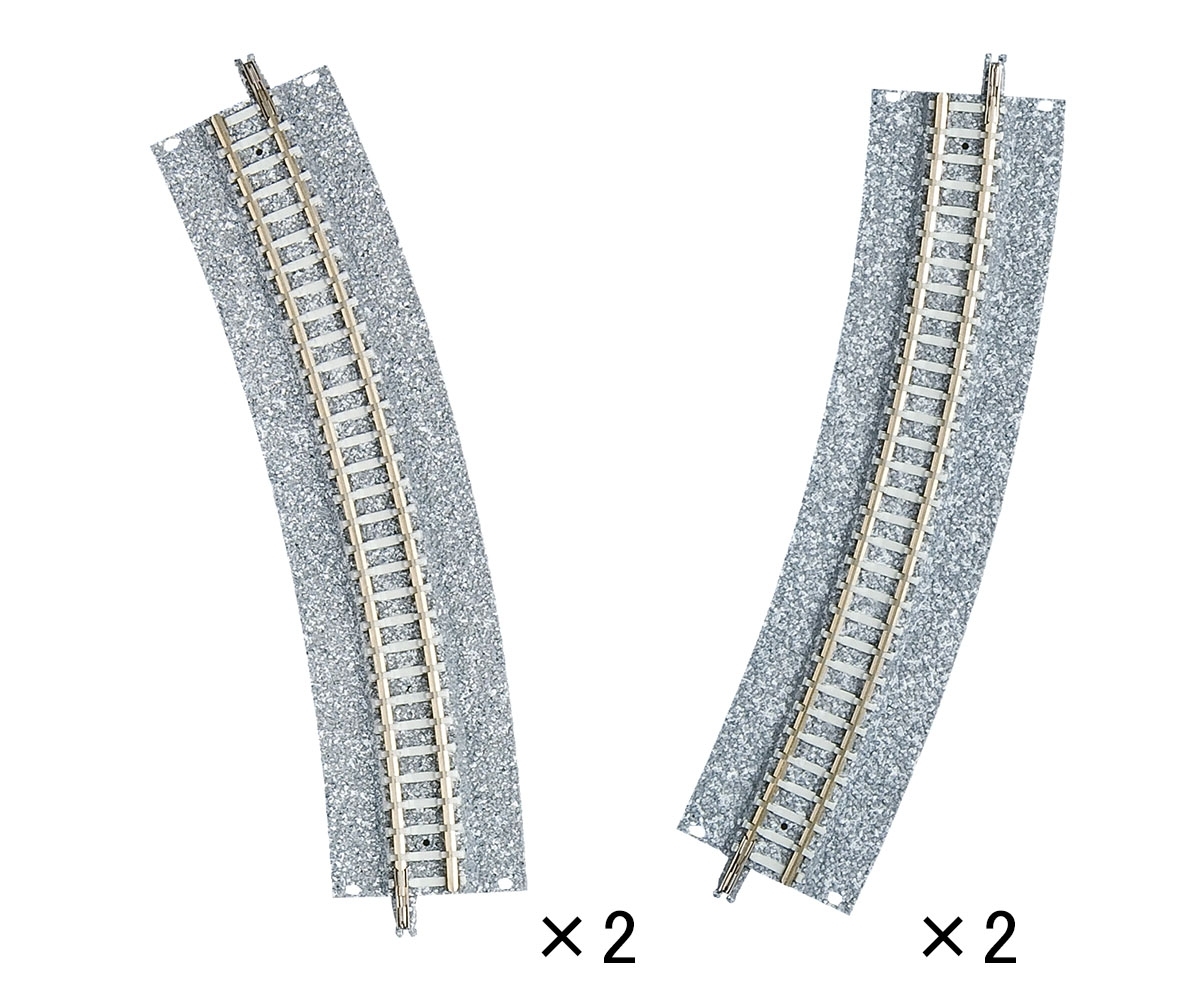

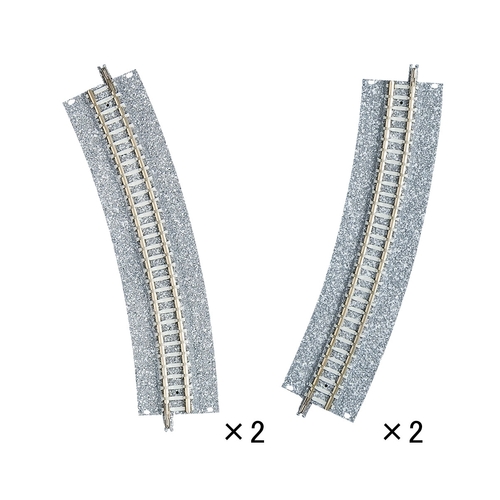

  • One set of each 2 pieces: CR, which gradually cant while curving to the right, and CL, which gradually cant while curving to the left
  • Wide PC approach rail CR391-22.5-WP(F)
  • Wide PC approach rail CL391-22.5-WP(F)
  • Runner parts: Wide rail joint

Specifications

Brand Tomix
