Tamiya Twin-Motor Gearbox 70097

Tamiya Twin-Motor Gearbox 70097

$16.99

Description

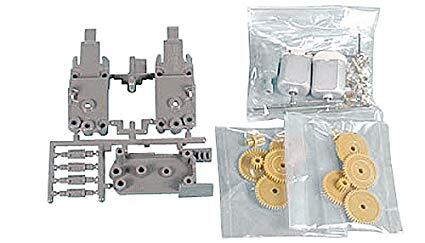

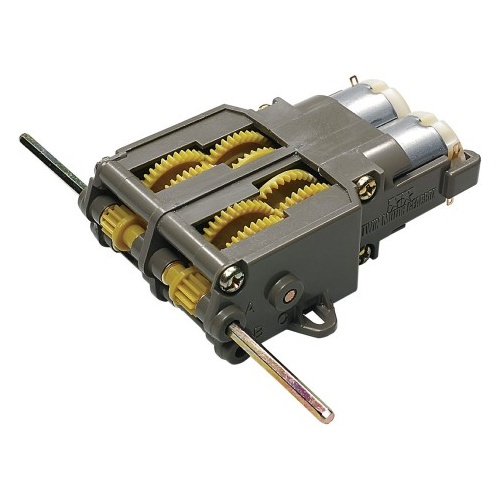

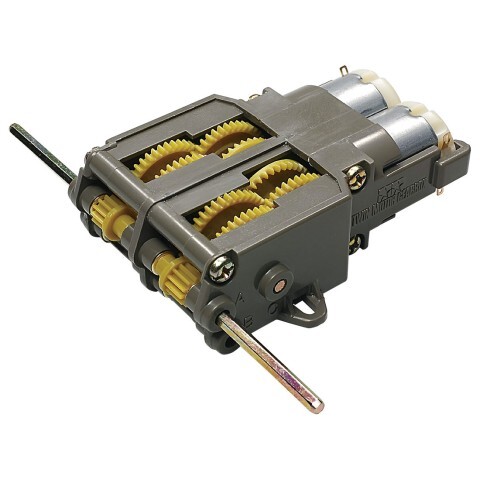

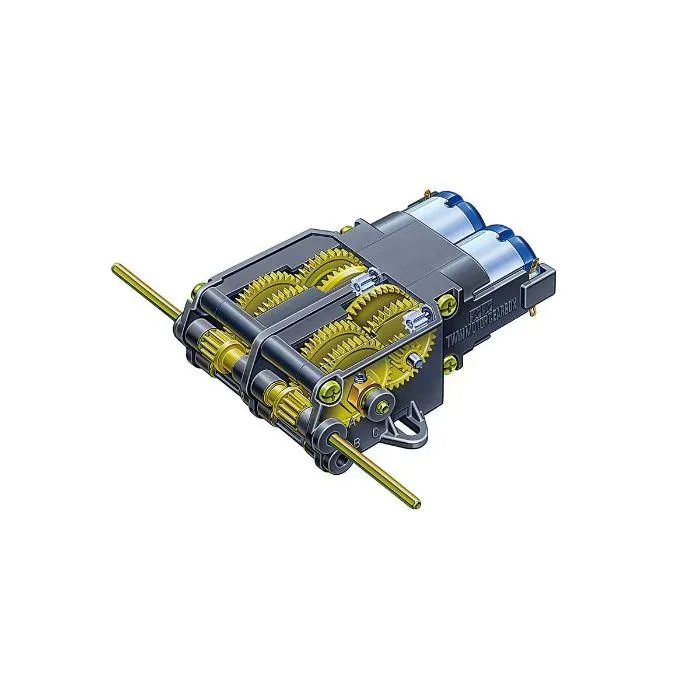

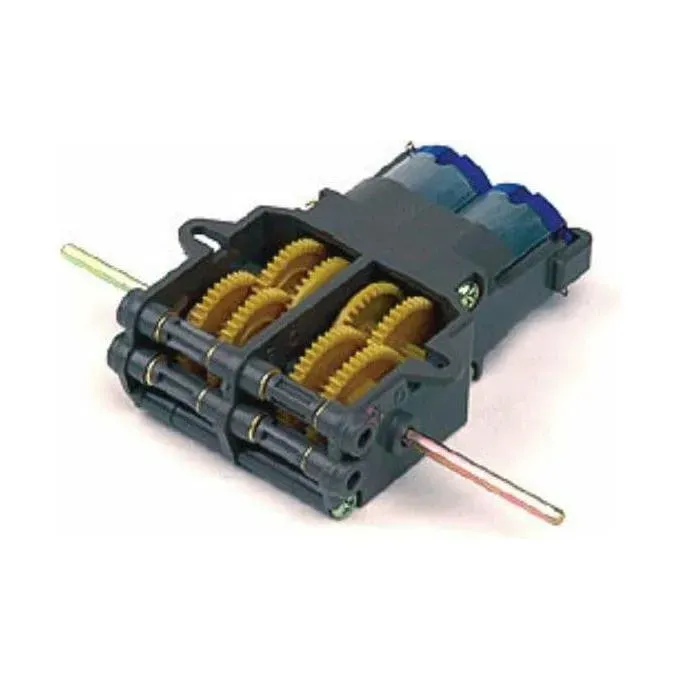

The Tamiya twin-motor gearbox is a small (3-inch long) plastic gearbox. It contains two small DC motors that drive separate 3mm hexagonal output shafts. There are two ways to put the kit together: with a high-speed 58:1 gear ratio or with a slower 203:1 gear ratio. Either way, the motors provide plenty of power to drive any small robot. For a gearbox with a similar form factor and more gear ratio options, see the Tamiya double gearbox.

The assembly kit twin-gearbox offers simultaneous motion from two motors, catering for models which use Educational Construction Series products like track and wheel sets and the 2-channel remote controller.

Reinforced plastic gears and casing make for smooth operation, and no cement is required for assembly. ★Length: 75mm, attachment width: 50mm, height: 23mm ★Output shaft length: 100mm ★58.2:1 and 203.7:1 gear ratios ★Two motors included.

Assembly instruction manual (PDF) Tags Educational Construction Parts Gearboxes RELATED PRODUCTS Construction & Craft ITEM 70102 2-CHANNEL REMOTE CONTROL BOX Construction & Craft ITEM 70157 UNIVERSAL PLATE SET (2PCS.) Construction & Craft ITEM 70100 TRACK & WHEEL SET Construction & Craft ITEM 70151 R6/AA/UM3 BATTERY BOX w/SWITCH

Specifications

Brand Tamiya
