Tamiya RC 1/14 Ford Aeromax Truck Kit T56309

Tamiya RC 1/14 Ford Aeromax Truck Kit T56309

$599.99

Description

DESCRIPTION

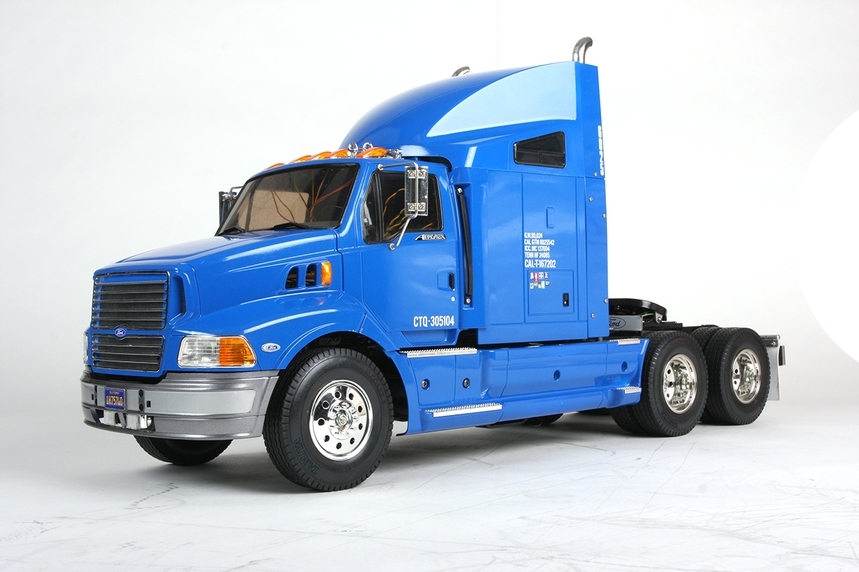

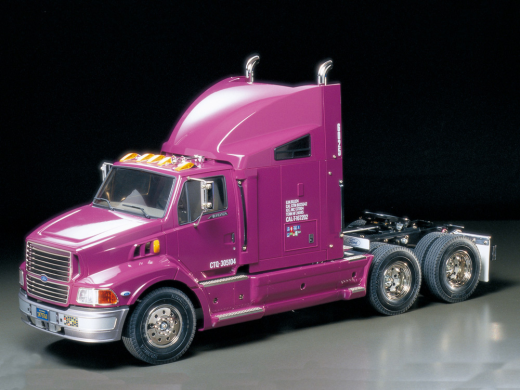

The massive American rig has joined Tamiya"s 1/14 scale tractor truck stable. Tamiya"s model of the Ford Aeromax tractor truck boasts both large scale realism and authentic functions. Servo-shifted 3-speed transmission is mounted at the front of the aluminum ladder frame.

Features

Chassis: Ladder frame with aluminum channels and resin cross members
Body: Molded styrene, white in color
Cabin: Tilt forward operation just like full-size truck, removable fenders to depict a low carrying load
Drive: Shaft driven from front mounted motor to double rear axles
Differentials: Bevel gear
Motor: RS540 brushed

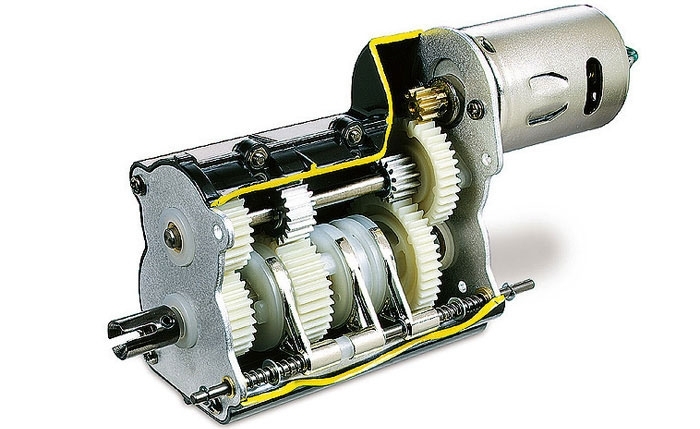

Transmission: Three speed servo controlled constant mesh
Suspension: Die cast metal front axle and reinforced resin rear axles float mounted on metal leaf springs and coil spring shocks
Wheels: Chrome plated plastic
Tires: Ten, treaded rubber construction

Specifications

Length: 24.17 inches (614mm)
Width: 7.48 inches (190mm)
Wheelbase: 17.60 inches (447mm)
Front Tread: 6.14 inches (156mm)
Rear Tread: 5.43 inches (138mm)
Weight: 6.39 lbs. (2900g)
Chassis: Aluminum ladder
Suspension: Solid Axle
Damper Type: Metal friction
Drive Train: Gearbox (3-speed)
Gear Ratio: 10.6:1 - With the 3-speed gearbox, 10.6:1, 17.7:1 and 32.4:1 are possible
Differential Type: Bevel Gear
Engine: Electric 540
Wheels & Tires: Chrome/Radial
Body Type: Styrene(plastic)


REQUIRED TO RUN:
Futaba 4YWD or equivalent Transmitter and Receiver
Tamiya Multi-Function Unit or Brushed ESC
Minimum x2 Servos (Steering and 3-speed gearbox) may need addtional servos*
Battery: NIMH 6-cell flat with standard Tamiya connector
Charger: NIMH Compatible Charger
Tamiya TS and Acrylic Paints

Specifications
