Tamiya M-08 Chassis Kit

Tamiya M-08 Chassis Kit

$229.99

Description

This TAMIYA high-performance rear-wheel drive R/C chassis assembly kit is constructed around a rigid monocoque with the main frame split into front and rear sections. It offers superior rear high traction drive characteristics and fuss-free maintenance of parts such as the easy-access differential. C.V.A. (Constant Volume Adjustable) oil shock-damped 4-wheel double wishbone suspension features dedicated long arms and steering linkage components for a range of setup options. A silky-smooth drivetrain utilizes full ball bearings, oil-filled gear differential unit and universal drive shafts. It can be assembled with a 210mm (S), 225mm (M) or 239mm (L) wheelbase, making it compatible with appropriately-sized existing Tamiya M-chassis body parts sets.
¢1/10 scale R/C model assembly kit.
¢The chassis is split into front (suspension and servo) and rear (motor and battery) sections. It can be assembled into three different wheelbases: S (210mm), M (225mm) or L (239mm).
¢Rear-midship motor powers rear wheels via a differential in the Mid-Rear setup.
¢Oil-filled differential gear used from the M-07.
¢Features proven M-07 Concept designs: suspension arms, uprights, suspension mounts and aluminum parts.

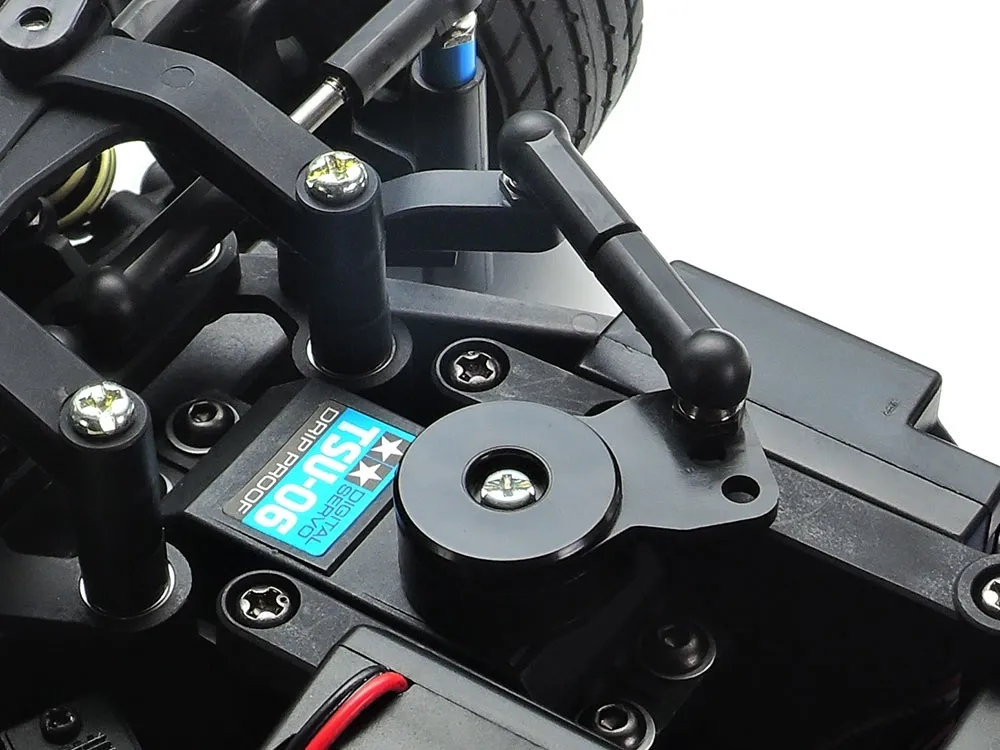

¢Includes CVA oil dampers, universal drive shafts, full ball bearings and hi-torque servo saver.

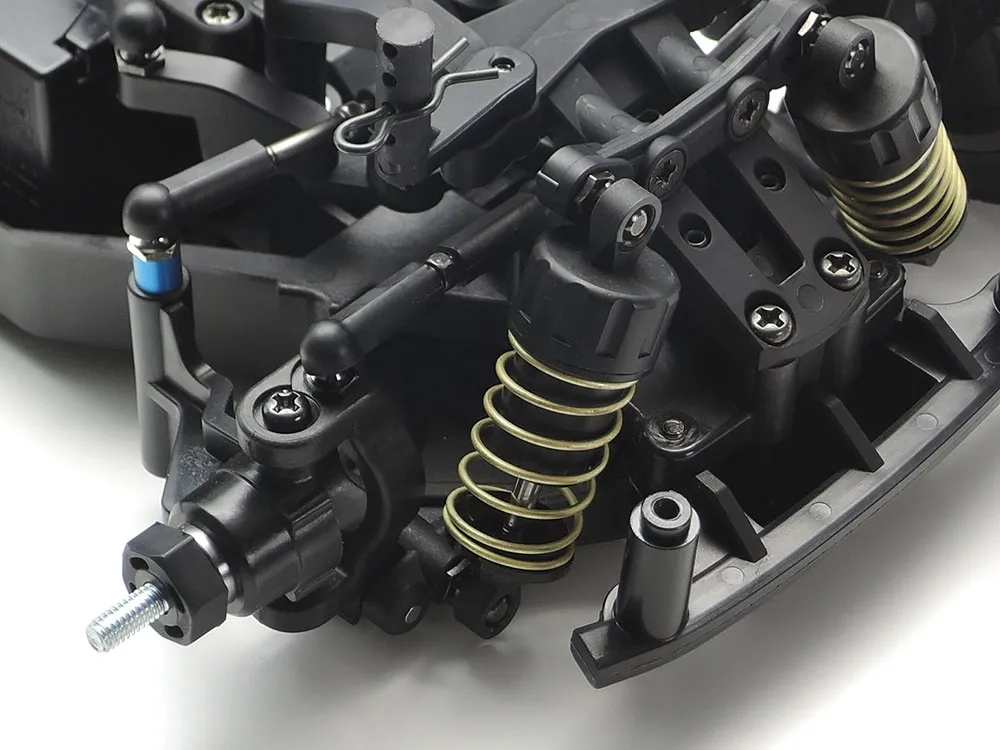

¢Comes with new front suspension mounts (0 degrees) and hub carriers (2 degrees) for a total caster angle of 2 degrees.
¢Compatible with M-06 Chassis bodies.
¢Requires: 2-Channel Radio, servo, ESC, motor, 7.2-7.4volt battery pack & compatible charger, and body set.
¢Compatible with M-07 Concept Hop-Up Option parts such as Aluminum Rear Suspension Mount (Skid Angle Adjustment) (54787), Aluminum Rear Uprights (54781) and Low-Friction King Pin Pipes (54813).

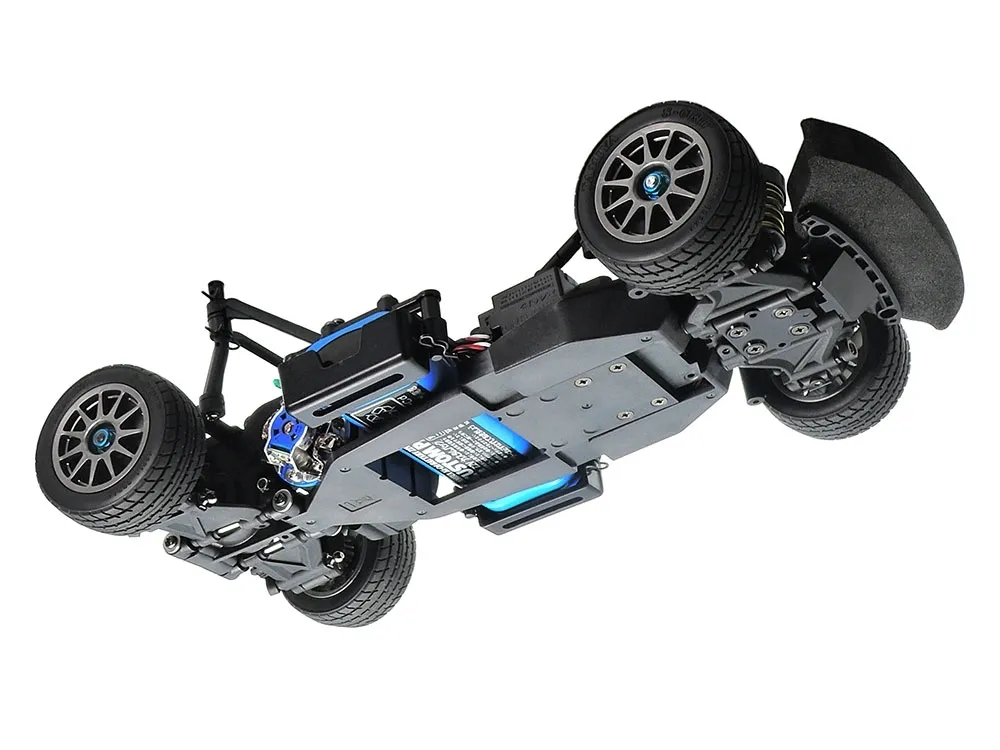

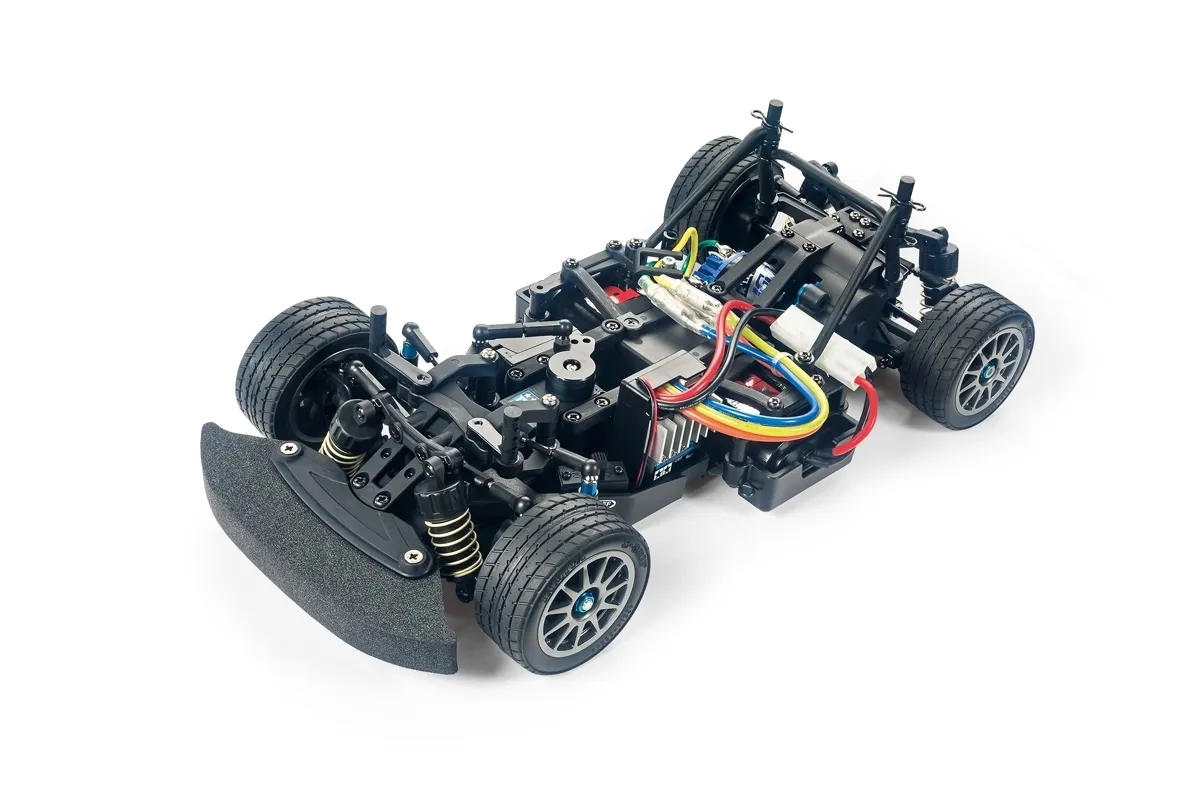

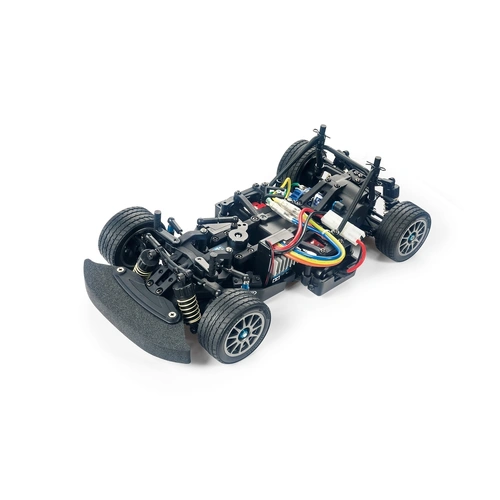

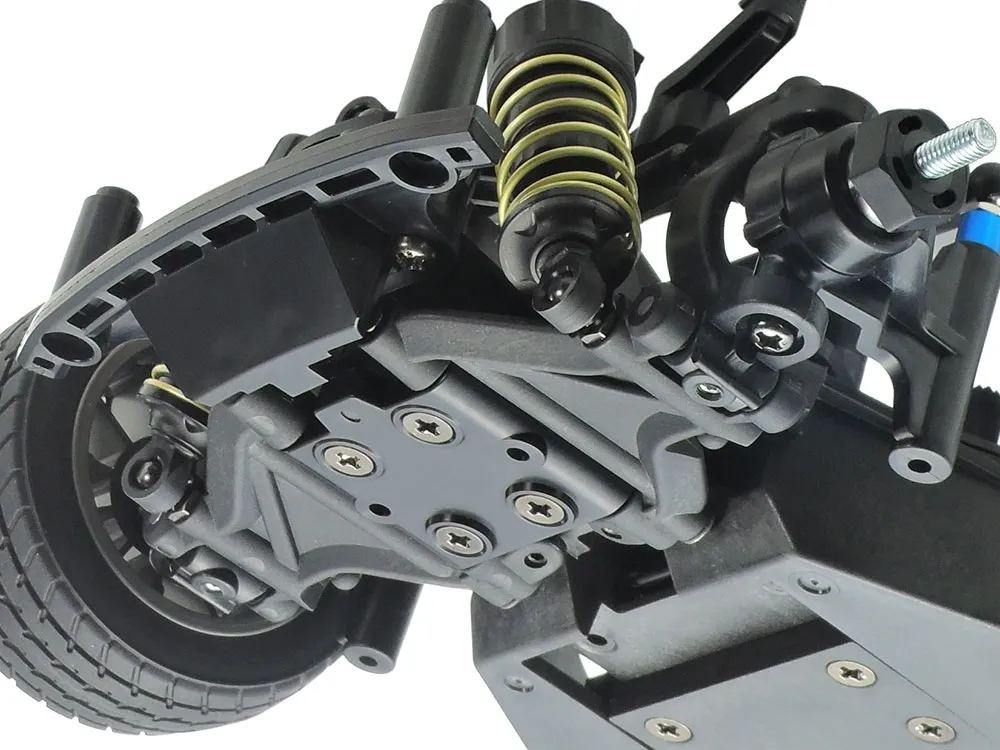

Image shows assembled kit.

Body, motor, tires, R/C equipment, battery pack and charger are sold separately.

Instruction Manual Correction A correction has been issued for the assembly instruction manual for this product. A GR8 M-Chassis Addition This assembly kit creates the M-08 Concept high performance R/C chassis, which employs a midship motor, rear-wheel drive layout for superior rear traction, plus a main frame split into front and rear sections that allow 3 different wheelbases.

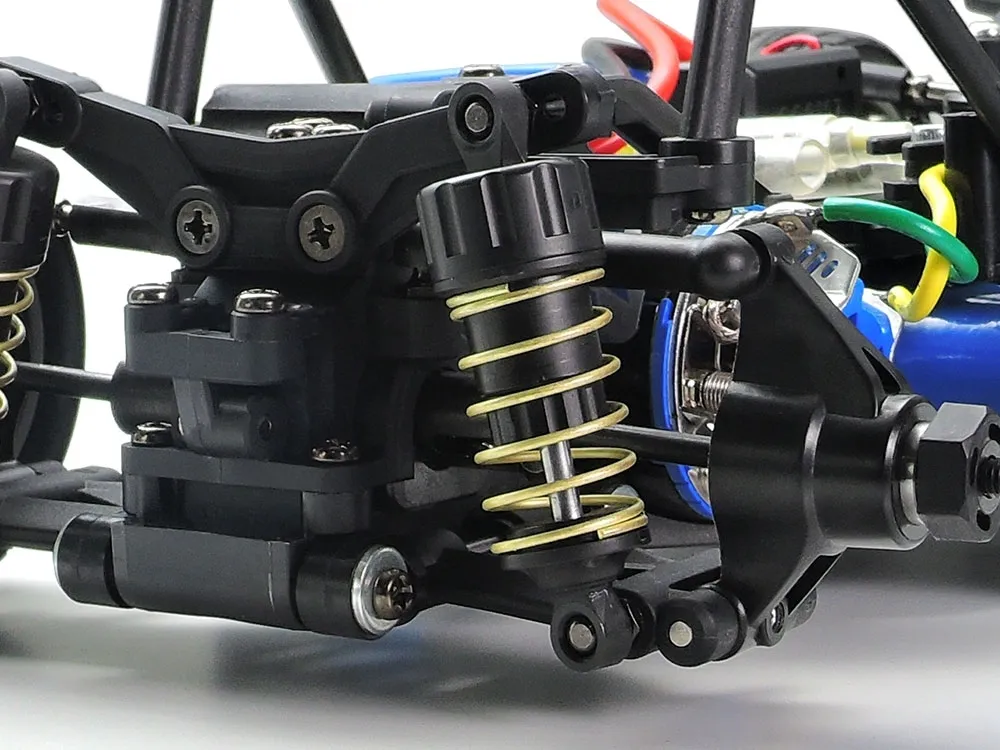

Smooth 4-wheel double wishbone suspension utilizes CVA oil dampers and long suspension arms for a ground hugging drive, and the front caster with a pairing of 0-degree suspension mount and 2-degree hub carrier.

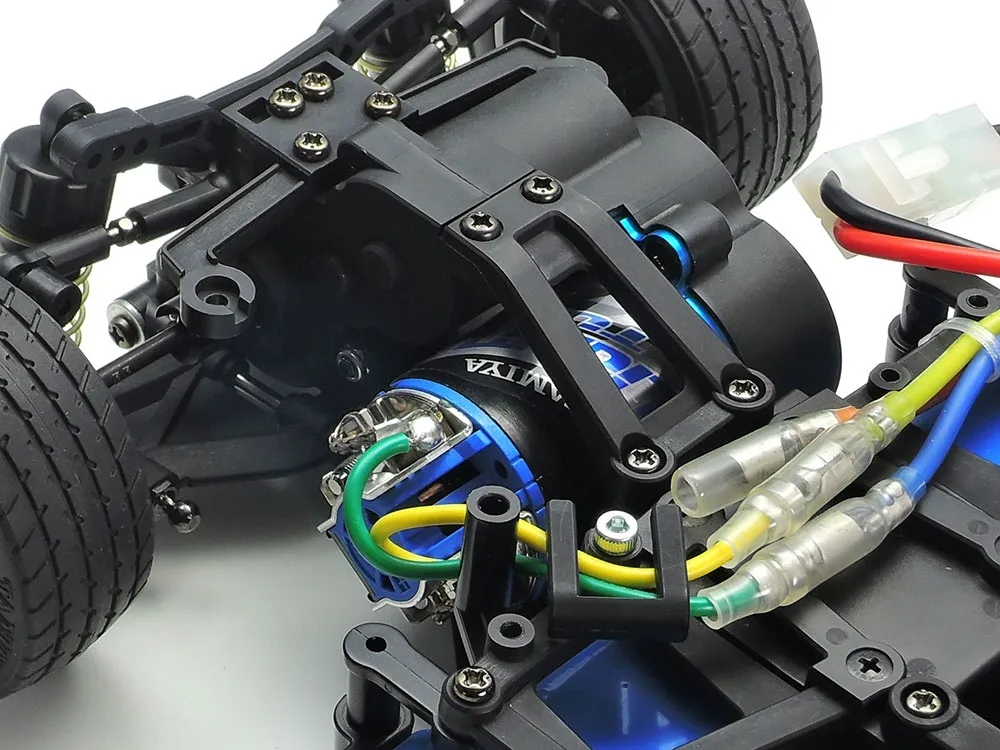

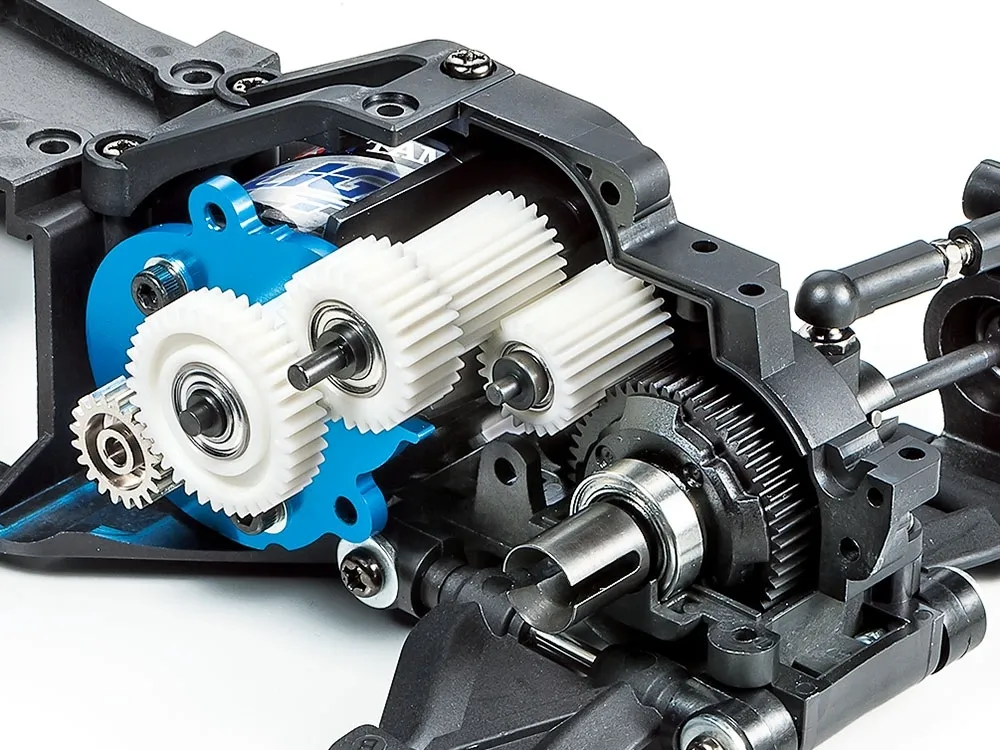

An oil-filled gear differential provides smooth drive, while motor and gearbox are positioned to ensure powerful drive under acceleration.

Featured Components ★M-07 Concept design long suspension arms ★Oil-filled gear differential ★Universal drive shafts ★Turnbuckle upper arms ★Full ball bearings ★Hi-torque servo saver (black) Specifications ★Length: 319mm (in M wheelbase

Specifications

Brand Tamiya
