Tamiya 1/14 Reinert Racing MAN TGS TT-01E (NO ESC)

Tamiya 1/14 Reinert Racing MAN TGS TT-01E (NO ESC)

$209.00

Description

Get behind the wheel of a turbocharged big rig racer with the 1/10, electric Team Reinert Racing MAN TGS 4WD Kit. It comes with a Mabuchi torque-tuned 540 motor, a brushless-compatible TBLE-02S ESC, a highly detailed four-piece polycarbonate body and authentic 2016 FIA European Truck Racing Championship decals. After you custom-paint the body, add your favorite radio, 6-cell NiMH pack and charger and you're all set TT-01 Type E plastic chassis with fiberglass reinforced nylon resin upper deck.

Features:

Chassis: TT-01 Type E, plastic construction with fiberglass
reinforced nylon resin upper deck
Drive: Four wheel with dogbones
Motor: Mabuchi torque tuned 540 brushed, longitudinally mounted
Electronic Speed Control: TBLE-02S
Differentials: Gear type
Shocks: Plastic body friction (not oil filled)
Body: Four piece clear polycarbonate
Wheels: Plastic construction, matte finish chrome
Tires: Radial, diameter 2.7 (70mm), 1.02" (26mm) wide
Steering Mechanism: Bell crank. three piece linkage for sharp steering response
Suspension: Fully independent double wishbone
Caster: Adjustable front only , caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis
Camber: Non-adjustable
Front Bumper: Foam

Includes:

Team Reinert Racing MAN TGS Semi Truck Kit with, Brushed Motor, ESC,
Shocks, Decals, Tires, Wheels, 19T Pinion Gear, 61T Spur Gear,
Instruction Manual

Requirements:

Radio: 2-channel with standard size & torque steering servo
Battery: 7.2V NiMH or NiCd with Standard connector
Battery Charger to match selected battery
Building and track equipment
Assembly

Specifications:

Length: 17.2" (438mm)
Width: 7.5" (190mm)
Height: 8.1" (207mm)
Wheelbase: 10.1" (257mm)
"

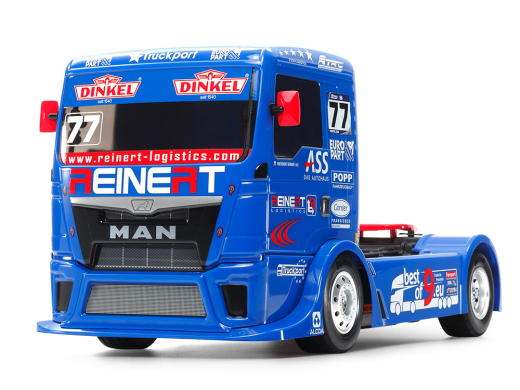

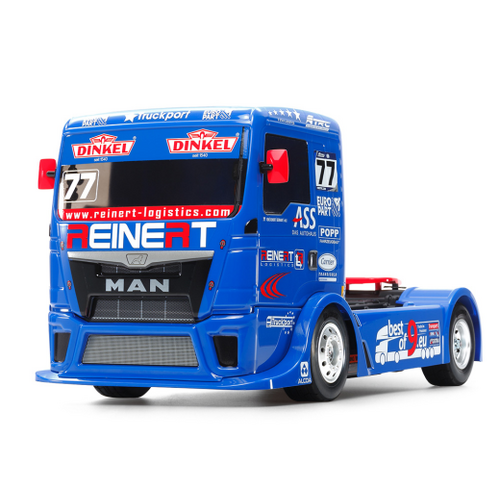

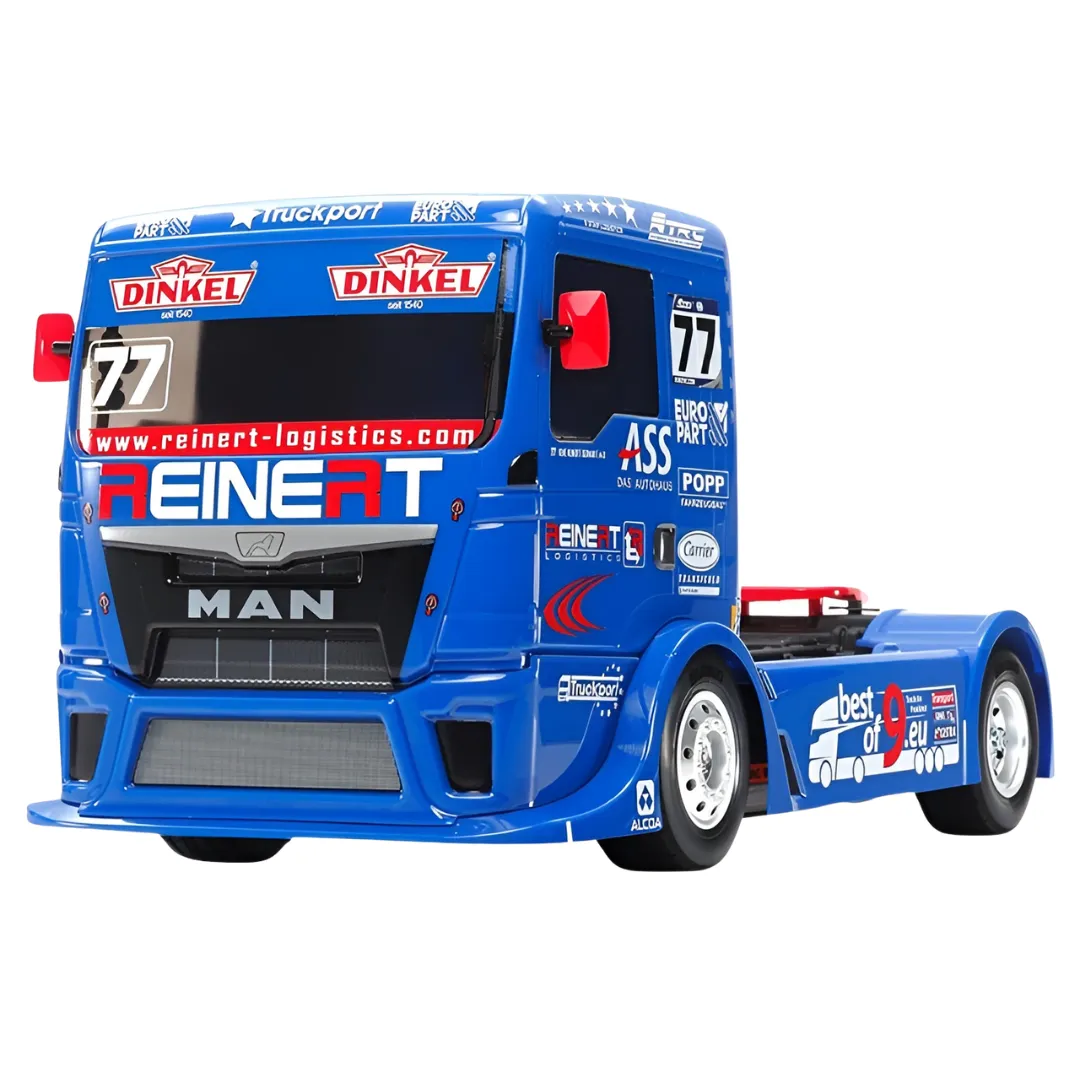

TAMIYA REINERT RACING MAN TGS TT-01E (NO ESC) This is an exciting R/C model assembly kit recreating the Team REINERT Racing MAN TGS truck which starred on the 2016 European truck racing circuit.

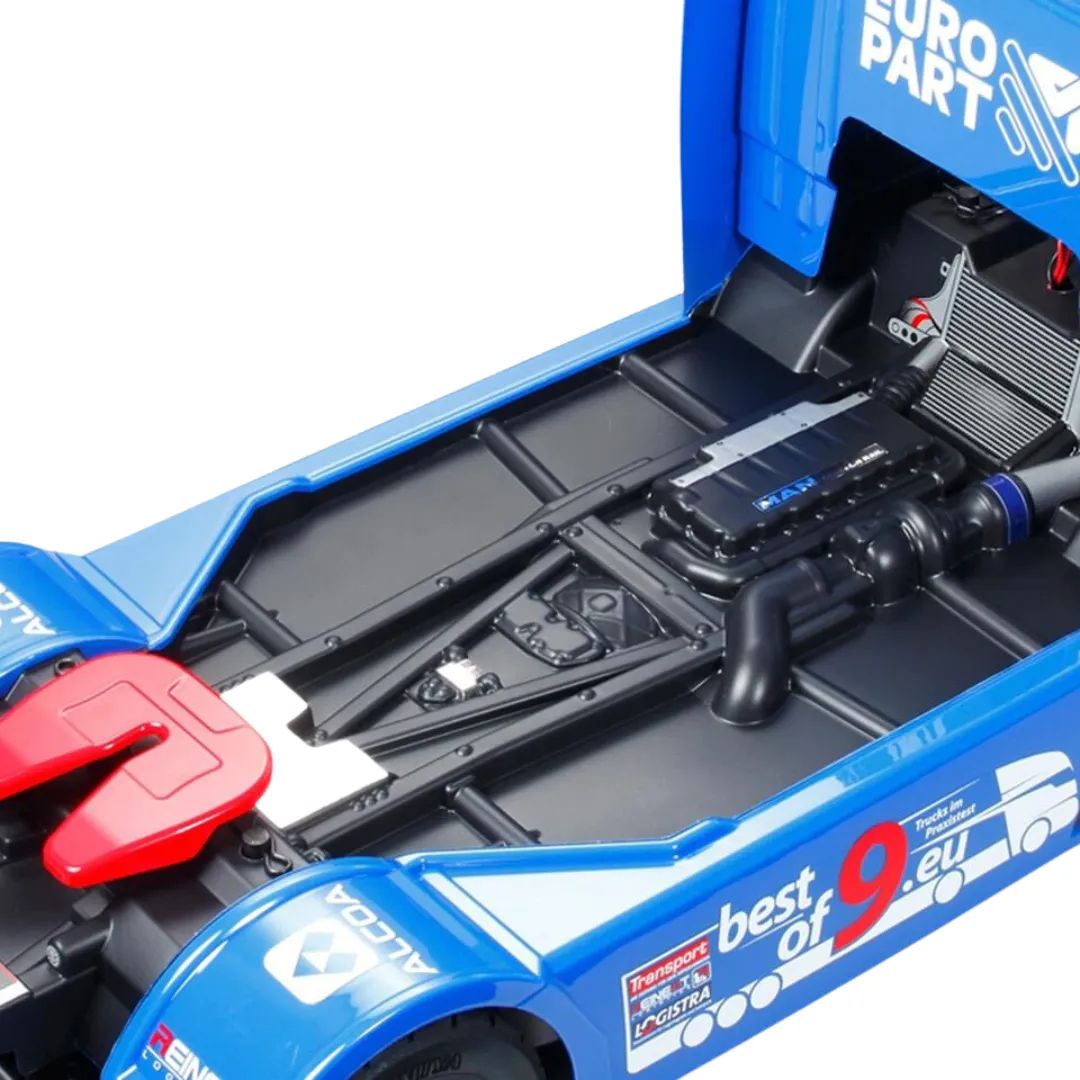

The realistic body is a 4-piece set made from lightweight and durable polycarbonate, with separately molded plastic side mirrors, coupler and rear bumper parts.

Stickers are included in the kit to recreate the truck's numerous sponsor markings and logos, etc.

The TT-01 Type-E chassis is a proven performer, and here is fitted with dedicated racing truck model wheels and tires.

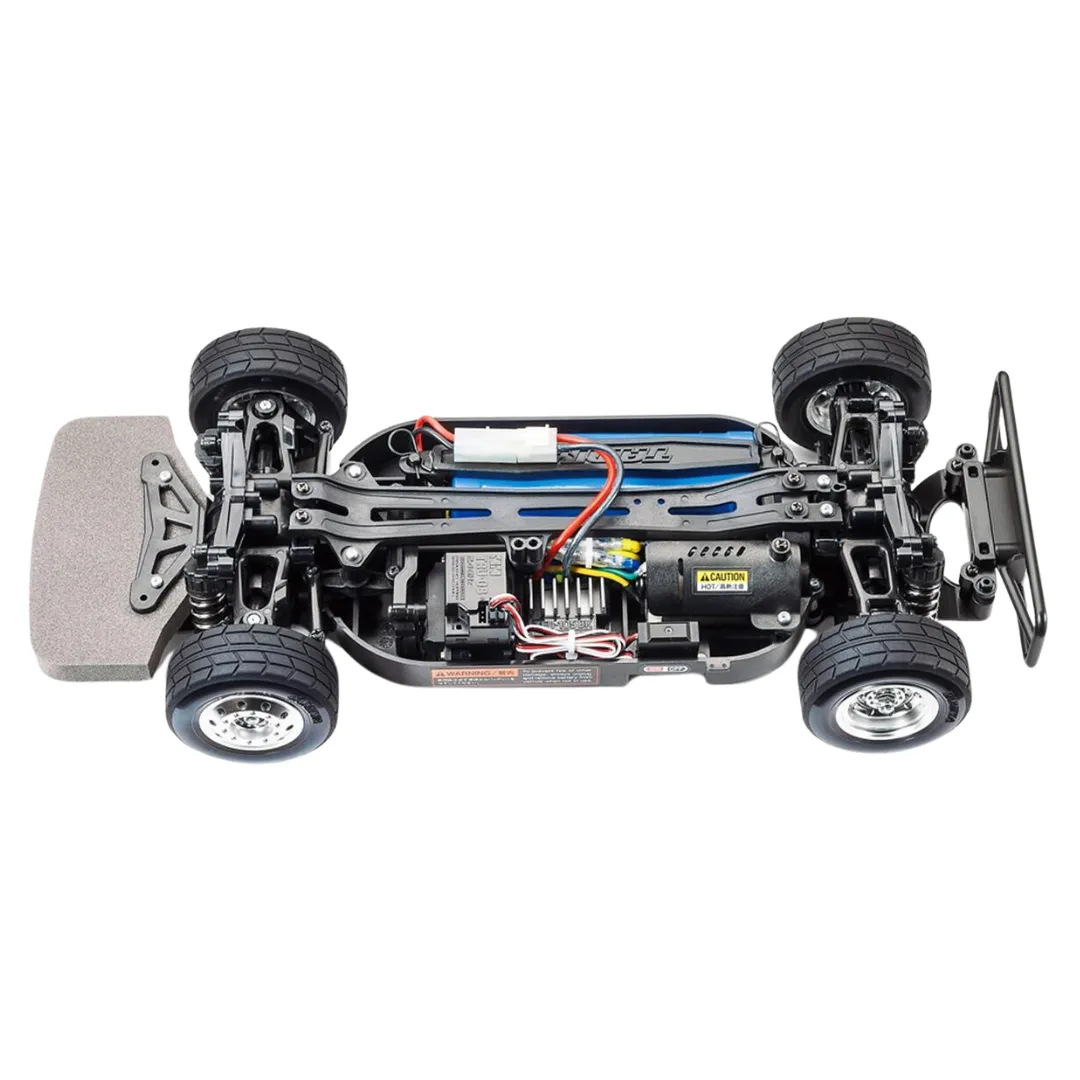

Evolved TT-02 Type E Chassis The bathtub frame of the evolved shaft-driven 4WD TT-01 Type-E has its motor and battery close to the ground for lower center of gravity and optimum balance.

Mounted on the bathtub frame is a fiberglass reinforced nylon upper deck and gear covers improving rigidity, as well as a 3-piece tie rod providing a smoother steering action.

The low center of gravity, great balanced design, 4 wheel double wishbone suspension system, and front and rear differential gears all come together to produce excellent operating ability. 70mm-diameter radial tires are paired with metal plated wheels developed just for this model; the high sidewalls make for forgiving turns. SPECIFICATIONS Adjustable Gear Ratio Yes Bearings Plastic bushing Body Material Polycarbonate Body Stickers Included Chassis Material ABS Plastic Chassis Type TT-01E Construction Type Assembly Kit Differential Type Gear Drive Type 4WD Motor Brushed 540 Type Requires A 2-channel radio, steering servo, ESC, 7.2volt battery & battery charger, and Tamiya PS paint.

Scale 1/10 Suspension 4-wheel fully independent double wishbone Terrain Use On-Road

Specifications

Brand Tamiya
