Tamiya 1/10 XM-01 Pro 4WD Electric Rally Car Chassis Kit

Tamiya 1/10 XM-01 Pro 4WD Electric Rally Car Chassis Kit

$459.00

Description

Pro specification level R/C rally driving now comes to our M-Chassis size vehicle offerings!

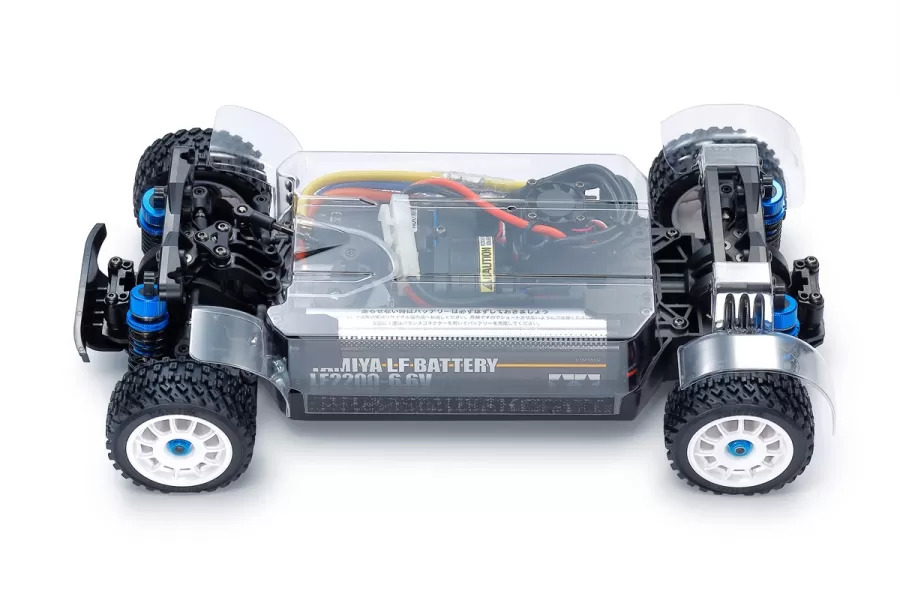

This shaft-driven 4WD chassis assembly kit (M-chassis size) features three types of wheelbases, new suspension components and a polycarbonate chassis cover. Just pick your favorite Tamiya M-chassis size rally body and you’re ready to take on dirt!

Key chassis features:

  • Comes with two 39T differential gears and one 40T differential gear for adjustment of front and rear drive balance.
  • Use 39T gear (w/15T gear) on the front and 40T gear (w/15T gear) on the rear for drive balance bias to front and vice-versa for drive balance bias to rear.
  • Features a longitudinal upright battery pack position in the center-left for optimum balance.

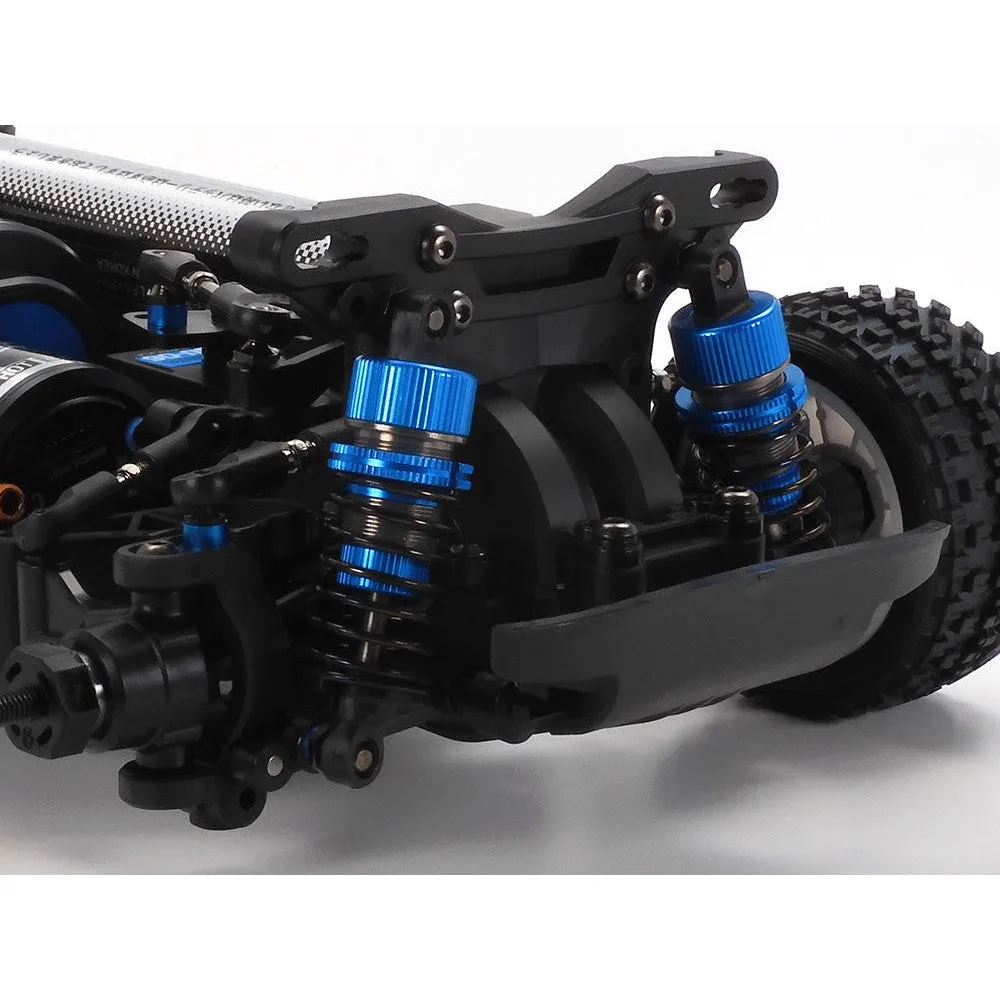

  • Front bumper with skid angle contributes to reduced surface contact. • Aluminum dampers included.
  • M-Chassis 11-spoke racing wheels (Item 51394) are paired with 60D rally block tires (Item 51427).
  • Front and rear universal drive shafts included for optimum drive efficiency.
  • Compatible with center diff setup and separately sold slipper clutch.
  • Select Hop-Up Option parts for the XV-02 PRO chassis kit can be used with the XM-01.
  • Low-profile servo is recommended. (Standard size servo can be used, but it meets the front inside polycarbonate cover.)

Required to complete:

  • Compatible 2ch+ Transmitter and Receiver
  • Compatible 7.2V NiMH or 7.4V LiPo Battery and Charger
  • 540 sized motor and compatible ESC (Electronic Speed Controller)
  • M-Chassis size body shell

*Please Note: Battery shown in image is for design and demonstration purposes and not included in this product

(THIS IS A PRE-ORDER ITEM)

Specifications

Brand Tamiya
