Tamiya 1/10 Toyota GAZOO Racing WRT/GR Yaris Rally 1 Hybrid (TT-02) 4WD RC Car

Tamiya 1/10 Toyota GAZOO Racing WRT/GR Yaris Rally 1 Hybrid (TT-02) 4WD RC Car

$209.00

Description

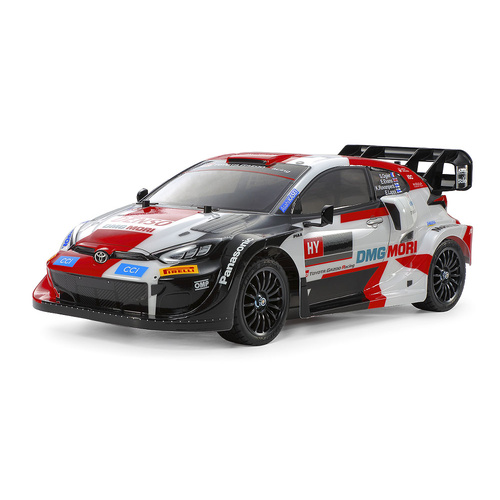

This R/C model assembly kit depicts the GR Yaris Rally1 Hybrid, which was developed by Toyota to take part in 2022 global rally races. The souped up form of this rally car is recreated expertly by a polycarbonate body, and the model is based upon the shaft-driven 4WD TT-02 chassis. Plentiful stickers are included to decorate the car, as are gun metal color fin spoke wheels and racing radial tires.

TT-02: Adaptable, balanced shaft driven 4WD

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Dark gun metal color fin-spoke wheels use racing radial tires.

Specifications

  • Length: 416mm, width: 190mm, height: 146mm
  • Wheelbase: 257mm
  • Tire width/diameter: 26/66mm (front & rear)
  • Bathtub-type frame
  • Shaft-driven 4WD
  • Front/rear 4-bevel plastic differentials
  • 3-piece steering tie-rod
  • 4-wheel double wishbone suspension
  • Front/rear friction dampers
  • Gear ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
  • Type 540 motor
  • Electronic Speed Controller (ESC) is sold separately.

What you Need:

  • 2-channel R/C system w/ESC
  • R6/AA/UM3 batteries for transmitter
  • Battery pack & charger

Specifications

Brand Tamiya
