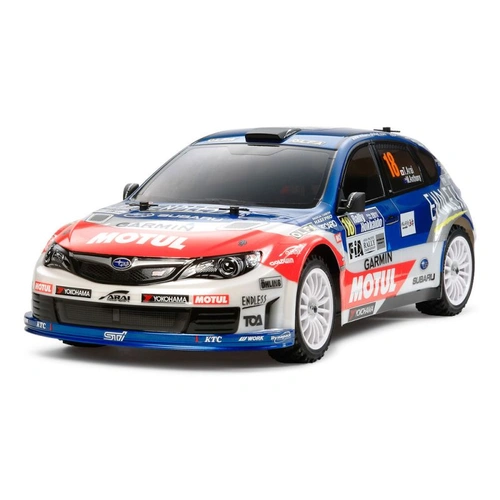

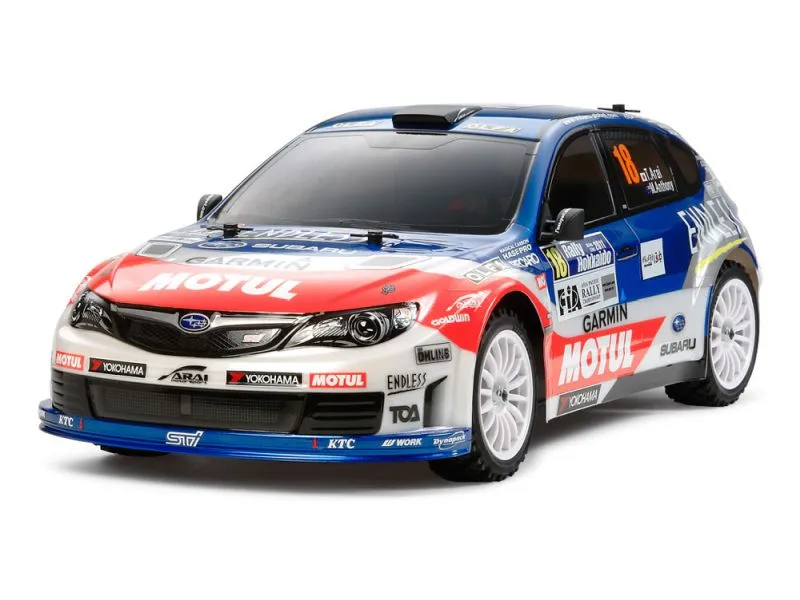

Tamiya 1/10 Subaru Impreza WRX WRX STi - XV-01 Team Arai 58528

Hokkaido Winner
This 1/10 scale R/C assembly kit reproduces the Subaru Impreza WRX STI Team Arai which took victory at Rd.5 Rally Hokkaido during the 2011 Asia-Pacific Rally Championship. The sporty form of the Impreza has been realistically reproduced by the polycarbonate body and the roof intake and square-shaped side mirrors are depicted with separate parts for a sharp finish. The distinctive markings of the race car can be easily depicted with the included stickers. In addition, rally block tires with inner sponges are matched with 16-spoke wheels to allow you to experience dynamic R/C rally driving.

Rally-Ready XV-01 Chassis
The XV-01 chassis offers exciting R/C driving action on both tarmac and gravel surfaces. It features a front-motor, belt-driven 4WD layout with the gearboxes, drive belt, battery, and R/C unit areas protected by covers against dirt and debris. Holes in the bottom of the chassis further help remove any debris which manages to get onboard to ensure unhindered off-road performance. In addition, detachable wheel well liners help prevent mud and gravel intrusion. Gear differential units enable customization with different viscosities of differential oils.

Front double wishbone suspension with CVA shock units and long tie-rod steering system.

Front and rear wheels can be fitted with the included well liners to protect against dirt and debris.

Rear double wishbone suspension features reversible-type arms and separate front suspension mounts.

R/C units are installed on the right side of the chassis, and their covers are detachable.

A hatch on the underside of the chassis enables quick access to the battery and R/C unit connectors.

Box-like main frame incorporates covers to provide protection against dirt and debris.

• Length: 434mm, Width: 188mm, Height: 150mm
• Wheelbase: 257mm
• Monocoque Chassis Frame
• Belt-Driven 4WD
• F/R Gear Differentials
• 3-Piece Steering Tie-Rod
• 4-Wheel Double Wishbone Suspension
• CVA Shock Units
• Gear Ratio 8.04:1 (When used with kit-standard 68T spur and 22T pinion gears)
• Full Ball Bearings
• Type 540 Motor
