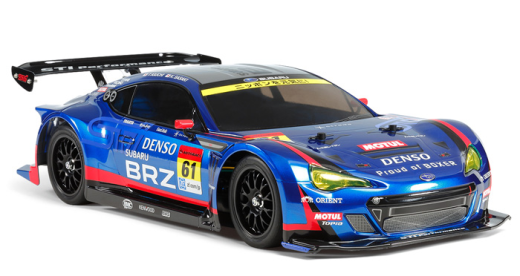

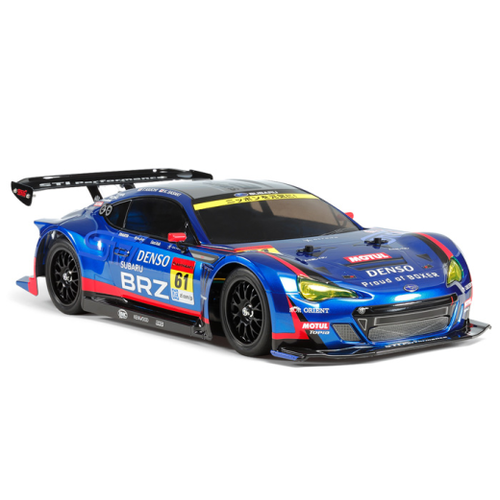

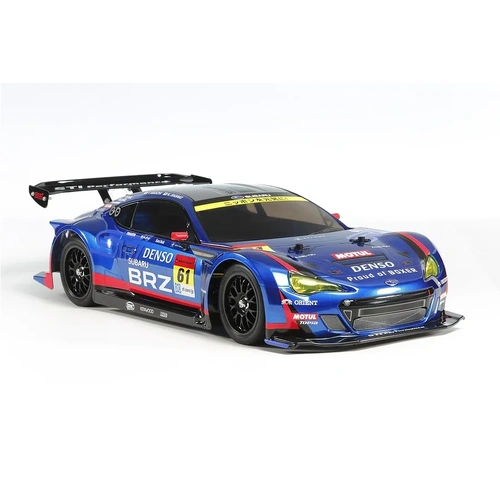

Tamiya 1/10 Subaru BRZ R&D Sport 2014 Rd.2 Fuji Kit 58607

Tamiya 1/10 Subaru BRZ R&D Sport 2014 Rd.2 Fuji Kit 58607

$219.00

Description

The latest model to appear in the expanding TT-02 chassis line-up is this version of the R&D Sport-run Subaru BRZ, a car entered in the GT300 class of the Japanese Super GT series. While the car retains the general atmosphere of the road-going BRZ, it has been significantly modified for the racing series, with a racy wide and low form. Subaru's motorsports arm STI tuned the 2-liter 4-cylinder boxer, which has an output of 350ps and impressive torque of 45kgf¢m. The car enjoyed positive progress in the 2014 season with a number of promising qualifying performances leading to improved results later in the year. This model recreates the car as it appeared in Round 2 of the season in Fuji.

FEATURES:

Chassis: TT-02 ABS resin bathtub type minimizes contact with the road
upright assembly can be changed to give chassis an extra 4mm of
travel for Rally racing
Drive: Four wheel, shaft driven, with dogbones
Motor: Tamiya Torque Tuned 540 brushed with aluminum heat sink
Electronic Speed Control: Tamiya TBLE02S brushless compatible
Differential: Gear type
Wheels: Nylon construction, black in color 12mm hex, 1.02 (26mm) wide 2.00" (51mm) diameter
Tires: Slick rubber with foam inserts
Suspension: Fully independent double wishbone
Shocks: Plastic body, friction, not oil filled
Body: Clear polycarbonate
Camber: Non-adjustable, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle
Caster: Adjustable, caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis
Steering: Bellcrank type
Bumper: Front, urethane

INCLUDES:

Subaru BRZ R&D Sport with 540 Brushed Motor, Tires,
Wheels, Clear Body, Foam Inserts, ESC, Decals and Instructions

REQUIREMENTS:

Radio: 2-channel with high speed steering servo
Battery: 7.2V NiMH
Battery Charger: To match selected battery
Building and track equipment

SPECIFICATIONS:

Specs such as finished size of chassis not provided by manufacturer
Body
Length: 16.6" (421mm)
Width: 7.5" (190mm)
Height: 3.8" (98mm)
"

2014 Subaru BRZ R&D Sport This radio control model recreates the R&D Sport-run Subaru BRZ, a car entered in the GT300 class of the Japanese Super GT series.

While the car retains the general atmosphere of the road-going BRZ, it has been significantly modified for the racing series, with a racy wide and low form.

Subaru's motorsports arm STI tuned the 2-litre 4-cylinder boxer, which has an output of 350ps and impressive torque of 45kgf·m.

The car enjoyed positive progress in the 2014 season, with a number of promising qualifying performances leading to improved results later in the year.

This model recreates the car as it appeared in Round 2 of the season in Fuji.

Separate parts are included in the kit to recreate the side mirrors and rear wing, and markings are provided to recreate BRZ and sponsor logos, as well as car numbers. 4WD Shaft-Driven TT-02 Chassis The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability.

In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes.

It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios.

It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

Black mesh-type rims are paired with racing slick tyres.

The Gearbox cover can be removed by simply loosening screws on the frame.

Resin ball links in the steering linkage joints make for smooth, comfortable motion.

The Wheel hubs are designed to look like brake discs. A case is included to keep the all-important receiver protected from dust and dirt.

The Motor cover includes a removable cooling duct (not attached in above image).

FeaturesHighly Detailed 1/10 BRZ R&D Sport clear polycarbonate body shell.

Super Tough Bathtub Type Chassis.

Balance Longitudinal Chassis Layout.

Adjustable Wheelbase.

Shaft-Driven 4WD System.

Front/Rear 4 Bevel Resin Differentials. 3-Piece Steering Tie-Rod System for Superior Handling. 4-Wheel Double Wishbone Suspension.

Front/Rear Friction Dampers.

Powerful Brushed 540 motor.

SpecificationsScale: 1/10.

Length: 442mm (17.4").

Width: 191mm (7.51").

Height: 115mm (4.52").

Wheelbase: 257mm (10.1").

Body Shell: Clear Polycarbonate.

Chassis Type: TT-02.

Construction Type: Kit.

Motor: 540-Brushed Type.

Electronic Speed Control (ESC): Included.

Wheel Drive: 4WD.

Gear Ratio: 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions).

Shocks: Friction Front & Rear.

Suspension: Fully independent double wishbone.

Terrain Use: On Road.

Included items Description. QTY. 1/10 TT-02 Subaru BRZ R&D Sport 2014 Electric On Road RC Car Kit. 1.

Decals.

Set.

Product Manual. 1.

Required Items7.2V NiMH Battery & Compatible Charger .

Standard Sized Servo . 2Ch Transmitter & Receiver .

Tamiya PS Paint .

Pleas

Specifications

Brand Tamiya
