Tamiya 1/10 RC Squash Van (GF-02 Chassis)

Description

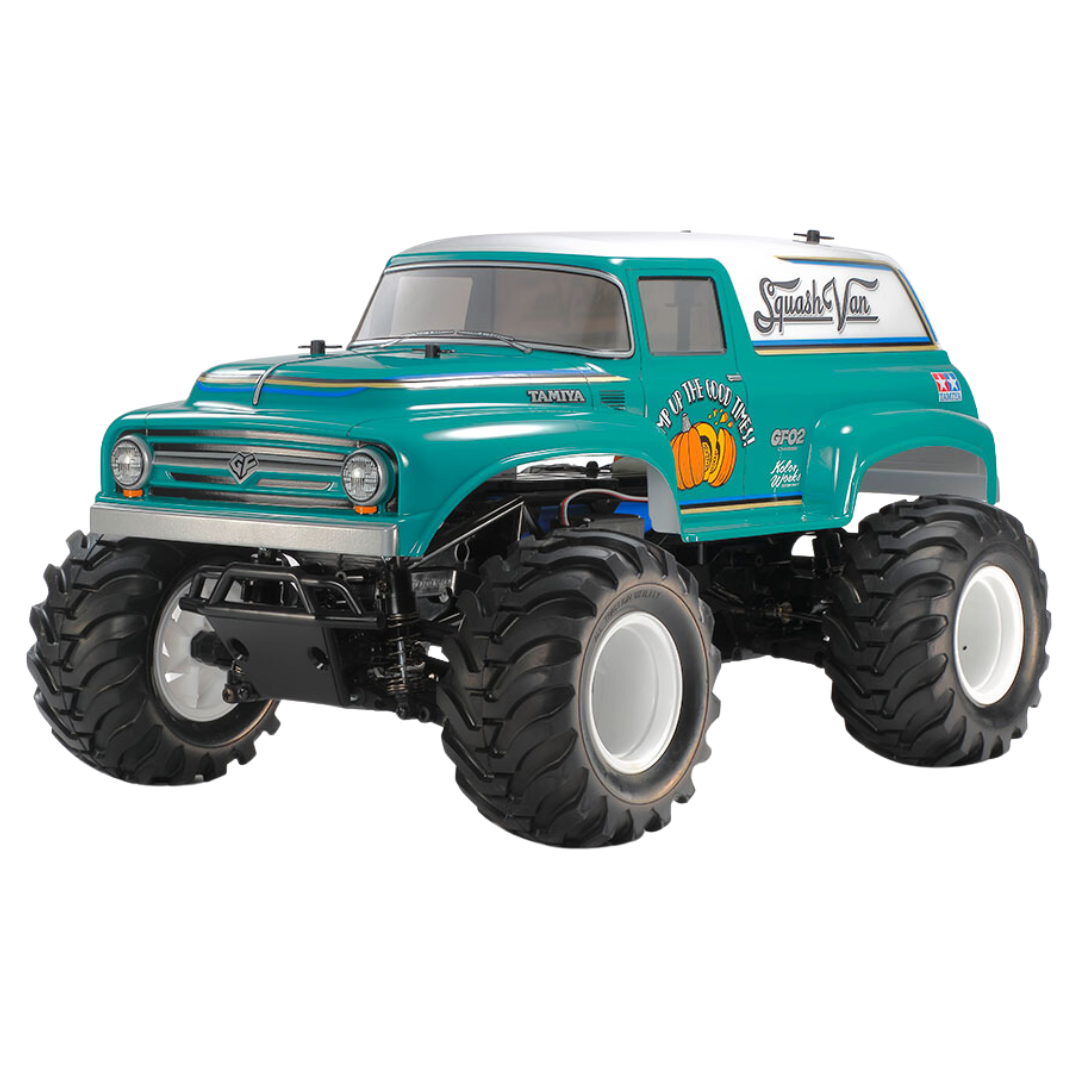

The Squash Van is our latest fun-to-drive big tire vehicle that is inspired by 1950s American panel vans. The polycarbonate body shell sits on top of the new gear-driven 4WD GF-02 chassis, which is a variant of the comical GF-01. While the GF-01 chassis features a comical design, the GF- 02 chassis employs a more realistic wheelbase and a frame with ladder and pipe motifs.

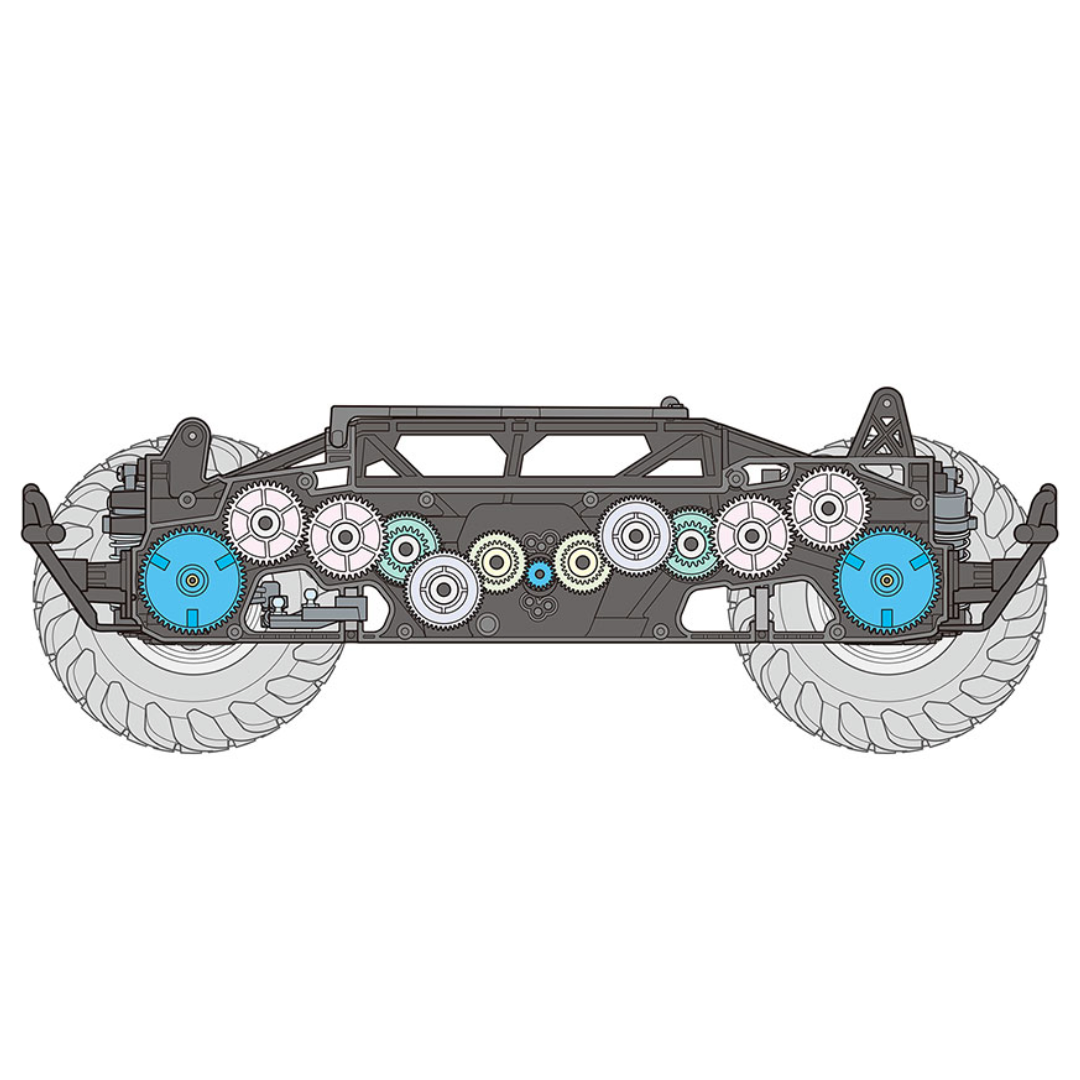

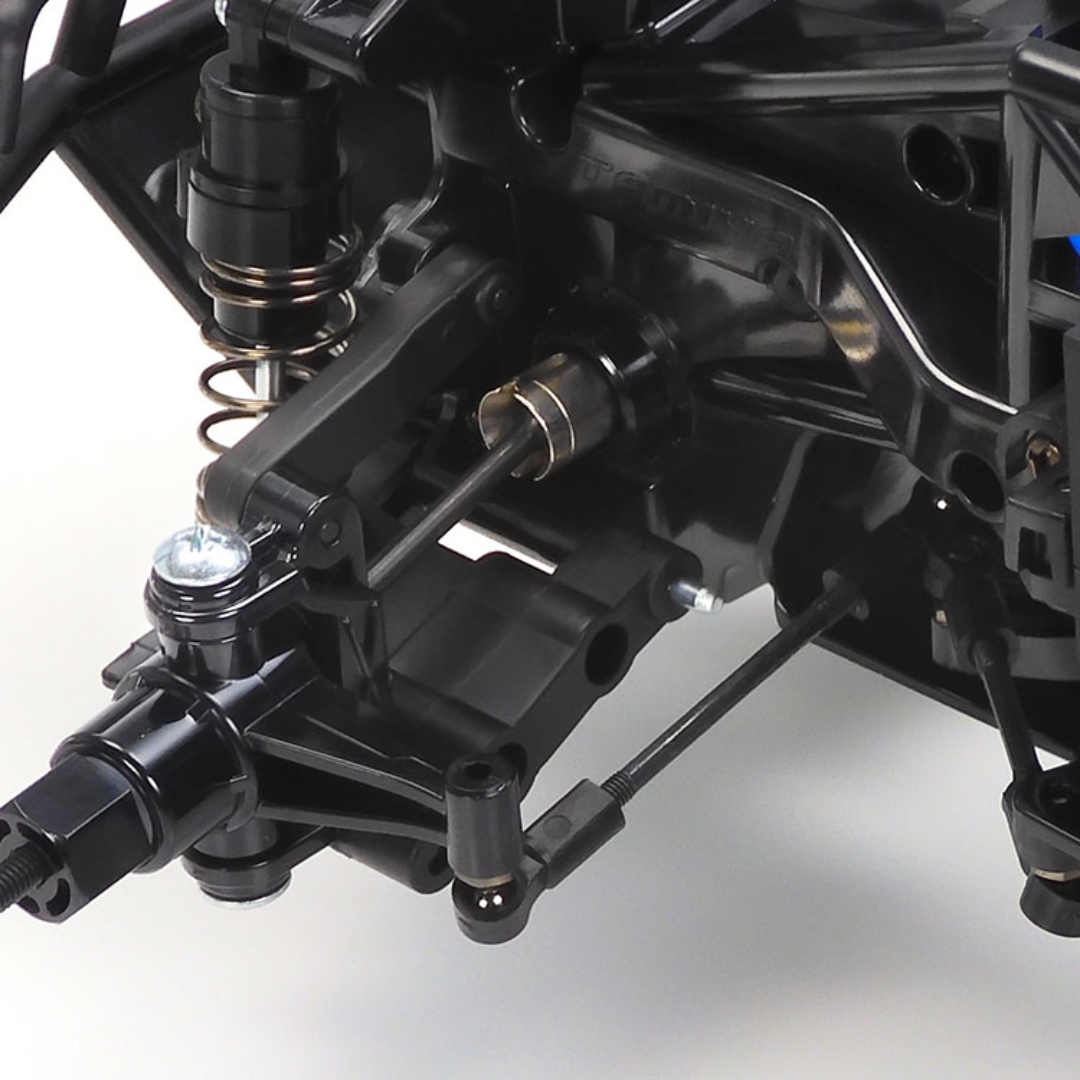

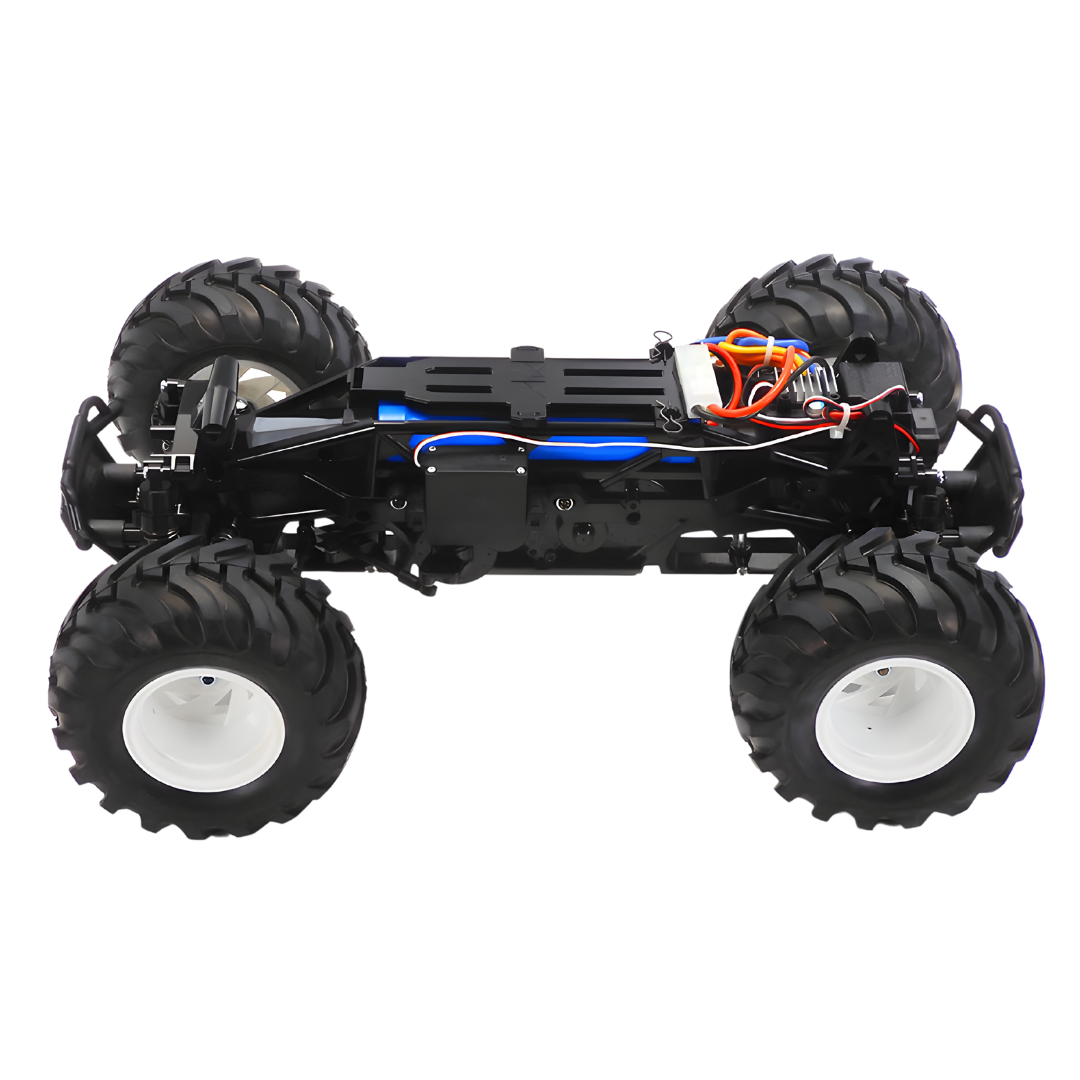

GF-02 chassisThe gear-driven 4WD GF-02 chassis features its motor in a low, central position in the lightweight, durable monocoque frame, and transmits power to front and rear via gears. The long wheelbase and wide tread setup ensure stable off-road performance. The slim frame features ladder/pipe motifs and features integrated sealed gearboxes which help keep stones out. Front and rear gear differentials allow smooth cornering, while separately sold pinion gears offer a choice from three types of gear ratios, and a motor guard enhances reliability off-road. The 4-wheel double wishbone suspension employs four friction dampers, and the steering servo is positioned on the left with identical-length tie-rods.

1/10 R/C assembly kit. Wheelbase: 267 mm
Front/Rear tread: F: 223mm / R: 221mm.
V-Block pattern Block Tires 122.8mm diameter.
Gear Ratios: 18T (18.03:1), 20T (16.23:1), 17T (19.09:1) Kit is supplied with 18 tooth pinion gear.
4WS-four-wheel steering compatible with separately sold third-party 4WS function radio.
Body post position same as long wheelbase CC-02 chassis.
Includes 540 brushed type motor.
Required to complete: ESC, 2-channel radio, steering servo, 7.2-7.4volt battery with compatible charger, and Tamiya PS paint.

Specifications

Adjustable Gear Ratio: Yes
Bearings: Plastic bushing
Body Material: Polycarbonate
Body Stickers: Included
Chassis Material: ABS Plastic
Chassis Type: GF-02
Construction Type: Assembly Kit
Differential Type: Gear
Drive Type: 4WD
Motor: 540-brushed type
Required To Complete: 2-channel radio, steering servo, 7.2-7.4volt battery & battery charger, and Tamiya PS paint.
Scale: 1/10
Shock Damper: Friction type
Suspension: Fully Independent Double Wishbone
Terrain Use: Multi-Purpose
