Tamiya 1/10 RC AU Tom’s GR Toyota Supra (TT-02 Chassis)

Dramatic Champion

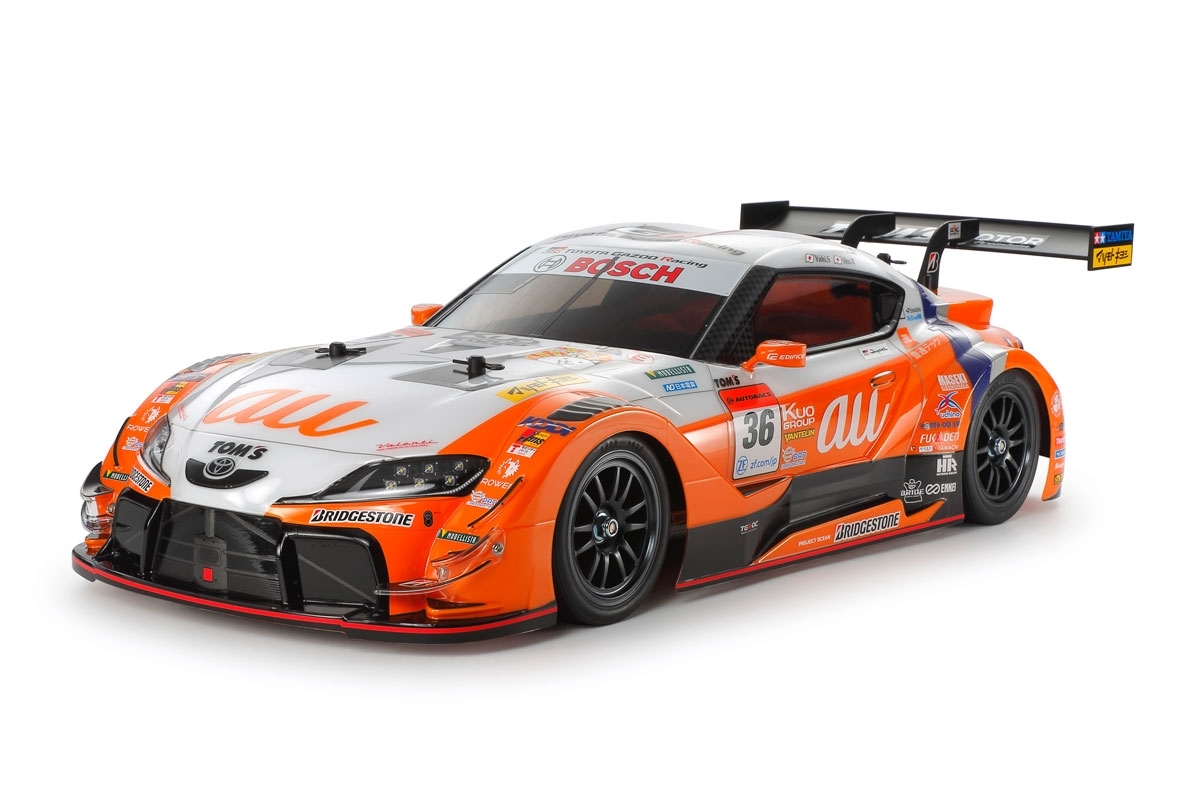

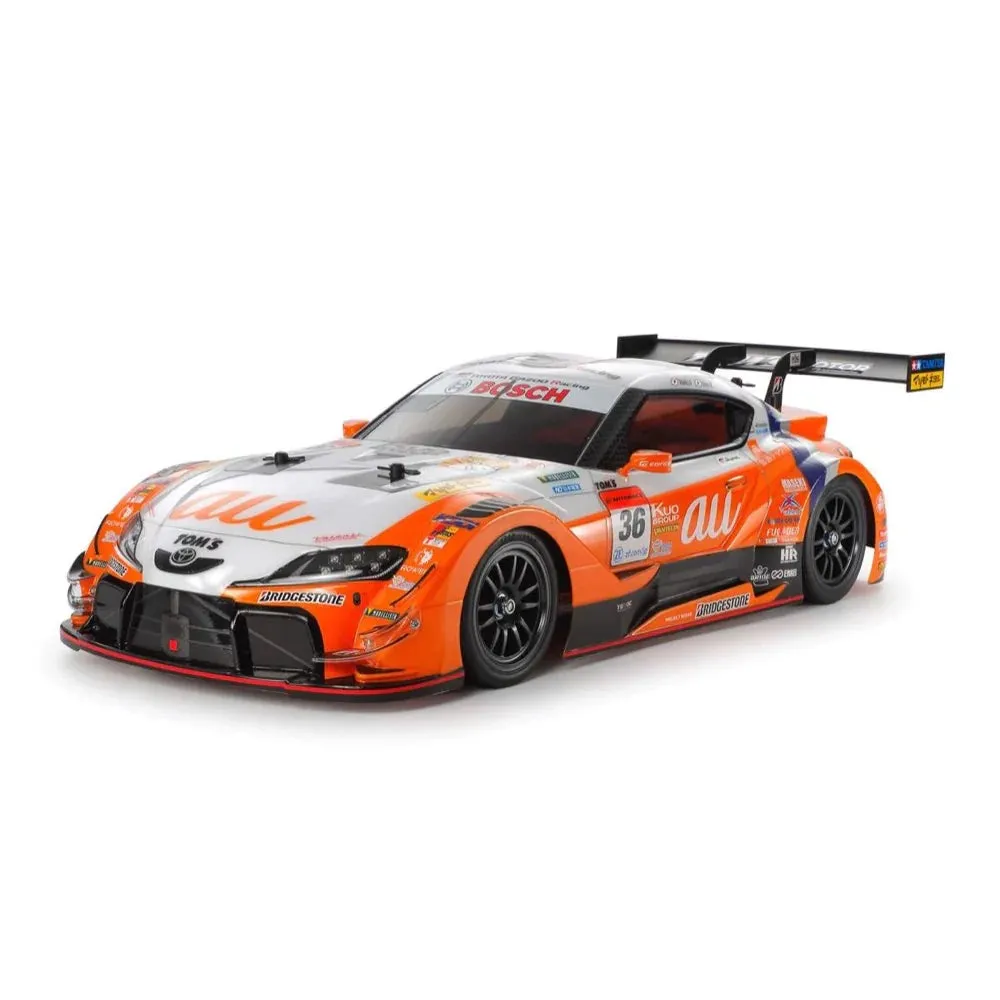

This R/C model assembly kit depicts the au TOM's GR Supra which staged an astonishing comeback to take the Super GT series GT500 class championship with victory from fourth on the grid in the season-ending race in Fuji. A polycarbonate body artfully captures the car's form, including bulging overfenders and complex side sections, with separate polycarbonate canards and light cases, plus ABS wing and side mirrors.

TT-02: Adaptable, balanced shaft driven 4WD

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Gun metal color 12-spoke wheels use slick tires.

Specifications

• Length: 466mm, width: 188mm, height: 125mm
• Wheelbase: 257mm
• Tire width/diameter: 27/67mm (front & rear)
• Bathtub-type frame
• Shaft-driven 4WD
• Front/rear 4-bevel plastic differentials
• 3-piece steering tie-rod
• 4-wheel double wishbone suspension
• Front/rear friction dampers
• Gear ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
• Type 540 motor
• Electronic Speed Controller (ESC) is sold separately.

Separately Required Items

• 2-channel R/C system w/ESC
• R6/AA/UM3 batteries for transmitter
• Battery pack & charger

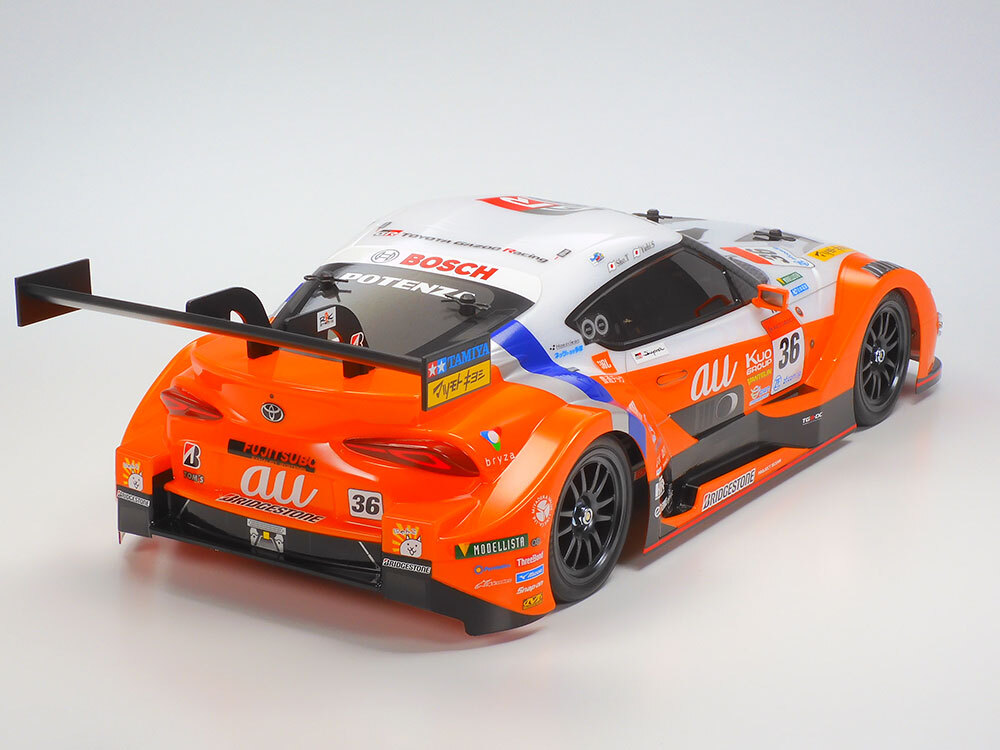

★Take a look at the rear of the model, the powerful GT car form unerringly captured by the kit's polycarbonate body.

★Headlight cases and dual canards on each side of the nose are separately molded polycarbonate parts for even more detail.

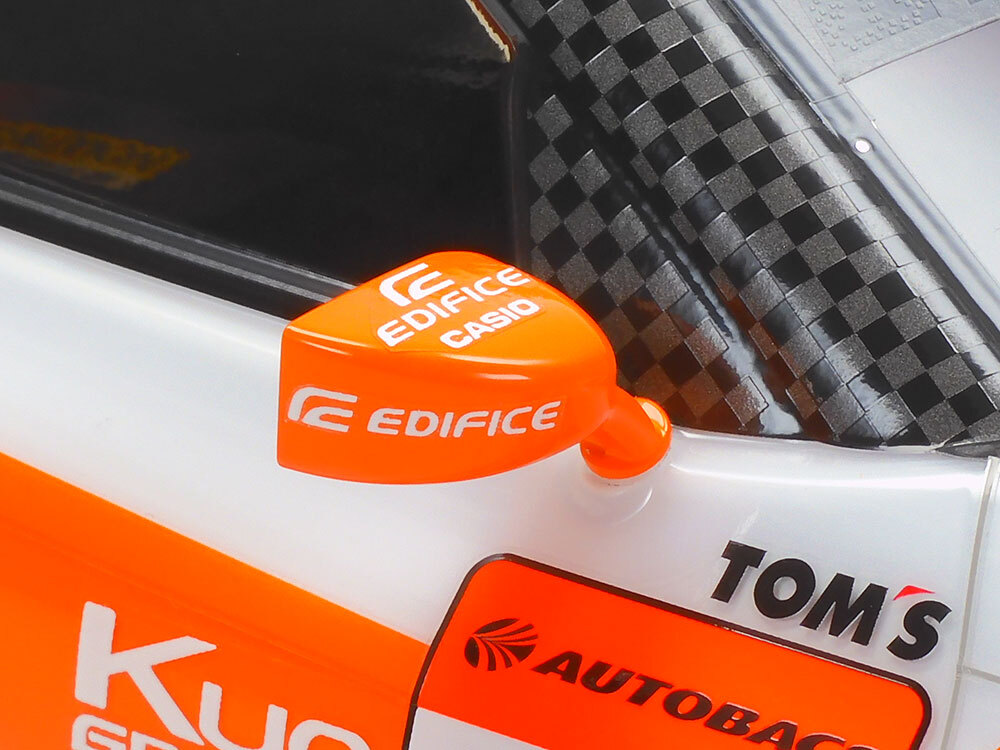

★Side mirrors are molded separately in plastic, and are dedicated parts developed for this model.

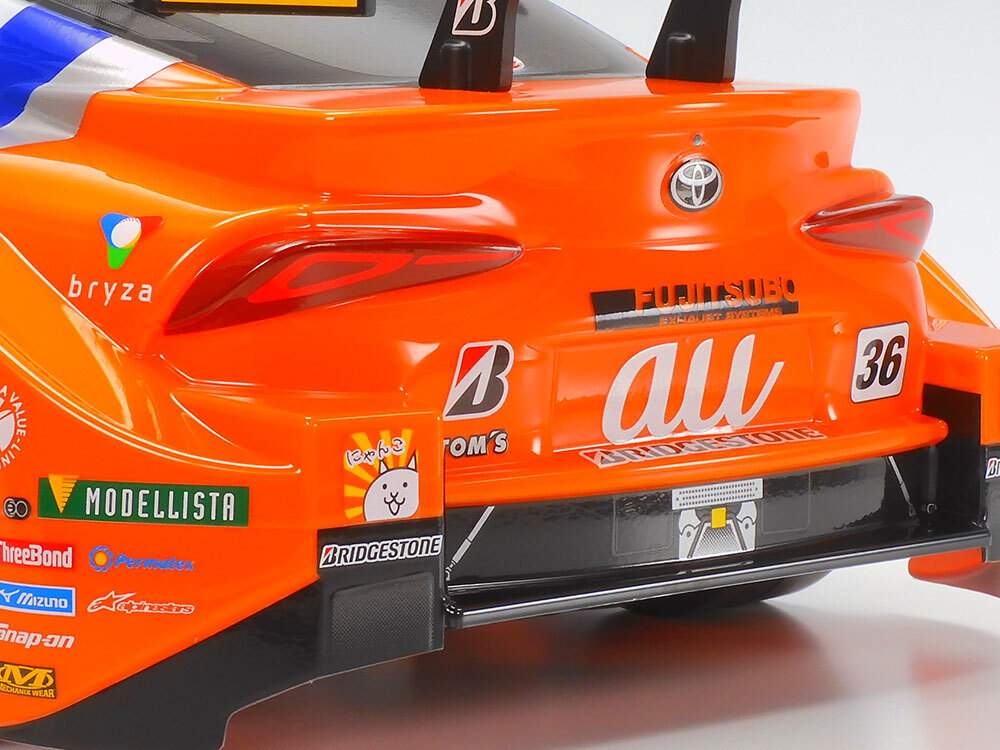

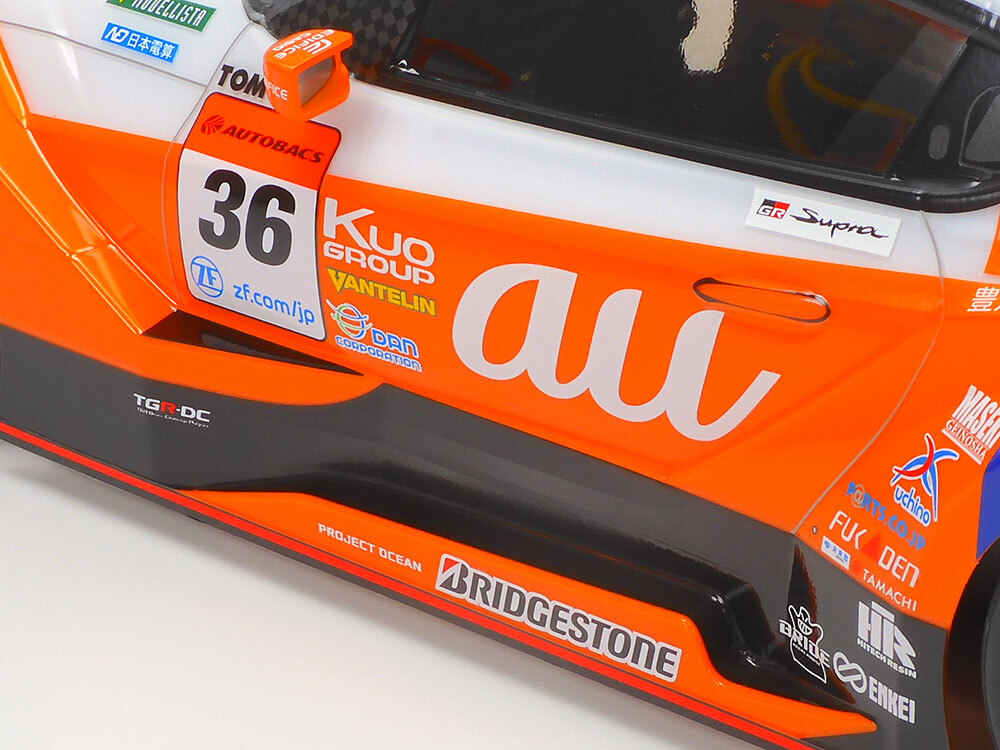

★Left: Complex side sections with "lateral duct" detailing are depicted in style. ★Right: The rear of the body features a distinctive flat trunk and racy diffuser.

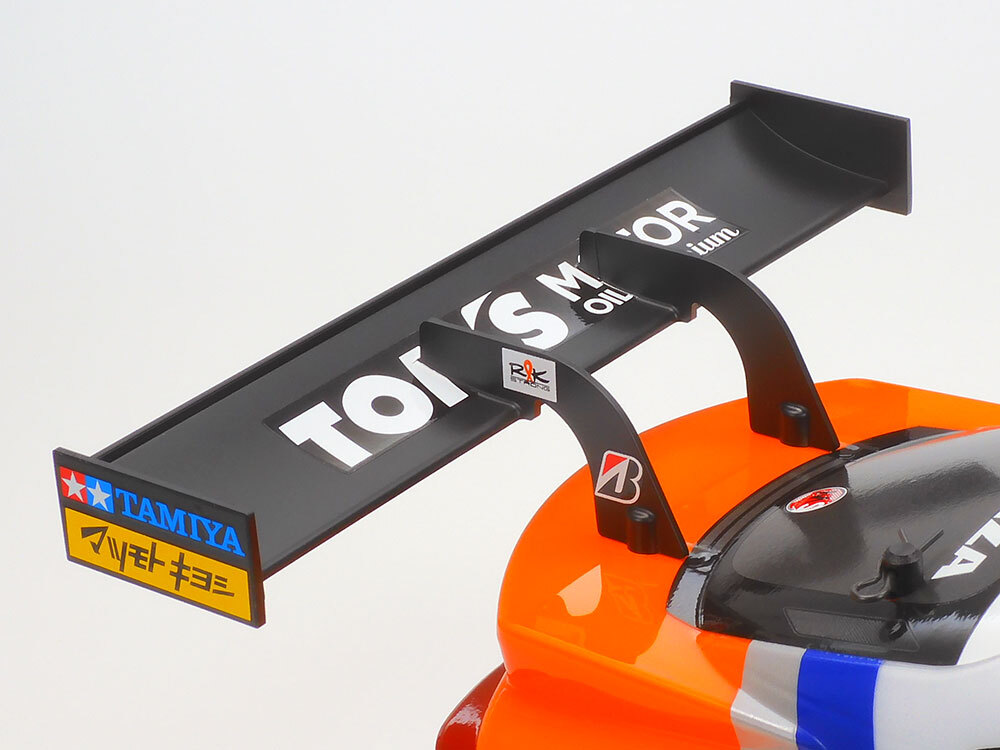

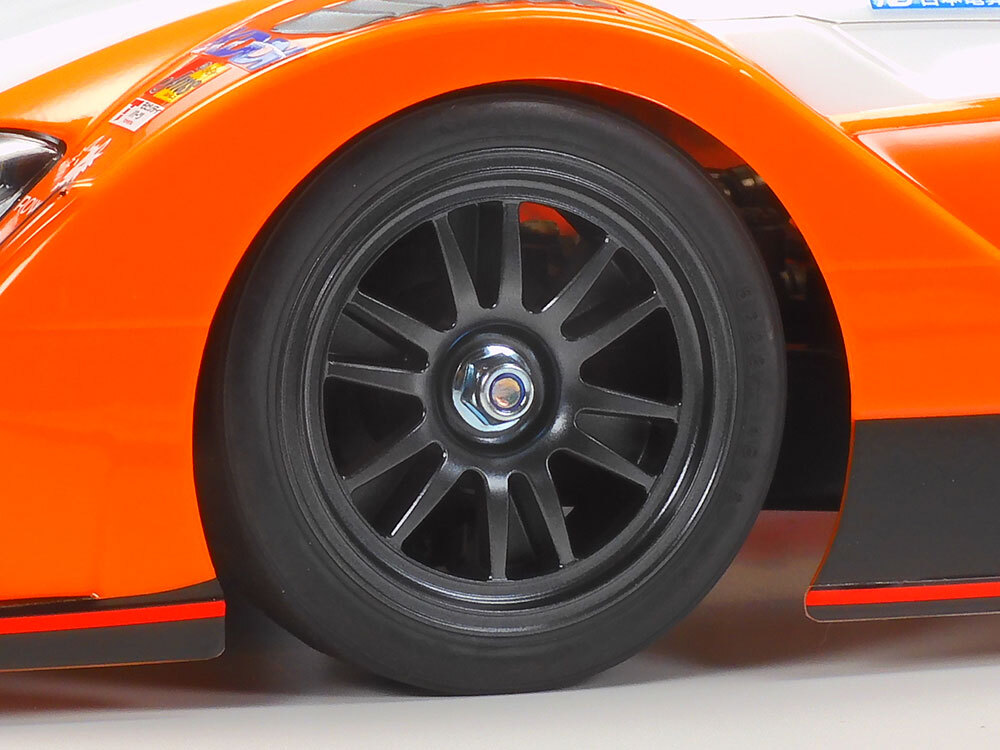

★Left: The rear wing is recreated by a single part molded in ABS plastic. ★Right: 12-spoke wheels are molded in gun metal color, and paired with racing slicks.

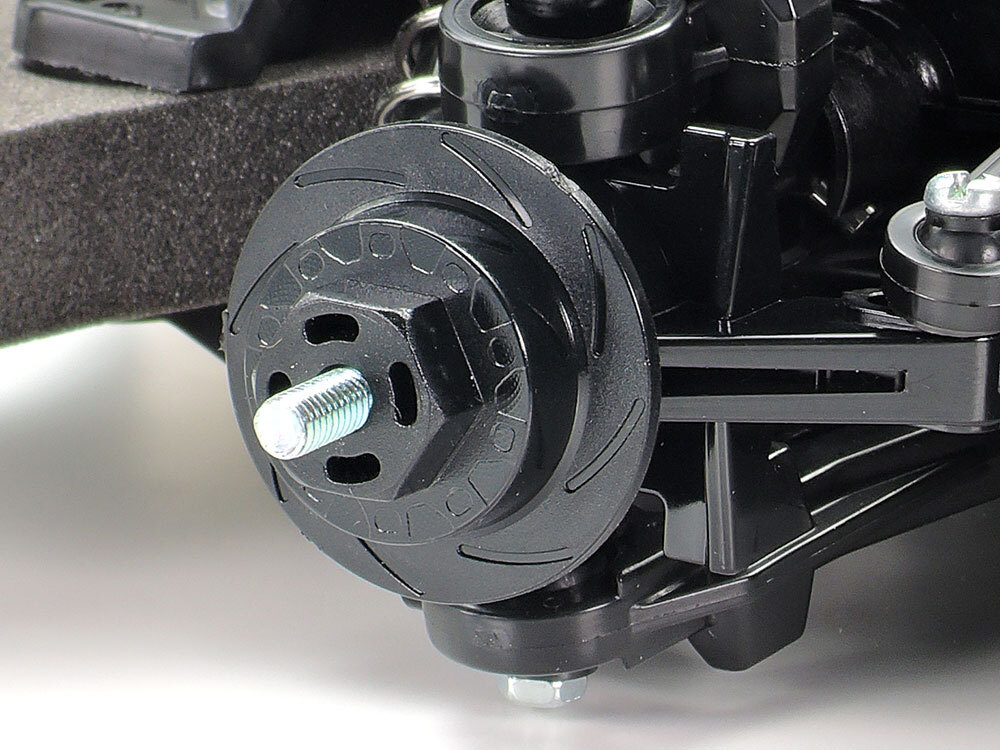

★Left: Resin ball links in the steering linkage joints make for smooth, comfortable motion. ★Right: Wheel hubs are shaped to look like brake discs.

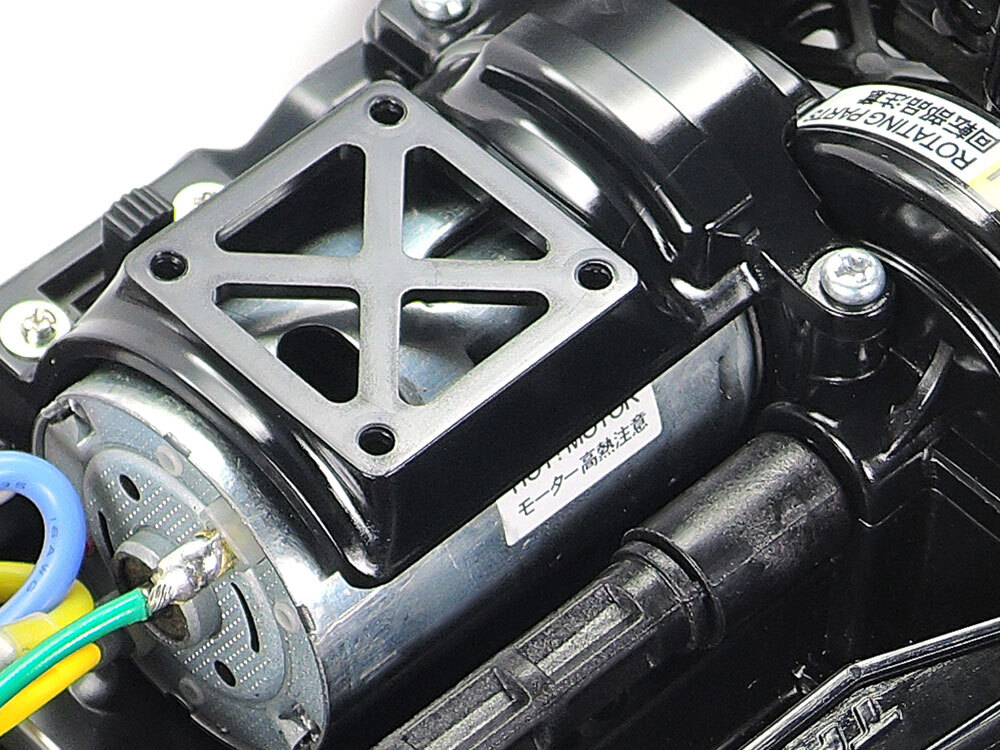

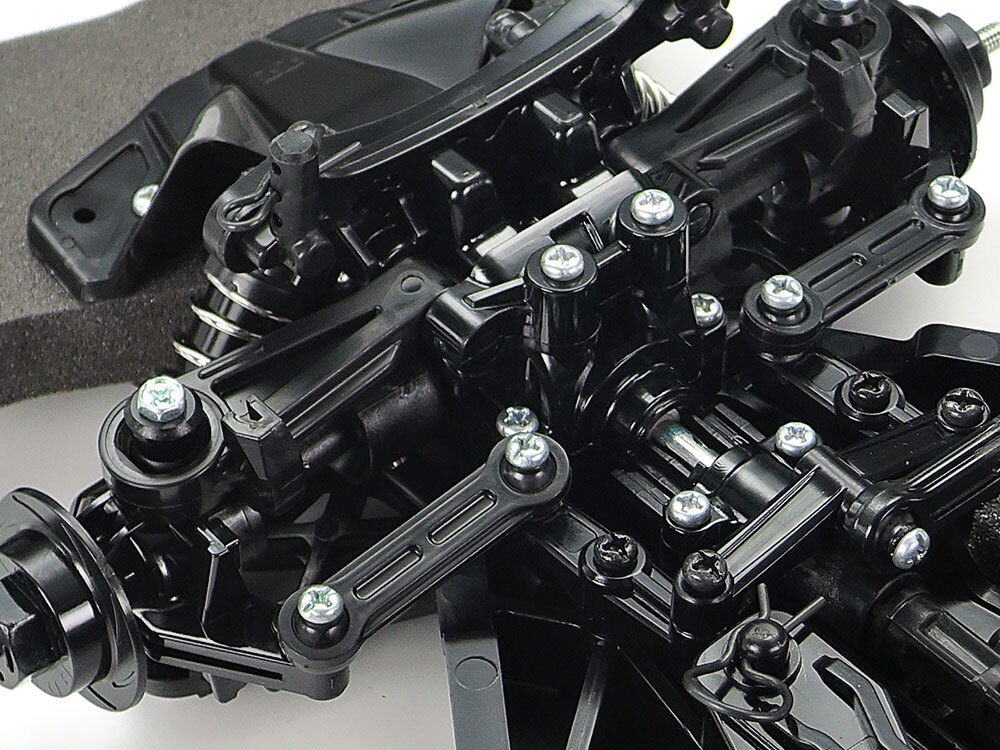

★Left: Motor cover includes removable cooling duct (not attached in image). ★Right: This image gives a closer look at the rear double-wishbone suspension with friction dampers.
