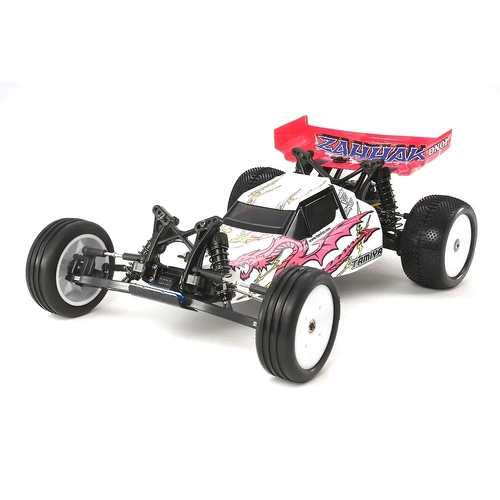

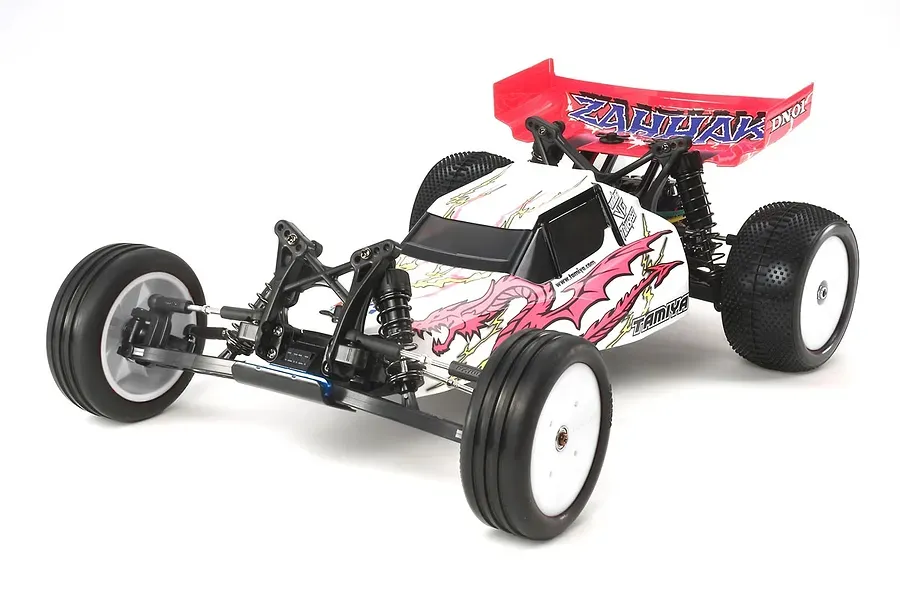

Tamiya 1/10 RC 2WD Buggy Zahhak Kit - DN01 58477

Tamiya is proud to release this "Base Model" 2WD buggy which is based on the popular TRF201 (Item 42167), which was driven by TRF team driver Lee Martin to victory at the recent 2WD Off Road European Championships. The chassis layout features a longitudinally-mounted battery with R/C units placed on either side for optimum balance. It is designed to offer low center gravity with plenty of ground clearance. The motor is mounted at the rear to maximize traction and acceleration. This machine is perfect for drivers who are just getting into the off-road R/C scene and can serve as a great base for later upgrades.Kit - requires all electronics separately to complete

The Pure Thrill of 2WD! This is a 1/10 scale R/C assembly kit of the Zahhak, a 2WD buggy which was developed from the expert-level TRF201 buggy.

The chassis features the same basic layout as the TRF201, including a longitudinal battery position, 4-wheel double wishbone suspension with long-span suspension arms, and a compact rear-mounted gearbox.

In addition, the kit comes with CVA shock units and separated-type diff joints which contribute to its superb off-road performance.

Front wide grooved and rear dual block pattern tires are mounted on fluorescent pink wheels*. A newly designed body and rear wing completes this high-potential 2WD racing buggy.

The 2WD DN-01 has a longitudinal battery position with R/C units placed on either side for optimum balance.

Flat chassis underside enables superb skid characteristics. 4-wheel double wishbone suspension is coupled with long-span suspension arms, CVA shock units, and an aluminum front suspension mount.

Monocoque front chassis section features a steering crank with built-in servo saver.

In addition, the drivetrain features full ball bearings and the fully-enclosed gearbox is equipped with a ball differential.

Further upgrading to TRF201 specifications is possible by installing separately available Option Parts.

FeaturesDouble wishbone suspension has the same geometry as the TRF201 and is equipped with CVA shock units.

Rear-mounted motor contributes to great traction.

Compact gearbox is equipped with a ball diff. R/C units are placed on either side of the longitudinally-mounted battery for optimum balance.

SpecificationsLength: 382mm.

Width: 249mm.

Height: 136mm.

Weight: Approx. 910g.

Wheelbase: 272mm.

Tire Width/Diameter: Front = 19/60mm, Rear = 35/62mm.

Bathtub Type Chassis Frame.

Rear-Wheel Drive.

Front & Rear Double Wishbone Suspension. CVA Shock Unit.

Gear Ratio 8.22:1 10.27:1.

Required ItemsSteering servo.

Motor. ESC.

Radio.

Battery.

Charger.

Paint - see below.

Tools.

Please Note: This body shell comes completely UNPAINTED and may or may not require body post holes to be drilled.

Only use a polycarbonate style paint such as The Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface.
