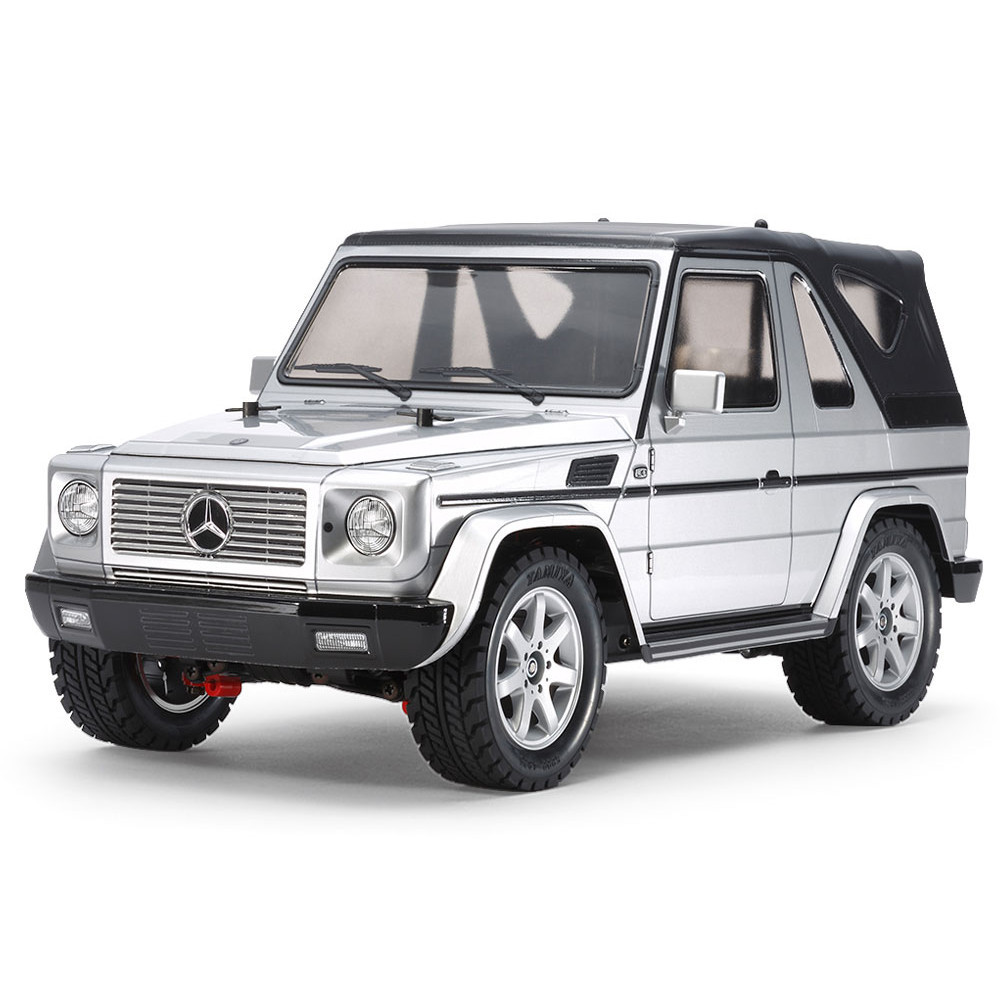

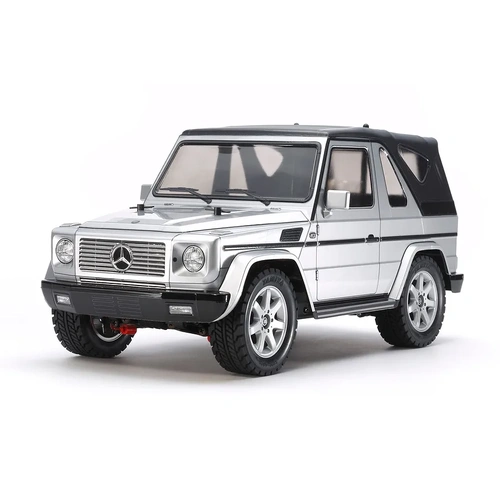

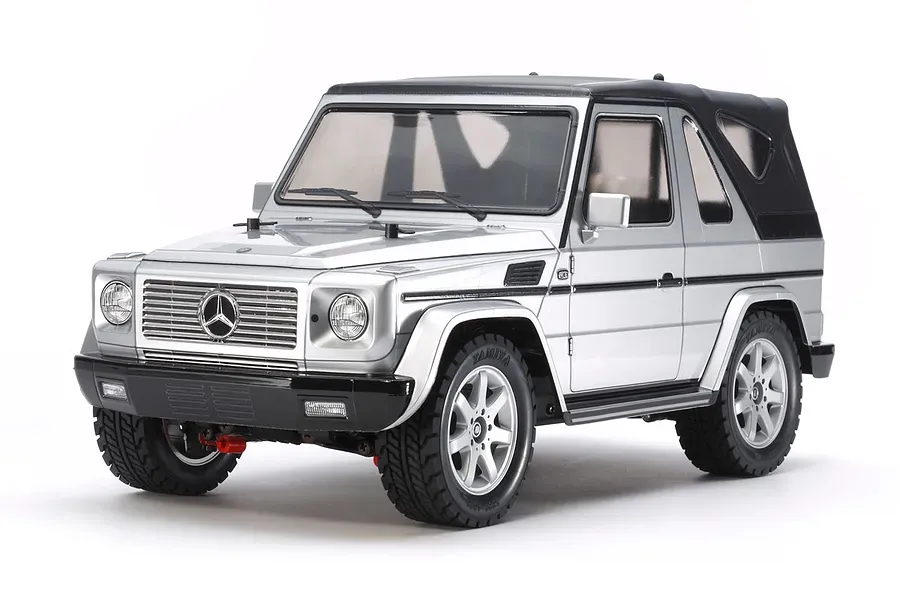

Tamiya 1/10 Mercedes-Benz G 320 Cabrio - MF-01X 58629

Tamiya 1/10 Mercedes-Benz G 320 Cabrio - MF-01X 58629

$239.99

Description

The Mercedes Benz G320 Cabrio was a G Class series vehicle that was sold between 1997 and 2001. While many G Series cars were produced, this version featured a soft convertible top and was based on a short wheelbase version of the chassis. The Tamiya radio control replica is featured on the 4WD MF-01X chassis. Power is transmitted from the rear mounted motor to the front wheels via a propeller shaft that runs down the side of the MF- 01X. Gearboxes are integrated into the monocoque for a sturdy and easy-to-assemble structure.

Features:

Adjustable Gear Ratio: Yes
Bearings: Plastic bushing
Body Material: Polycarbonate
Chassis Material: Plastic
Construction Type: Assembly kit
Differential Type: Gear
Drive Type: Gearbox
Led Light Buckets: No
Led Lights: No
Motor: 540-brushed type

Specifications:

A 2-channel radio gear
Scale 1/10
Shock Damper Friction damper
Length: 385mm, width: 178mm, height: 175mm
The G 320 Cabrio body is expertly captured in light weight , durable polycarbonate
Side mirrors are recreated using separately molded plastic parts
The 4WD MF-01X chassis has a rear mounted motor, and uses a prop shaft to transmit power to the front wheels. It features a robust, easy to maintain monocoque frame. It is at home on road and flat dirt surfaces
This model uses the L wheelbase (239mm). The chassis can be set up in S (210mm) and M (225mm) wheelbases using separately-sold propeller shafts
A range of option parts are available to hop up the MF-01X chassis, including light weight , rigid aluminum propeller shafts
Includes a Tamiya TBLE-02S ESC and Torque Tuned motor. ESC features brushless motor mode for easy expandability
Suspension Fully independent double wishbone
Terrain Use On-Road
7.2v battery and charger
Two channel radio with one servo
Basic hand tools (screw driver, pliers, hobby knife)
Paint for polycarbonate bodies

The Mercedes-Benz G-Class' outstanding durability and off-road performance have made it a firm favorite with consumers since its inception in 1979, its polished technology taken over and modernized with each generation to make it a top class SUV.

This is an R/C model assembly kit of the G 320, a 2-door cabriolet produced between 1997 and 2001, and much sought-after thanks to its stylish looks and typically uncompromising G-Class performance.

The body is reproduced in tough, lightweight polycarbonate, with separately molded side mirrors and metal plated grille-parts.

See below for more information about the exciting new shaft-driven 4WD MF-01X chassis, which this model pairs with 7-spoke wheels and semi-pneumatic treaded tires for super performance whether on- or off-road.

FeaturesThe artfully molded polycarbonate body beautifully captures the G 320, complete with realistic soft top and sticker-recreated stitching details.The monocoque frame MF-01X chassis uses a rear-mounted motor, with power provided by gear to the rear diff and propeller shaft to the front.

Fit separately sold Item 54614 M-05 Ver.II Carbon Reinforced L Parts (Suspension Arms) to allow adjustment of all-important rebound stroke. MF-01X - Compact 4WD At Home on a Range of Surfaces.

Based around a tough monocoque frame with integrated gearboxes, this compact 4WD chassis gives a thrilling drive whether you take it on road or flat dirt surfaces.

It features a rear-mounted motor, with gear-driven rear wheels and a propeller shaft taking power to the front.

Both front and rear gearboxes have differential gears.

The battery pack location in the chassis center secures excellent balance, while 4-wheel independent double wishbone suspension employs friction dampers.

Off-road capable M-05Ra chassis uprights and hub carriers are also included.

SpecificationsLength: 385mm.

Width: 177mm.

Height: 180mm.

Wheelbase: 239mm (L).

Monocoque Frame.

Shaft-Driven 4WD. 3-Bevel Differential Gears. 2-Piece Steering Tie-Rod. 4-Wheel Double Wishbone Suspension.

Front & Rear Friction Dampers.

Gear Ratio 9.5:1.

Type 540 Motor.

Required ItemsSteering servo.

Remote controller.

Battery.

Charger.

Paint.

Tools.

Please Note: This body shell comes completely UNPAINTED and may or may not require body post holes to be drilled.

Only use a polycarbonate style paint such as The Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface.

Specifications

Brand Tamiya
