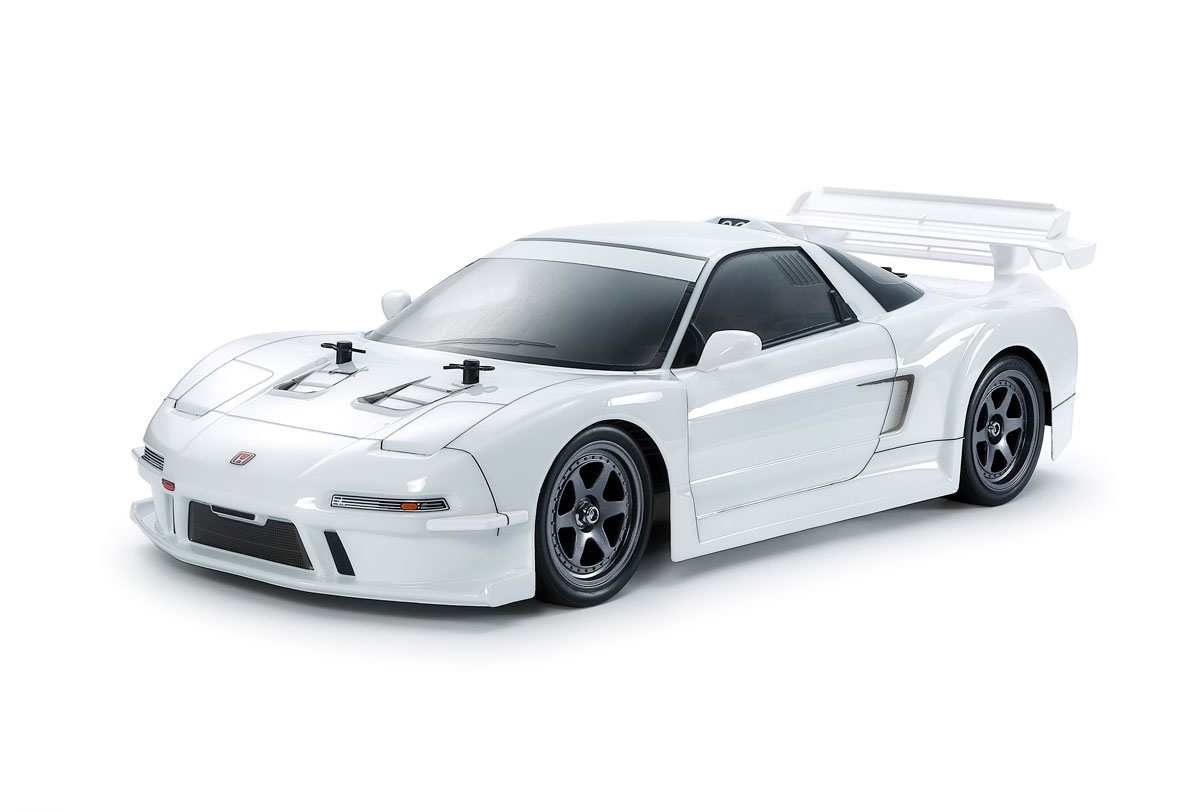

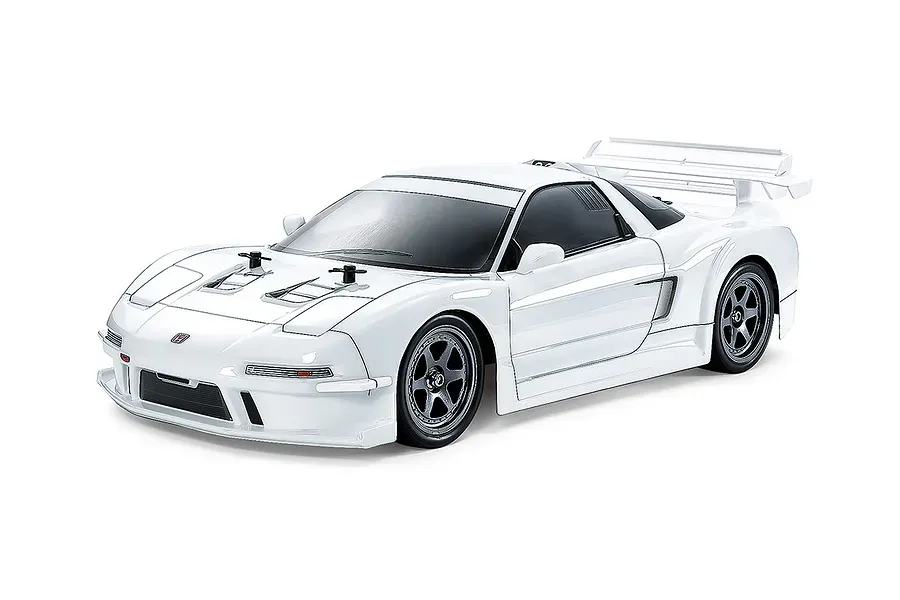

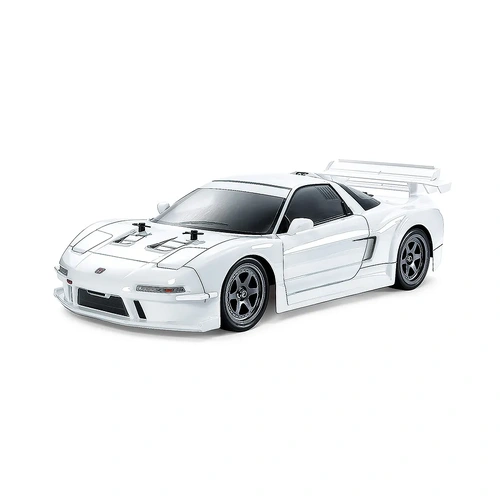

Tamiya 1/10 1998 Honda NSX Racing 4WD RC Car Kit

This is a limited-edition version of the Honda NSX Racing . (Item 58739) It includes a pre-painted body, cut out wheel arches and premade body mount holes that makes the body construction process simpler for beginner builders.

The kit recreates the 1998 Honda NSX Racing! The version in this release is minus any sponsorship livery so you may create your own or simply paint the car as you wish. It sits on top of our easy to assemble and maintain 4WD TT-02 chassis.

The NSX - a midship engine sports car released in 1990 – achieved success in races all over the world and took part in Japanese GT car races from 1996. The 1998 version employed a 3.5-liter V6 engine, and featured improved aerodynamics, low center of gravity, improved brake system and easier maintenance. Four cars were raced that year and achieved five victories.

TT-02: Adaptable, Balanced Shaft Driven 4WD

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

• 1/10 scale R/C model assembly kit. Length: 435mm, width: 194mm, height: 121mm. Wheelbase: 257mm.
• Polycarbonate body pre-painted in Tamiya White (PS-1). Windows are tinted in Tamiya Smoke (PS-31).
• The model utilizes the shaft-driven 4WD TT-02 chassis which features superior adaptability and stability.
• Gun metal 6-spoke wheels are paired with racing slick tires.
• Comes with trim stickers and window masking stickers for use in the paint job.
• Includes ESC and 540-Type brushed motor.

What you Need:

• 2-channel radio
• steering servo
• 7.2-7.4volt battery with compatible charger.

Note: This kit comes without an ESC , Servo , Battery , Charger , or Transmitter and will come with a painted polycarbonate shell that may require cutting and drilling.The Honda NSX, A two-seater, rear engined rear-wheel drive sports car, came from a company best known for making reliable consumer focused cars.

This didn't stop Honda from delivering a car that in many ways was years ahead of its time.

Featuring an all aluminium semi-monocoque body, the first production car to do so, an aluminium 3.0 litre V6, later a 3.2 litre, engine using Hondas' legendary Variable Valve Timing and Electronic Control, VTEC for short, system and a 5 speed manual transmission the NSX delivered incredible performance that allowed it to compete with monsters like the Lotus Esprit, Ferrari F355 and Porsche 911 at almost half the price.This TT-02 version of the NSX is based on the GT1/GT2 Le Mans race cars and features a unique body kit and wing when compared to the standard NSX. TT-02 Chassis Balanced and adaptable shaft drive 4WD The TT-02 chassis is a shaft-driven 4WD platform that offers great stability with its longitudinal layout of the battery and motor.

It is also easy to assemble and maintain, thanks to its symmetrical suspension arms and uprights, and simple gearboxes.

You can customise the chassis to suit your preferences, as it has 2 options for wheelbase, ground clearance and tread, as well as 10 possible gear ratios.

The chassis also looks cool, with wheel hubs that look like brake discs and sleek front bumper supports.

Key Features Easy-to-remove gearbox coverSimply loosen the screws on the frame to access the gearbox.

Smooth and stable differential gearsThe 4-bevel gears are moulded for optimal performance and cornering.

Flexible and comfortable steering linkageThe resin ball links allow for smooth motion and easy adjustment.

Realistic and stylish wheel hubsThe hubs are designed to resemble brake discs for a cool look.

Controllable and adjustable suspensionThe 4-wheel double wishbone suspension uses friction dampers for a smooth ride.

Dust-proof and dirt-proof receiver caseThe receiver is protected by a case that keeps it clean and safe.

Removable and optional cooling ductThe motor cover has a cooling duct that can be removed if not needed. (not attached in above image).

FeaturesFully licensed by Honda.

Uses the Tamiya TT-02 chassis which is easily assembled.

Massive factory and aftermarket parts support.

High quality polycarbonate body shell is factory painted.

Racing inspired 6 spoke rims.

Racing inspired rear 2 part wing.

High detail decal sheet included.

Genuine Tamiya Product.

SpecificationsLength: 435mm (17.1 in).

Width: 194mm (7.6 in).

Height: 121mm (4.8 in).

Wheelbase: 257mm (10.1 in).

Weight: Varies.

Tyre Diameter: 67mm (2.6 in).

Chassis: On Road.

Drivetrain: 4WD.

Gears: 8.27:1.

Suspension: Coil Over Shock Absorbers.

Motor: Tamiya 540 Sized Brushed Motor. ESC: Not Included.

Included itemsDescription. QTY.

Tamiya 1/10 TT-02 1998 Honda NSX Raci

Key Specifications

• Scale: 1/10

Full Specifications
