Spektrum AR631+ 6 Channel AS3X+ and SAFE Receiver
$169.99
Spektrum AR631+ 6 Channel AS3X+ and SAFE Receiver
$169.99
SKU:
SPM-1031Availability:
Sold Out
Quantity:
Flat Rate $9.95 Shipping To Metro Areas*- Free Shipping For Orders Over $150 To Metro Areas* (Online orders only)
The AR631+ features fly-by range telemetry and a bind button that makes it easy to bind with no plugs necessary and offers both SmartSafe technology and Hold Last as well as preset failsafe types set
Description

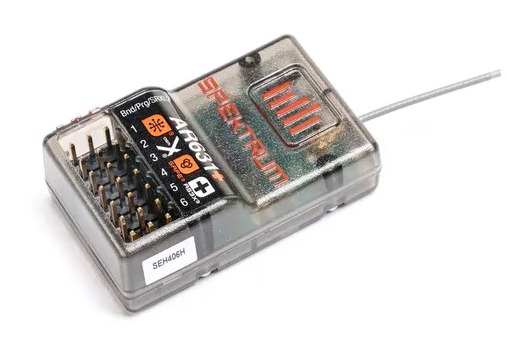

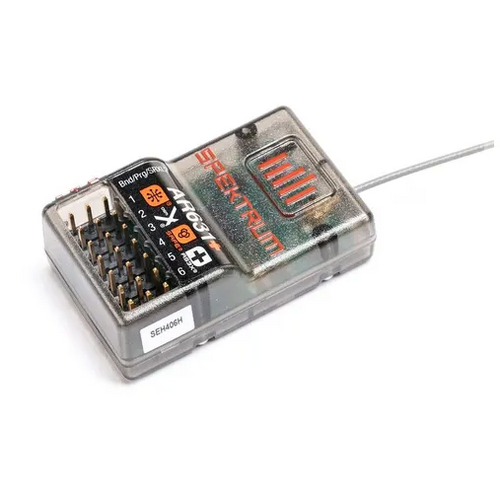

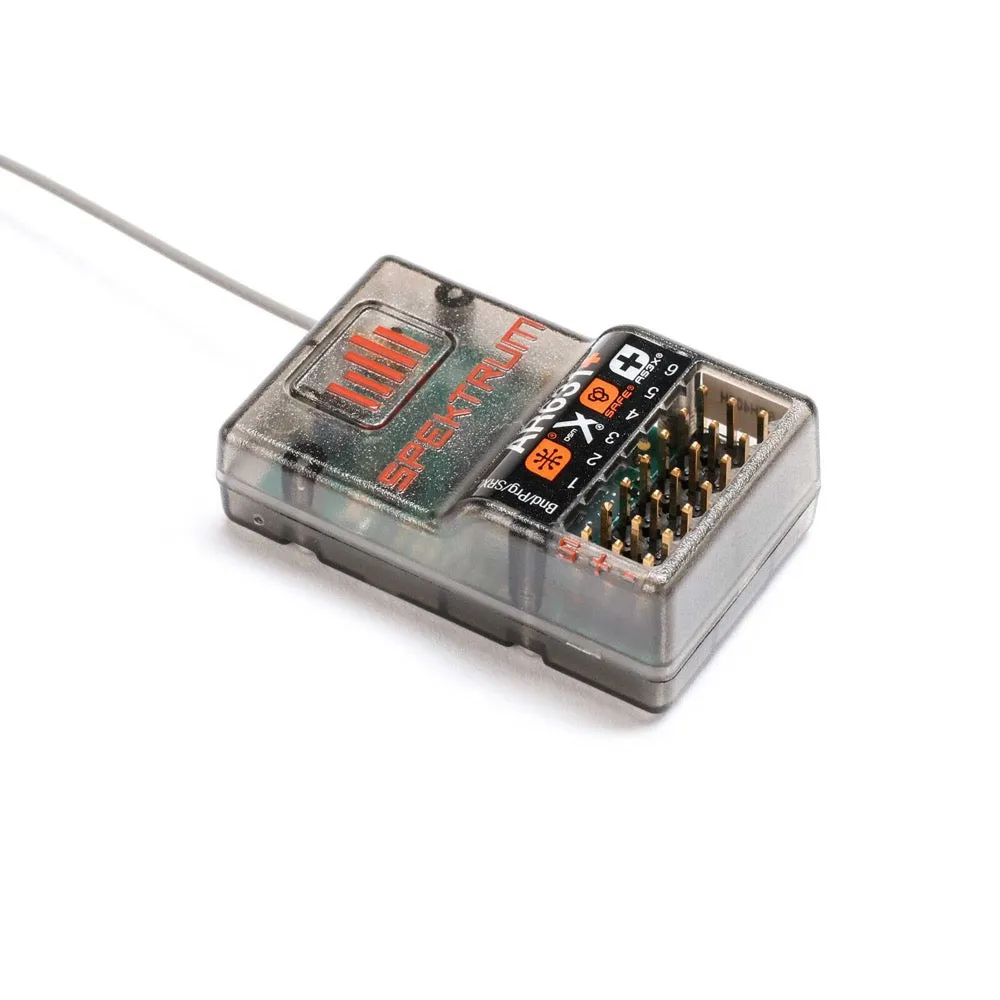

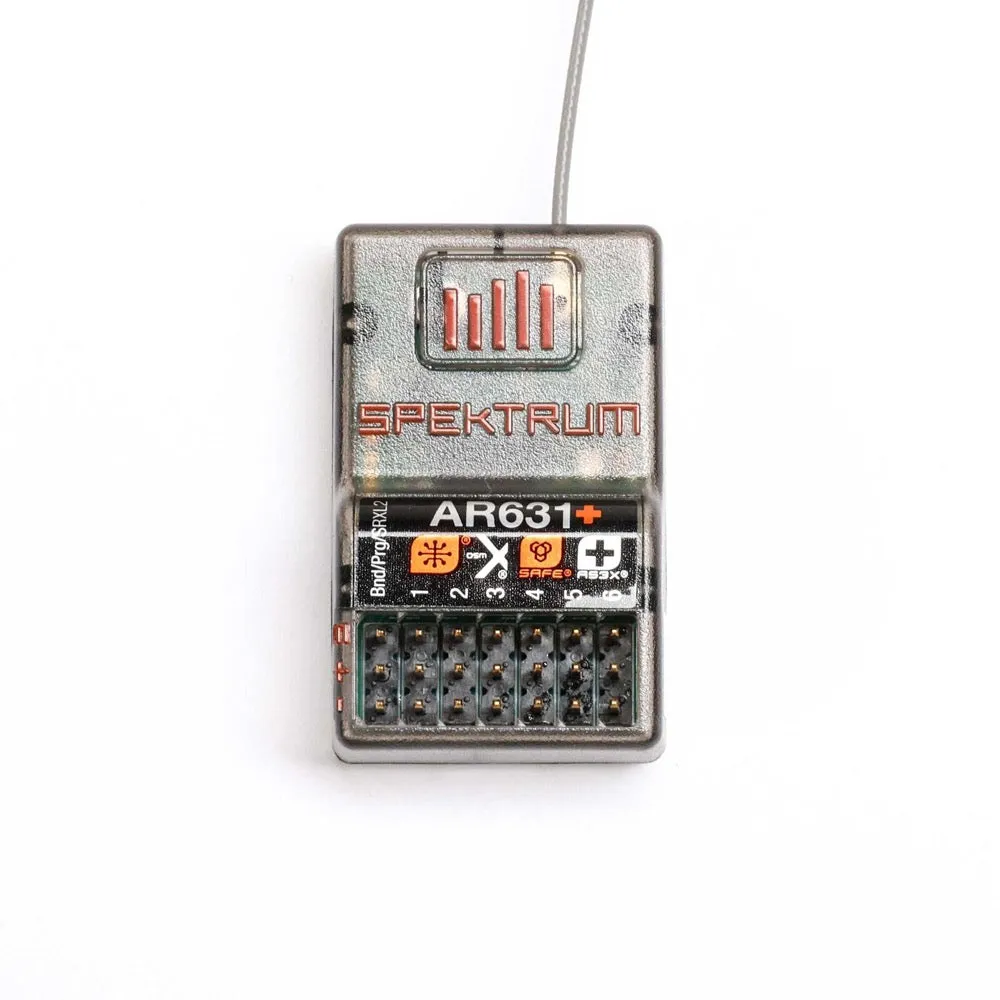

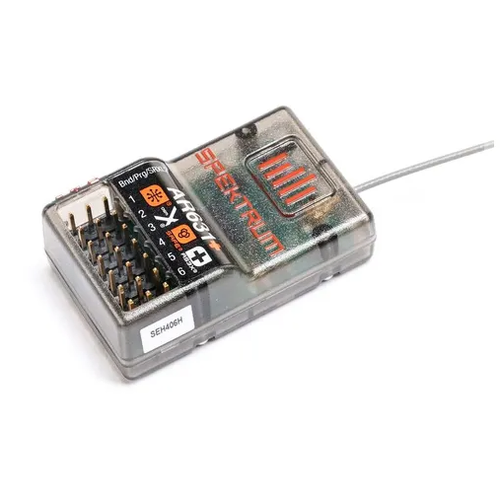

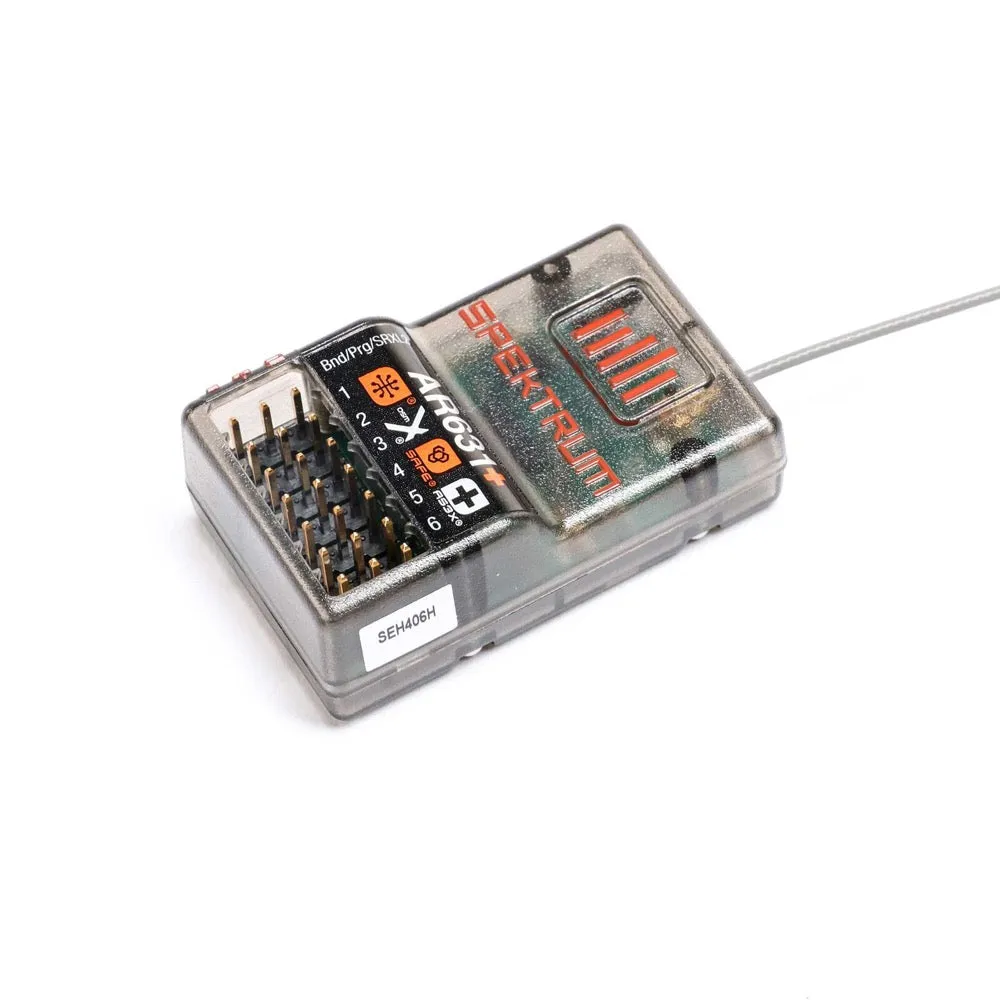

The Spektrum AR631+ AS3X+ Telemetry Receiver is a DSM2 and DSMX capable receiver. Its compact footprint is designed to fit in a wide range of aircraft models including park flyers and larger sport models. The AR631+ is a full range 6-channel receiver with built in AS3X+ and SAFE stabilization, which counters the effects of wind, turbulence and torque using 3-axis MEMS gyro and exclusive flight control software tuned by expert RC pilots. There is no delay in control response or limits on control throws. You'll simply feel like you're flying an expertly tuned model that does exactly what you want.
Specifications
| ESC | can send telemetry data like voltage and current back to the receiver. The AR631+ receiver throttle port ( |
| Channel | 1 port only) will automatically detect when a Smart compatible |
| ESC | is connected. ESCs with Smart and IC series connectors can also pass along battery data from compatible Spektrum Smart batteries. Spektrum Avian™ ESCs are compatible with the AR631+ receiver for Smart Technology features. For Smart to function you must have a Smart |
| ESC | paired with a Smart telemetry receiver, and a Spektrum DSMX transmitter with telemetry. An update for your transmitter may be required for Smart features. Visit spektrum.com to register and update your transmitter. If a standard |
| ESC | or servo is plugged into the throttle port on the AR631+ receiver, the throttle port will operate normally (PWM signal) like any conventional RC system. Please Note: These transmitters do not support Forward Programming devices: DX6i, DX6G2 (EU Version), DX7, DX7S, DX7SE, DX7G2 (EU Version), DX8, Non-computer transmitters Using this receiver in turbine powered aircraft models is not recommended. AS3X+® Technology Exclusive Spektrum™ AS3X+® technology enhances flight stability by countering the effects of wind, turbulence, and other outside forces to help your aircraft fly smoothly and with precision. You'll feel like you're piloting an expertly tuned model that performs exactly as you want. SAFE® Technology SAFE® (Sensor Assisted Flight Envelope) technology flight modes help pilots avoid over-controlling their models. SAFE uses AS3X+ to deliver normal flight performance, but with limited bank and pitch angles to prevent the aircraft from getting in extreme attitudes. Long 230mm 2.4GHz Antenna The AR631+ features an extra-long 230mm 2.4ghz antenna (approximately 9 inches), specifically engineered for use in tight installations. When installing your receiver into an aircraft where there is less then ideal space away from batteries and other devices, a long antenna is key. This allows users to install the receiver in tight spaces and isolate the antenna for optimal reception and link quality. When positioning your antenna, it is best to have it at least 75mm ( approximately 3 inches) away from batteries, electronic speed controls (ESC), ignition systems, and other electronic devices. Use the integrated flight log telemetry to perform a through range test to better evaluate your setup. Forward Programming You can configure the AR631+ receiver wirelessly, directly from any compatible Spektrum™ t |
Full Specifications
| ClassType | Radio Gear |
| List | 439 |
| PartType | Electronics |
Specifications
| Brand | Spektrum |
