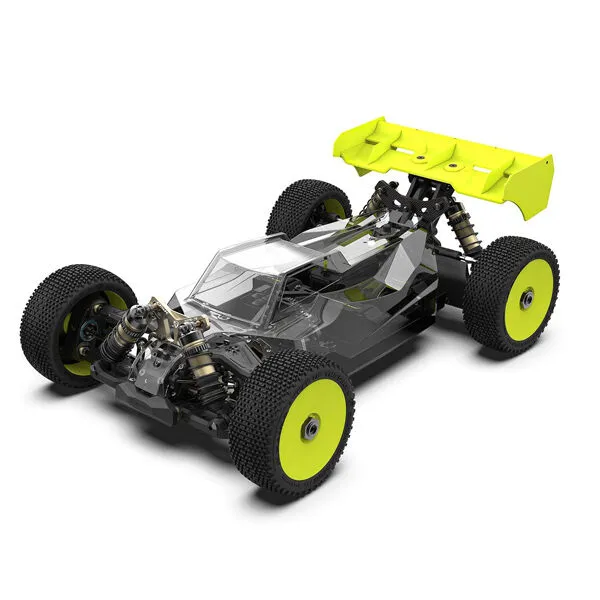

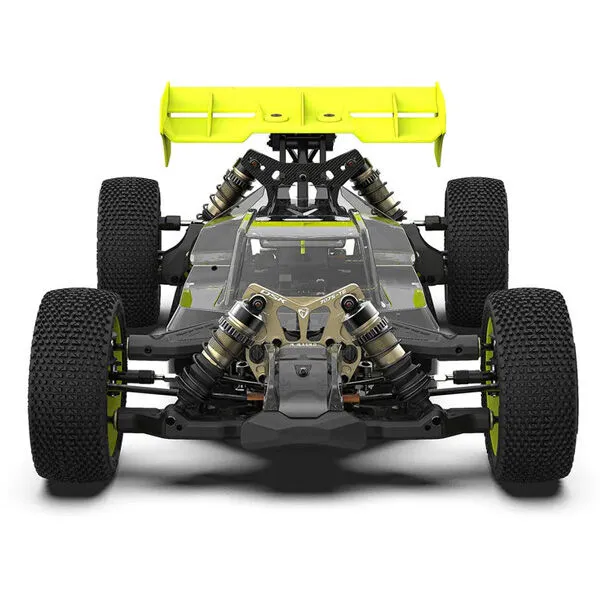

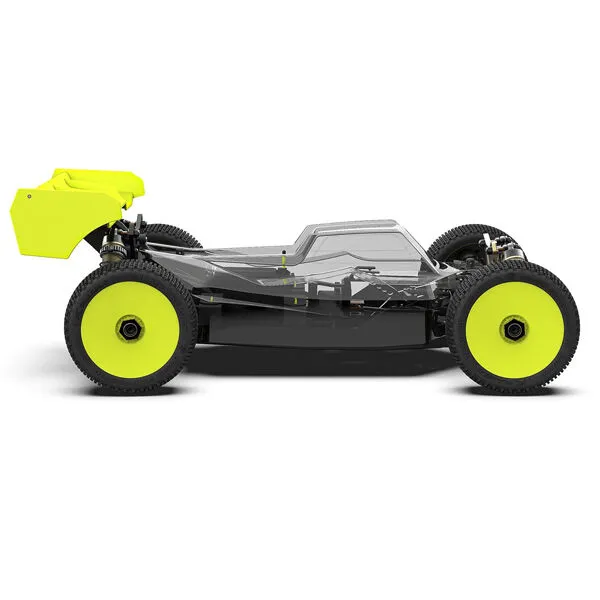

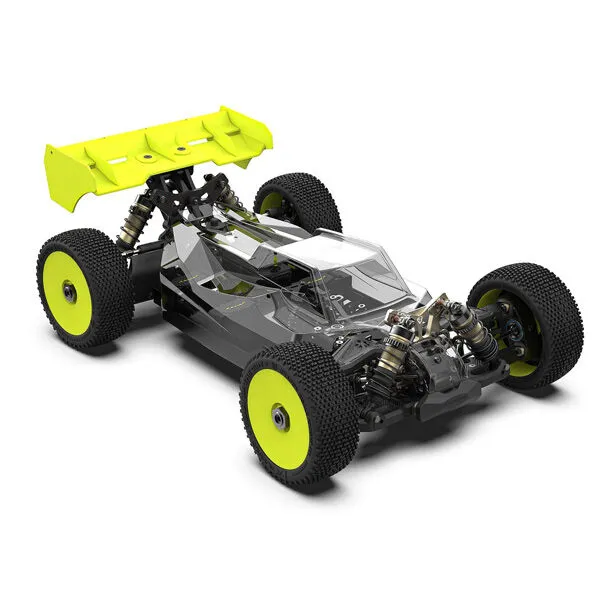

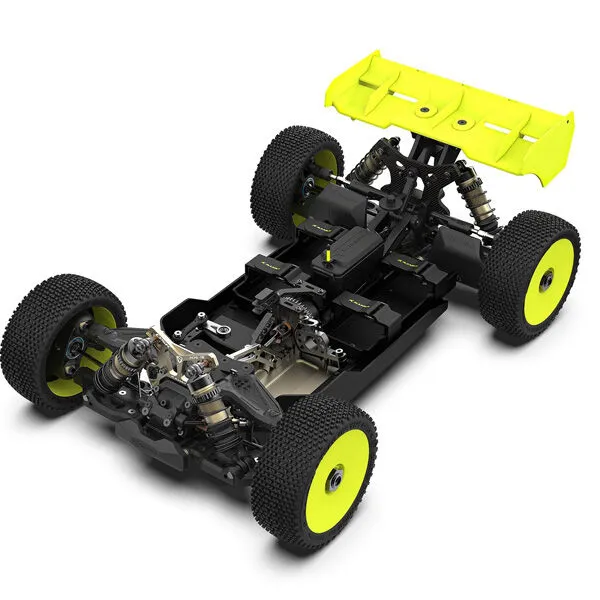

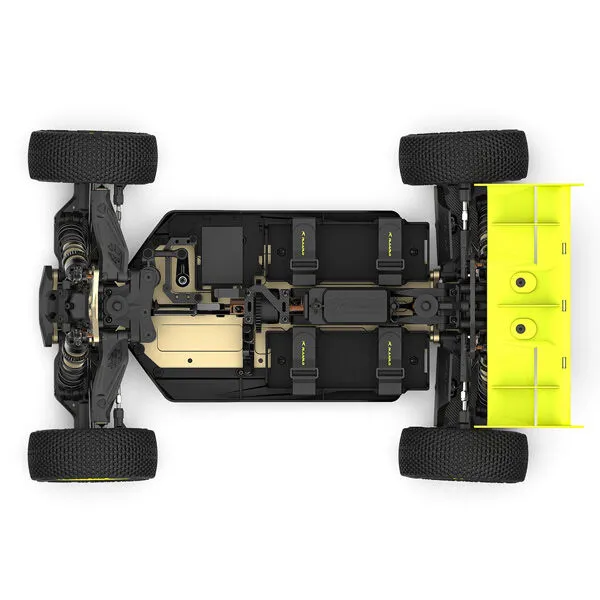

Rlaarlo 1/8 Dragon Scale Knight Buggy Pro Kit DSK08-KIT

The Rlaarlo Dragon Scale Knight (DSK) is a serious 1/8 scale racing buggy designed for drivers who want maximum performance, tuning potential and durability. Whether you're competing at your local track or building the ultimate high performance buggy, the DSK provides a premium platform that can be tailored to suit your driving style.

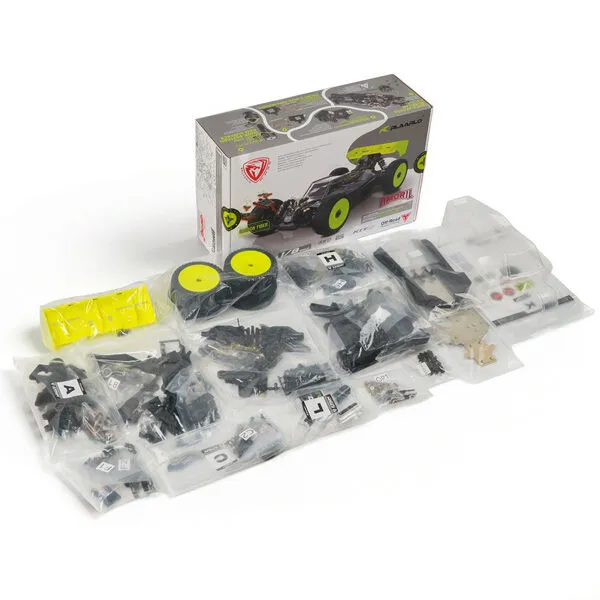

This kit includes all the parts you need. Simply assemble, paint, and install the electronics to build a truly one of a kind off road vehicle.

The kit version includes a range of premium upgrades straight from the factory, including carbon fibre components, aluminium performance parts and competition spec suspension hardware. Simply add your choice of electronics, radio gear and battery to create a race ready machine built exactly to your specifications.

Whether you're stepping into competitive 1/8 buggy racing or looking for a highly tunable platform with huge upgrade potential, the Dragon Scale Knight delivers the performance, durability and flexibility expected from a modern competition buggy.

This version of the DSK is provided as a build it yourself kit without any electronics.

You will need the following components to complete your build:

•     Brushless Motor (recommended 4274 size)
•     ESC (min 120A)
•     Steering Servo (min 30kg rated)
•     Radio System
•     LiPo Battery (3-6S)
•     Battery Charger
•     Tools to assemble

Specifications

• Scale: 1/8
• Drive System: 4WD Shaft Driven
• Vehicle Type: Competition Buggy
• Length: 495-500mm
• Height: 180mm
• Wheelbase: 326-330mm
• Front Track Width: 285mm
• Rear Track Width: 285.5mm

Drivetrain

• 3 Gear Differentials (Front, Centre & Rear)
• Internal Drive Ratio: 2.71:1
• Overall Drive Ratio: 9.7:1
• MOD 1.0 Gearing
• 46T Spur Gear
• 17T Motor Pinion
• Precision CNC Machined Hardened Steel Bevel & Pinion Gears
• Hardened 40CrMo Steel Spur Gear

Chassis & Construction

• 3mm 7075-T6 Hard Anodised Aircraft Grade Aluminium Chassis
• 5mm 7075-T6 Hard Anodised Aluminium Front Shock Tower
• 5mm 7075-T6 Hard Anodised Aluminium Rear Shock Tower
• 1.5mm Heavy Duty Polycarbonate Bodyshell

Suspension

• Oil Filled Composite Coil Over Shocks
• Front Shock Length: 107mm
• Rear Shock Length: 129mm

Wheels & Tyres

• 17mm Hex Wheel Adapters
• Wheel Diameter: 74mm
• Wheel Width: 42mm
• Tyre Diameter: 115mm
• Tyre Width: 45mm
