Power HD Standard Coreless Motor Steel & Aluminium Gear Digital Servo

Power HD Standard Coreless Motor Steel & Aluminium Gear Digital Servo

$124.99

Description

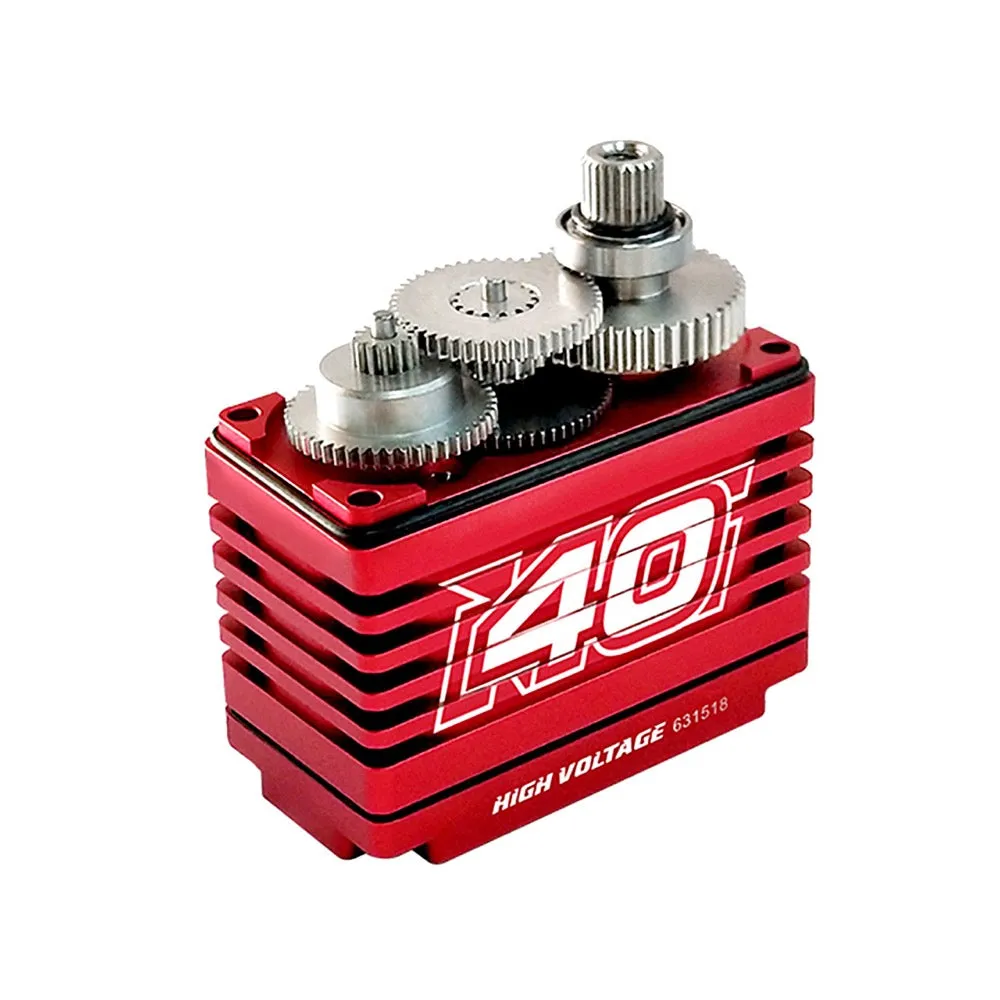

The A-40CHV is a programmable digital HV servo with a metal housing and a steel/aluminium gearbox with double ball bearings. Specifications - Torque(6.0V): 25.0 kg-cm ( 347.2 oz/in) - Torque(7.4V): 35.0 kg-cm ( 486.1 oz/in) - Torque(8.4V): 40.0 kg-cm ( 555.5 oz/in) - Speed: 0.14 sec (6.0V) / 0.12 sec (7.4V) / 0.10 sec (8.4V) - Operating Voltage: 6.0 ~ 8.4 DC Volt - Weight: 80 g (2.82 oz) - Bearing Type: Ball Bearing x 2 - Motor Type: Coreless Motor - Gear Type: Steel & Aluminum - Operating Temperature: -20°C~60°C - Working frequence: 1520µs / 333hz - Size: 40.7 x 20.5 x 38.7 mm ( 1.60 x 0.81 x 1.52 in)

Specifications

Brand Power HD
