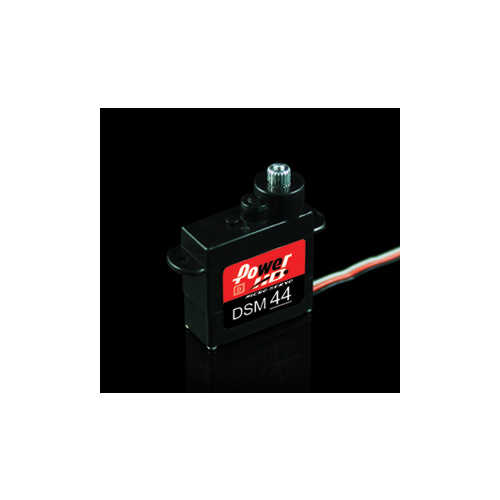

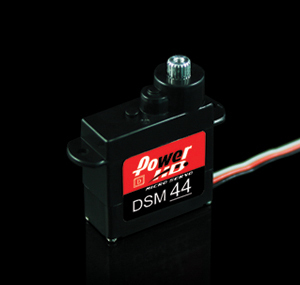

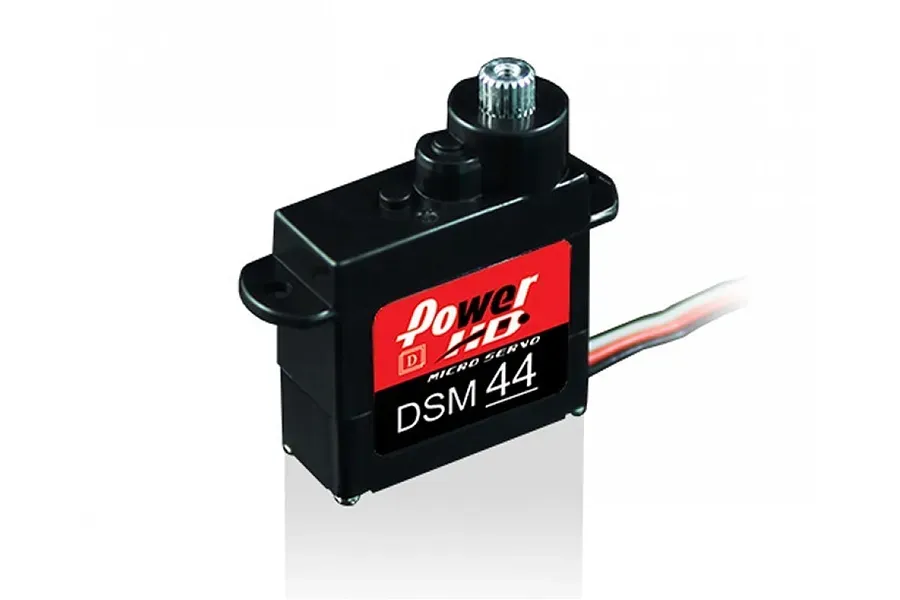

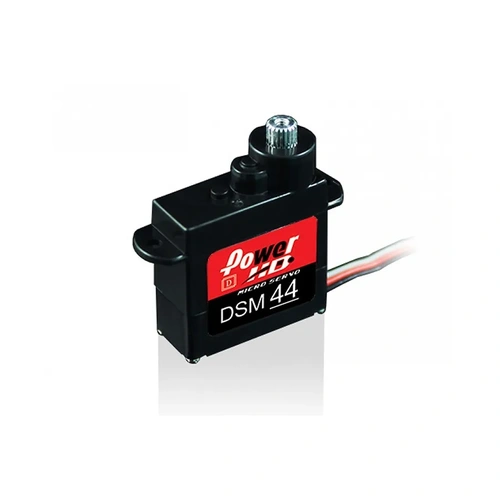

Power HD Micro Coreless Motor Aluminium Gear Servo

Power HD Micro Coreless Motor Aluminium Gear Servo

$24.99

Description

Power HD 1.6kg Micro Servo. How To: Install a ServoIn this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears. Power HD DSM44 Servo Dimensions Total Height (A ) = 27mm. Body Width (B ) = 20.3mm. Below Mount (C ) = 15.2mm. Above Mount (D ) = 11.8mm. Total Length (E ) = 27.4mm. Total Width (F ) = 8.4mm. SpecificationsTorque(4.8V): 1.20 kg-cm (16.7 oz/in). Torque(6.0V): 1.60 kg-cm (22.2 oz/in). Speed: 0.09 sec (4.8V) ? 0.07 sec (6V). Operating Voltage?4.8 ~ 6.0 DC Volts. Weight: 5.7g (.201oz). Bearing Type?1 x Ball Bearing. Gear Type?Aluminium. Motor Type: Coreless. Operating Temperature?-20?~60? . Working frequence?1520?s / 333hz. Size?20.2x 8.7 x 24 mm (0.79 x 0.34 x 0.94 in). Included itemsDescription. QTY. Power HD Micro Coreless 1.6kg 6V Aluminium Geared Servo. 1. Servo Horns. 4. Screws. 2.

Specifications

Brand Power HD
