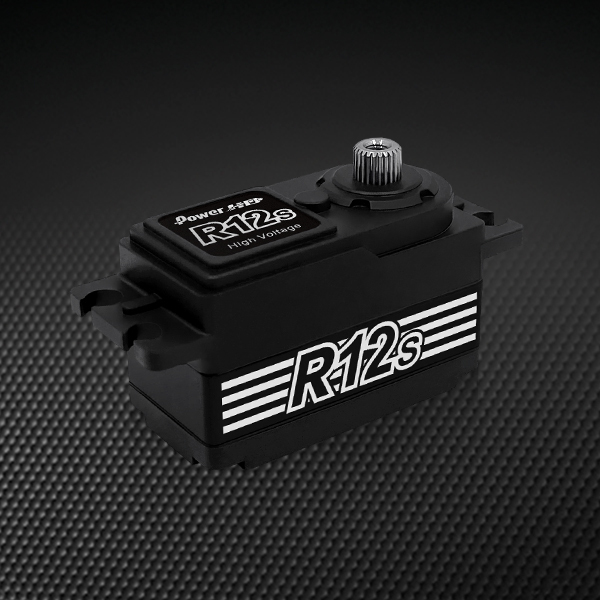

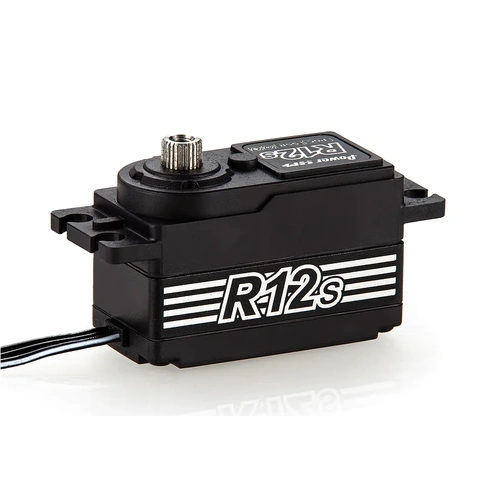

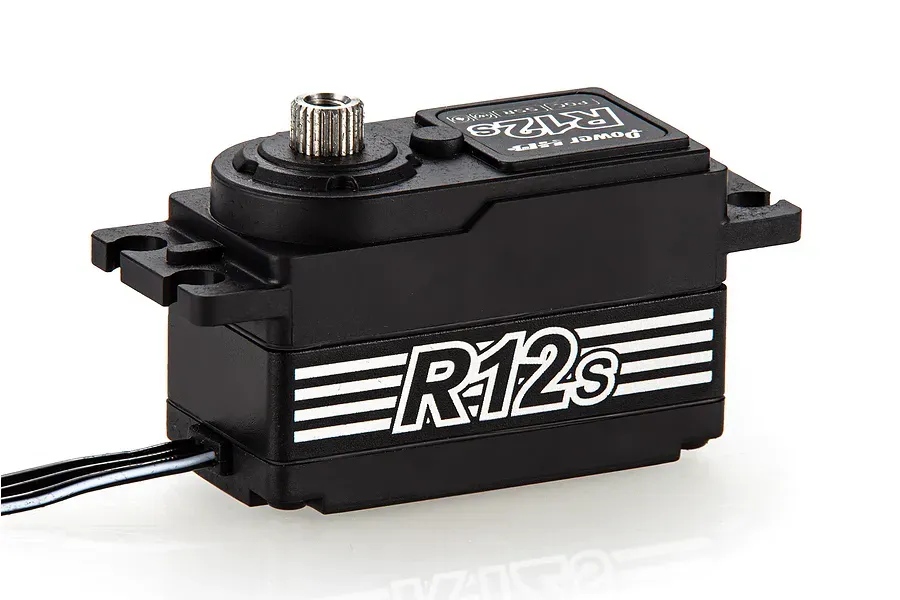

Power HD Low Profile HV Coreless Digital Servo

Power HD Low Profile HV Coreless Digital Servo

$99.99

Description

Power HD Brushless Servo SpecificationsTotal Height (A ) = 31mm. Body Width (B ) = 41mm. Below Mount (C ) = 17mm. Above Mount (D ) = 13mm. Total Length (E ) = 54mm. Total Width (F ) = 20mm. How To: Install a ServoIn this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears. SpecificationsOperating Voltage. 6.0v. 7.4v. Torque. 9.0 kg-cm (125.0 oz/in). 12.0 kg-cm (166.6 oz/in). Speed. 0.07 sec. 0.06 sec. Bearing Type. Ball Bearing x 2. Motor Type. Coreless Motor. Gear Type. Steel. Working frequency. 1520?s / 333hz. Operating temperature. -20?~60? Weight. 83 g (2.93 oz). Size. 41.0 x 20.0 x 26.4 mm (1.61 x 0.79 x 1.04 in). . .

Specifications

Brand Power HD
