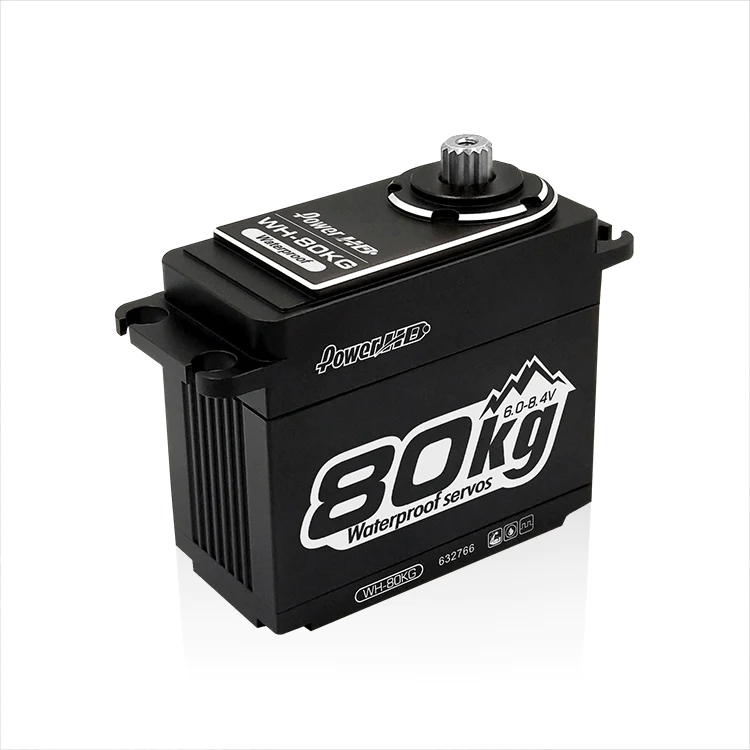

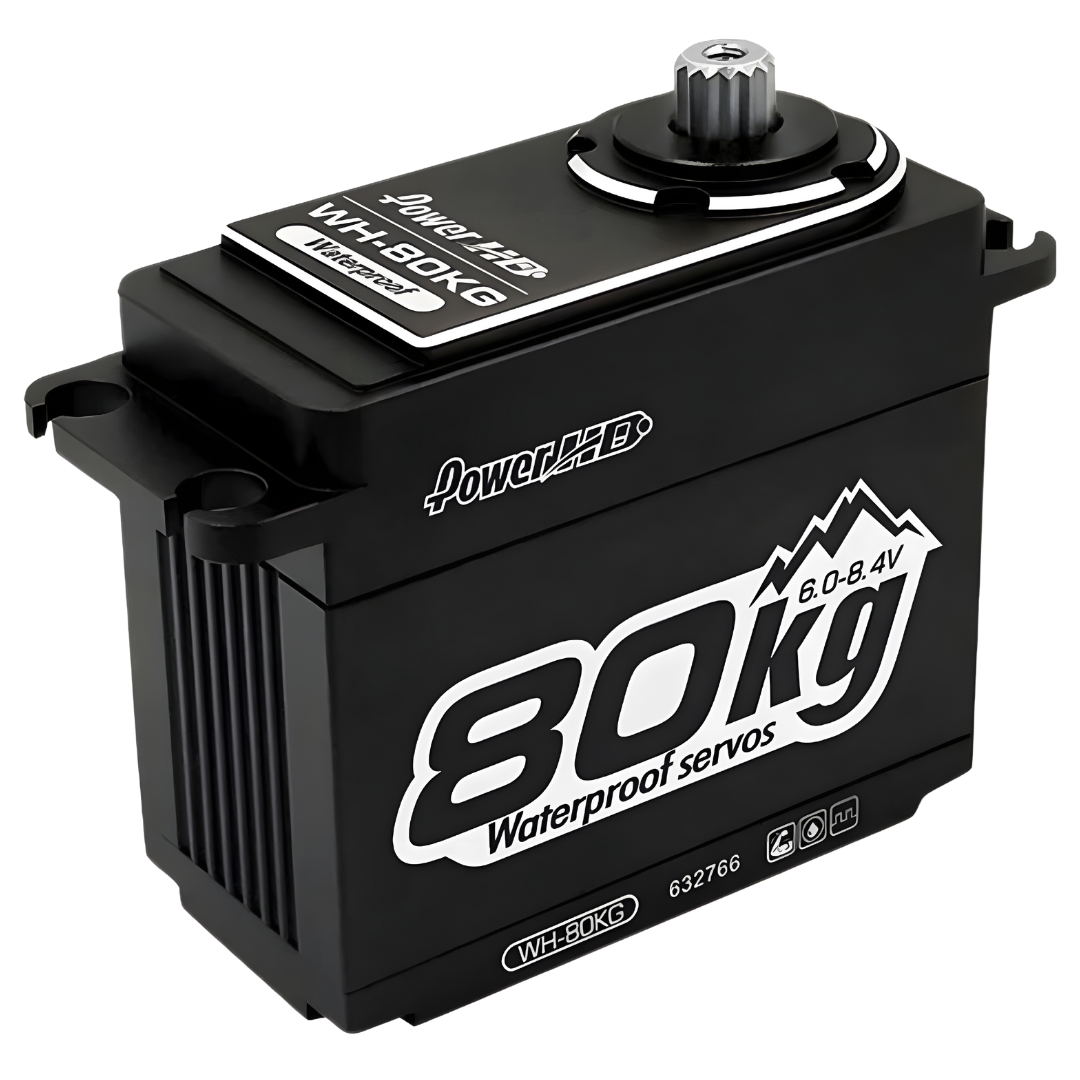

Power HD HV Large Size Waterproof Servo (Upgraded version of PHD-WH-80KG)

Power HD HV Large Size Waterproof Servo (Upgraded version of PHD-WH-80KG)

$149.99

Description

The Power HD PHD-WH-80V1 is a high-voltage 1/5 scale servo delivering up to 80kg-cm of torque for large-scale on-road and off-road RC vehicles. Featuring a full aluminium case and steel gears, this waterproof servo is built for strength, precision, and durability in demanding conditions. Features - Genuine Power HD product - Designed for 1/5 scale RC cars on and off road - High voltage operation up to 8.4V - Full aluminium upper, middle, and bottom case - Steel metal gears for maximum durability - Waterproof construction for reliable performance - Dual ball bearings for smooth operation Specifications - Torque at 7.4V: 75 kg-cm - Torque at 8.4V: 80 kg-cm - Speed at 6V: 0.18 sec per 60 degrees - Speed at 8.4V: 0.16 sec per 60 degrees - Operating Voltage: 7.4 to 8.4V DC - Weight: 200 g - Gear Type: Steel - Horn Gear Spline: 15T 7.6 mm - Bearing Type: Dual ball bearing - Operating Temperature: -10 to 50 degrees Celsius - Operating Travel: 90 degrees (1000 to 2000 μsec) - Maximum Travel: Approximately 135 degrees (800 to 2200 μsec) - Neutral Position: 1500 μsec Dimensions - Total Height: 62.4 mm - Body Width: 59.5 mm - Below Mount: 41.0 mm - Above Mount: 21.4 mm - Total Length: 75.4 mm - Total Width: 29.5 mm Includes - Power HD PHD-WH-80V1 servo - Mounting hardware

Specifications

Brand Power HD
