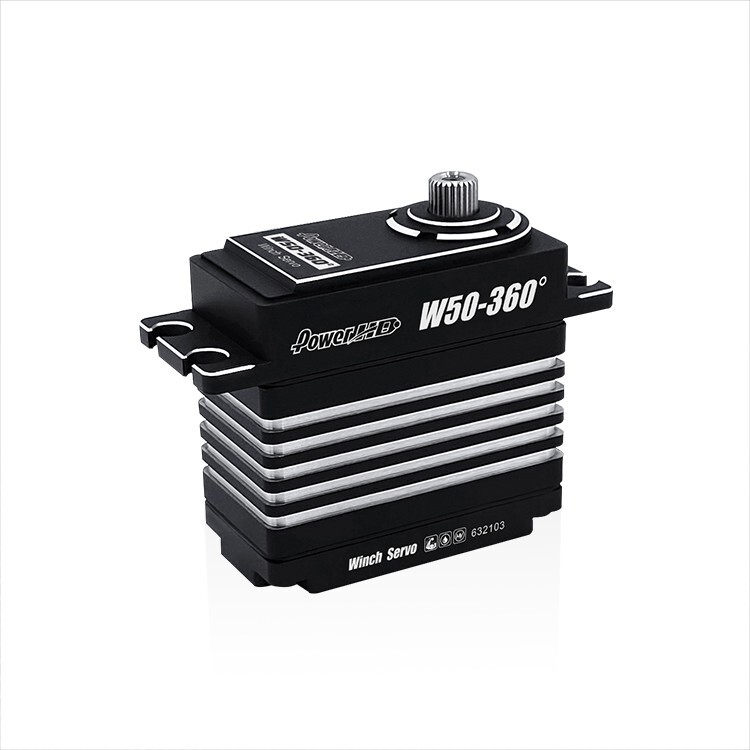

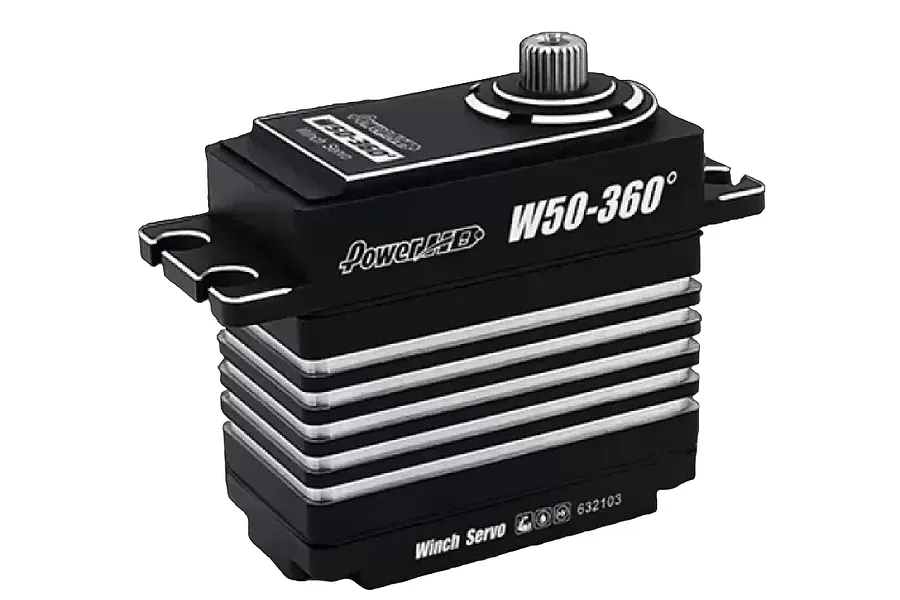

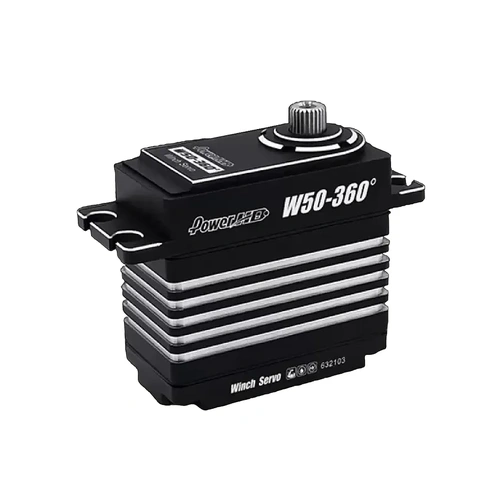

Power HD HV Coreless Digital Winch Servo

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC. The Power HD W50 High Voltage Servo feature all-aluminium housings, with high-power brushless motor as the core power, offering amazing torque output. American imported ST32-bit MCU control chip ensure superior servo performance. Here's a nice over power winch.FeaturesOperating Voltage . 6.0v . 7.4v . 8.4v . Torque . 35.0 kg-cm / (486.1 oz/in). 45.0 kg-cm / (625.0 oz/in). 50.0 kg-cm / (694.4 oz/in). Speed . 1.3 sec. 1.0 sec. 0.9 sec. Bearing Type . Ball Bearing x 2. Motor Type . Brushless Motor. Gear Type . Steel. Working frequency . 1520?s / 333hz. Operating temperature . -20?~60? Weight . 80 g (2.82 oz). Size . 40.8 x 20.5 x 38.7 mm ( 1.60 x 0.81 x 1.52 in). Power HD Brushless Servo SpecificationsTotal Height (A ) = 43.6mm. Body Width (B ) = 40.8mm. Below Mount (C ) = 27.5mm. Above Mount (D ) = 16.1mm. Total Length (E ) = 53.7mm. Total Width (F ) = 20.5mm. How To: Install a ServoIn this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.
