Power HD HV Brushless Servo

Power HD HV Brushless Servo

$249.99

Description

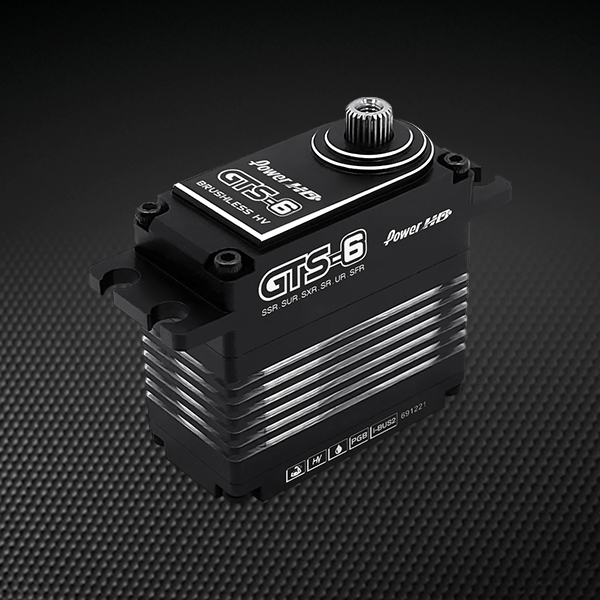

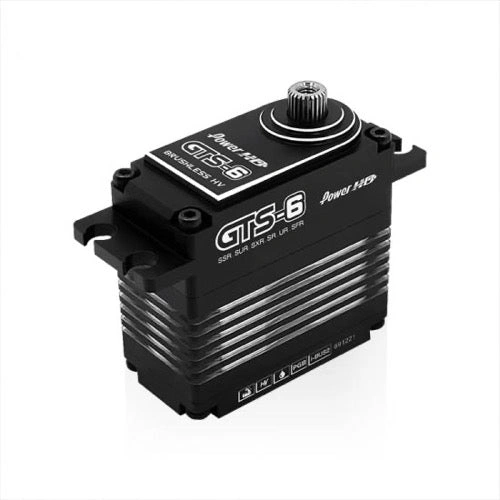

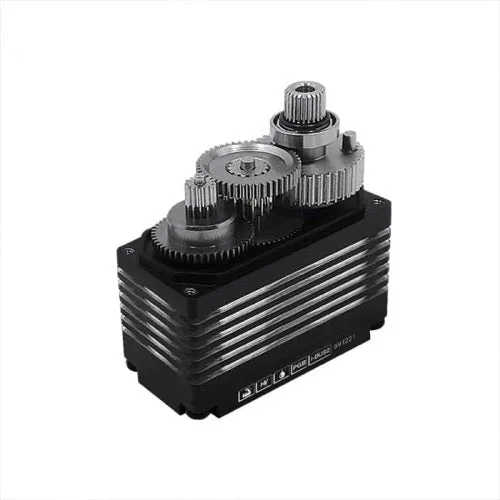

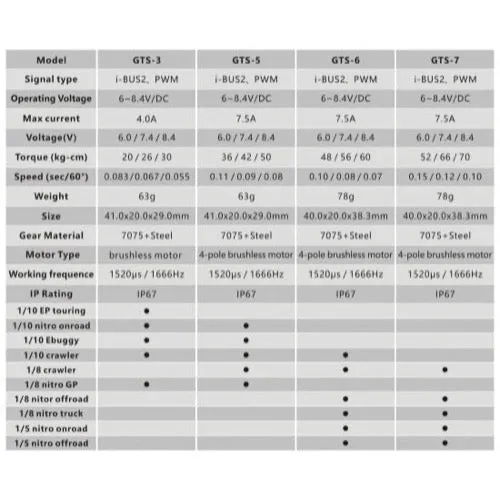

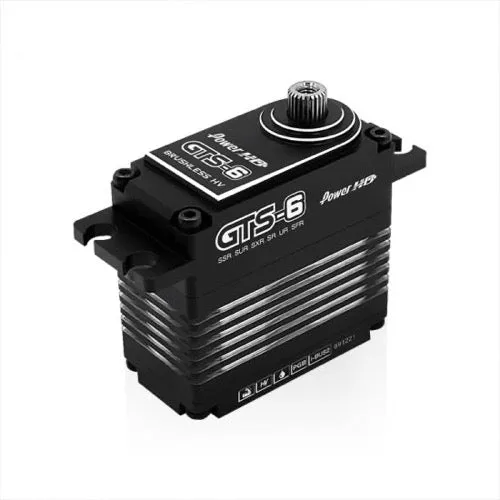

The Power HD GTS-6 HV Brushless Digital Servo (HD-GTS-6) delivers impressive holding power and speed, combining a four-pole brushless motor with CNC construction and hardened 7075/steel gearing. At 8.4V it produces up to 60.0 kg-cm of torque with a rapid 0.07 s transit time, supported by dual ball bearings for smooth, consistent operation. Features - Four-pole brushless motor for high performance, long life, heat resistance and fast response - High-voltage operation across 6.0–8.4 V DC - Torque: 48.0 kg-cm (6.0V), 56.0 kg-cm (7.4V), 60.0 kg-cm (8.4V) - Speed: 0.10 s (6.0V), 0.08 s (7.4V), 0.07 s (8.4V) - Dual ball bearings and 7075/steel gear train - Programmable via Power HD PG-CB63 program box for parameter setup, data logging and warnings - Suggested compatibility with FLYSKY i-BUS2 protocol - Suggested compatibility with high-speed radio modes: Noble NB4 Pro (NOR/SR/SFR), Futaba (NOR/SR/UR), SANWA (NOR/SHR/SSR/SUR/SXR) - Working frequency: 1520 / 1666 Hz - Max current: 7.5 A Specification - Operating voltage: 6.0–8.4 V DC - Motor type: Brushless - Bearing type: 2 x ball bearings - Gear type: 7075 + steel - Case size: 40.0 x 20.0 x 38.3 mm (1.57 x 0.79 x 1.51 in) - Weight: 78 g (2.75 oz) - Operating temperature: -20 to 60°C Engineered for demanding RC applications, the GTS-6 balances extreme torque with fast response and robust build quality, making it a strong choice where precision, speed and durability are required.

Specifications

Brand Power HD
