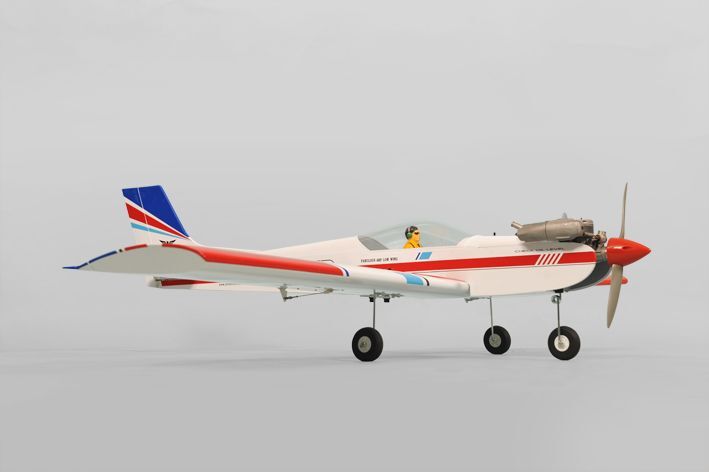

Phoenix Model Tiger 3 RC Plane, .40 Size ARF, PHN-PH036

Description

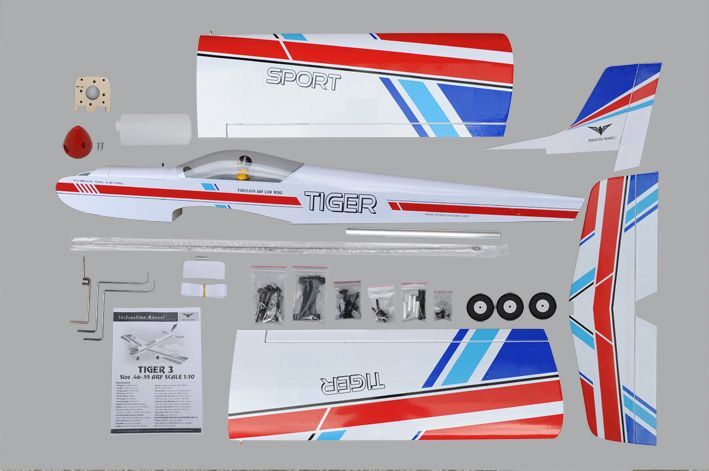

The Tiger 3, featuring a semi symmetrical wing section, makes this ARF quite simple to fly and will have you headed in the right direction to becoming an expert flyer. The Tiger 3 is all Balsa and Plywood construction. All the necessary hardware is included (servo wire, fuel tank, wheel/landing gear, etc). You simply require an engine (or an electric motor) and a radio system.

Features:

Designed for compatibility with both GP and EP flight
Strong Light Weight Construction
High-quality hardware package included

Specifications:

Wingspan: 1600mm (63in)
Length: 1360mm (53.5 in)
Flying weight: 2500-2700 gr
Wing area: 42.8 dm2
Wing loading: 60g/dm2
Wing type: Naca airfoils
Covering type: V-kote film
Spinner size: Plastic 58mm (included)
Radio: 4 channel minimum (not included)
Servo: 5 standard servo: 2 aileron; 1 elevator; 1 rudder; 1 throttle (not included)
Recommended receiver battery: 4.8-6V / 800-1200mAh NiMH (not included)
Servo mount: 21mm x 42 mm
Propeller: suit with your engine
Engine: .46-.55 / 2-stroke (not included)
Motor: brushless outrunner 1000-1400 W, 480 KV (not included)
Gravity CG: 75-85 mm (2.9-3.3 in) Back from the leading edge of the wing, at the fuselage
Control throw Ailerons: Low: 8mm up/down, 10% expo; High: 10mm up/down, 10% expo
Control throw Elevators: Low: 8mm up/down, 12% expo; High: 10mm up/down, 12% expo
Control throw Rudder: Low: 25mm right/left, 15% expo; High: 40mm right/left, 15% expo
Experience level: Intermediate
Plane type: Low wing sport

Recommended Motor and Battery Set Up:

Motor: .46 (not included)
Lipo cell: 6cells / 4000-5000mAh (not included)
Esc: 50-70A (not included)
