NCE Decoder N14IP

NCE Decoder N14IP

$49.99

Description

Description

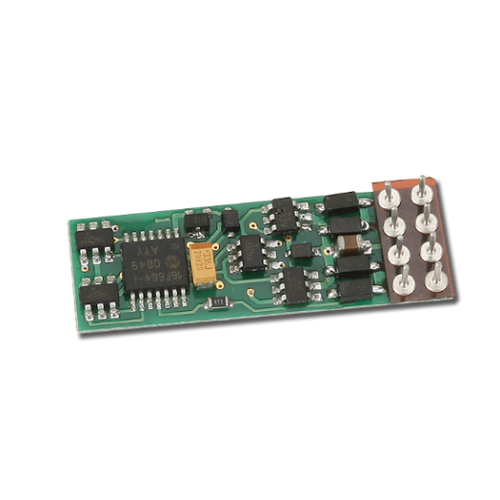

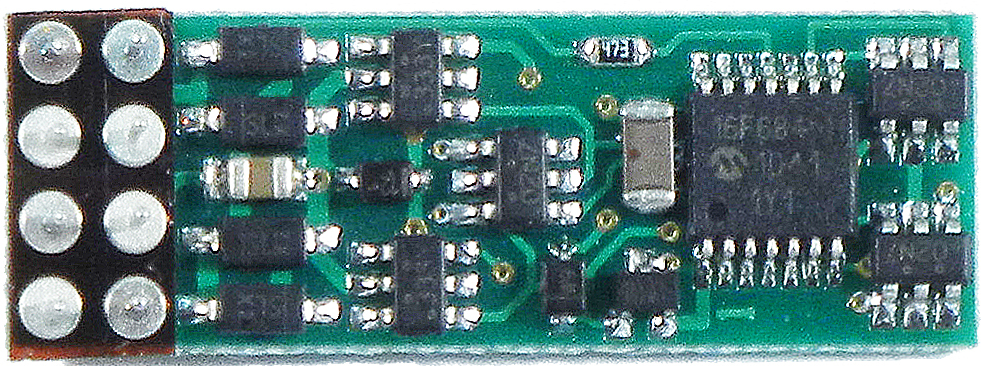

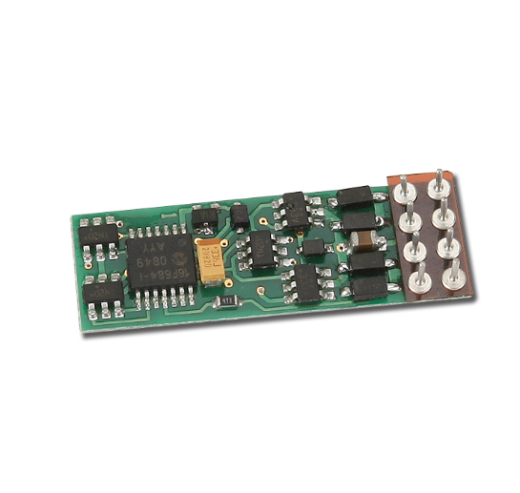

NCE HO/N scale 8-pin EPF (extended packet format) plug-in decoder (Version 3.5). Four functions and 15 different lighting effects. Easy to install. Instructions included. Fits standard NMRA medium 8-pin DCC socket.

Features:

  • Silent RunningTM..motor drive

  • Torque Compensation for ultra smooth low speed performance

  • Programmable Start, Mid and Maximum speed works for all speed modes

  • Motor rating 1.0 Amp continuous, 1.25 Amp peak (stall)

  • 4 function outputs each have lighting effects generators

  • Select from 15 different lighting effects (Mars, strobes, beacon, flicker, etc)

  • Lighting outputs can be mapped to different functions

  • Uploadable speed table interpolated to 128 speed steps

  • Decoder assisted consisting

  • Support for all forms of DCC programming

  • Decoder programming lock mechanism

  • Brake on DC feature assists automatic train control

Dimensions: 29.2mm x 10.2mm x 3.1mm (1.15 x .4 x .12)

Specifications

Brand NCE DCC
