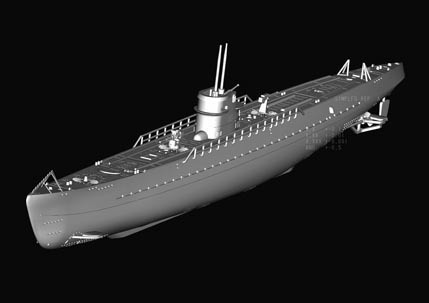

HobbyBoss 1/350 DKM Navy Type lX-A U-Boat Plastic Model Kit [83506]

Designed in 1935-1936 as large ocean-going U-boats, they were derived from type IA.

Diving depth designed as 100m operational and 200m crush depth (many boats went much deeper and survived).

Fitted with 6 torpedo tubes below the waterline (4 at the bow and 2 at the stern) they carried 22 torpedoes.

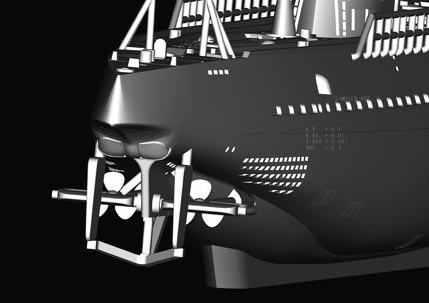

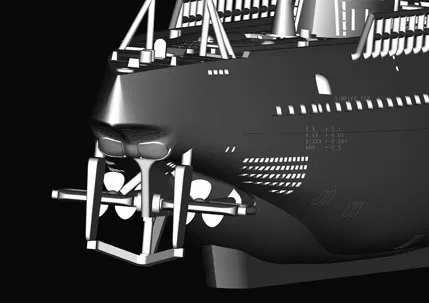

They had the same hydroplane and rudder layout as the VIIC.

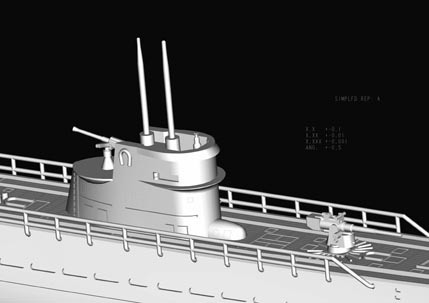

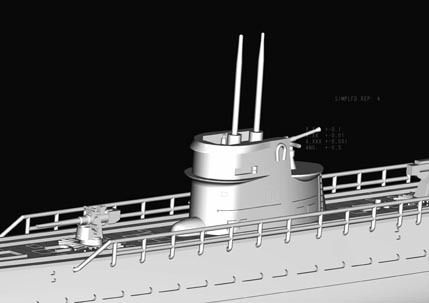

One periscope in the control room (deleted from types IXC onwards) and two in the tower.Type IX had 5 external torpedo containers (3 at the stern and 2 at the bow) which stored 10 additional torpedoes.

As mine-layers they could carry 44 TMA or 66 TMB mines.

Secondary armament was provided by one large Utof 105/45 gun with about 110 rounds. AA armament differed throughout the war.

Parament Item No 83506 Item Name DKM Navy Type lX-A U-Boat Bar Code 6939319235060 Scale 1:350 Item Type Static kit Model Dimension Length: 219mm Beam: 19mm Total Plastic Parts 43pcs Total Sprues 2 sprue, upper hull and lower hull Chromeplate Parts n/a Camouflage Scheme German Navy Resin Parts n/a Metal Parts n/a Photo Etched Parts 2pcs Film Accessory n/a Released Date 2010-06 More Features The kit consists of 25 parts in light grey plastic,18 Photo etched parts - Photo Etched parts for handrails and stand.

Key Specifications

• Scale: 1/350

Full Specifications
