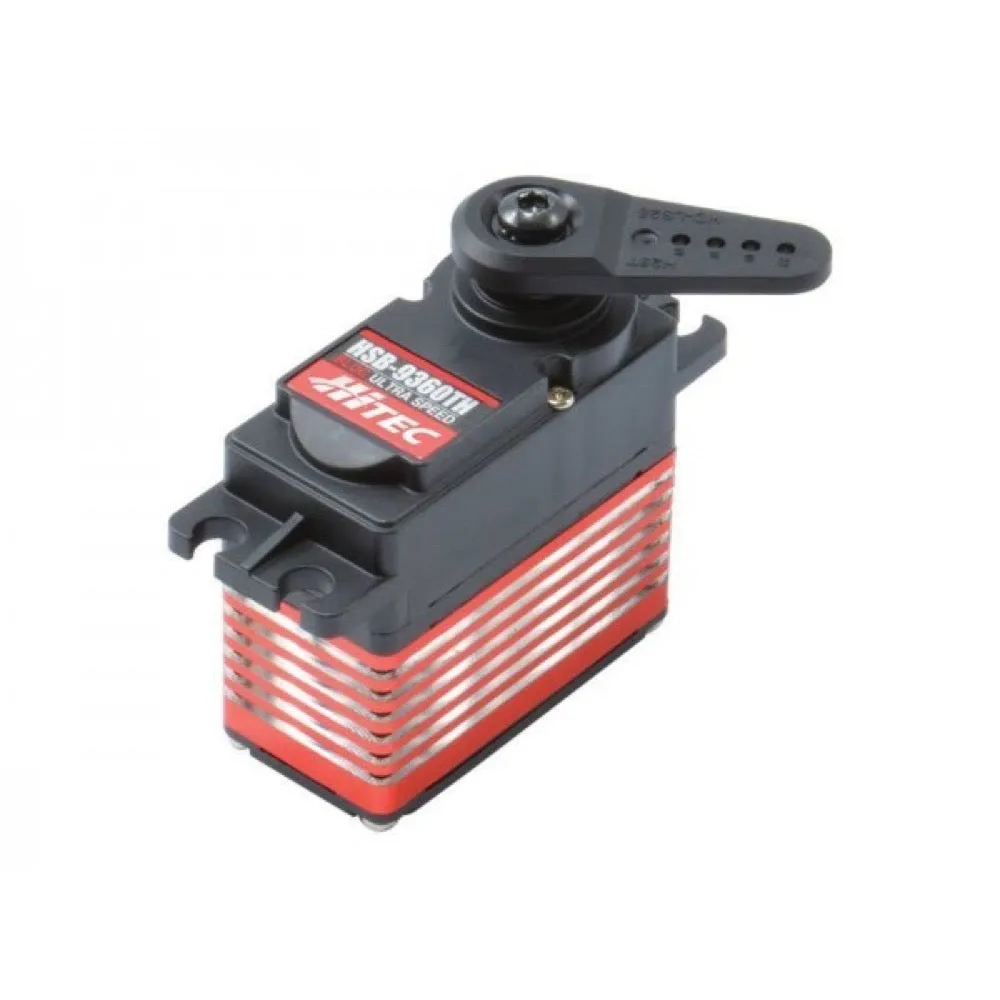

Hitec HSB-9360TH Digital HV Brushless High Speed Servo

Hitec HSB-9360TH Digital HV Brushless High Speed Servo

$339.99

Description

With ultra-efficient Neu brushless motors, titanium gear trains, low current consumption and constant output power, the HSB-93XX series of servos is the perfect match for the most discriminating pilots and racers. The HSB-9360’s speed is ideal for helicopter pilots.

Programmable Functions

- End Point Adjustments

- Direction

- Fail Safe

- Dead Band

- Speed (Slower)

- Soft Start Rate

- Data Save / Load

- Program Reset (From File)

Features

- Programmable 12Bit PWM Digital Amplifier

- Custom Long Life Brushless Motor

- 1M Cycle Long Life Potentiometer

- Constant Output Torque

- Wide Operating Voltage (5 ~ 9 Volts DC)

- Dual Ball Bearing Supported Output Shaft

- Dust Resistant and Splash Proof Case

- 25Tooth Output Spline

- Hybrid Nylon Reinforced Plastic and Aluminum Case

- Low Power Consumption

Specs

- Operating Voltage Range (Volts DC): 6.0V ~ 7.4V

- Speed (Second @ 60°): 0.08 ~ 0.06

- Maximum Torque Range oz. / in.: 236

- Maximum Torque Range kg. / cm.: 17

- Current Draw at Idle: 27 mA

- No Load Operating Current Draw: 250 mA

- Stall Current Draw: 2,100 mA

- Dead Band Width: 1 µs

- Dimensions (Metric): 40.0 x 20.0 x 38.0

- Weight (Gram): 68

- Circuit Type: EBL Digital

- Motor Type: NeuCastle Brushless

- Gear Material: Titanium

- Bearing Type: Dual Ball Bearing

- Output Shaft (type / Ømm): H25T

- Case Material: Plastic / Aluminum

- Dust / Water Resistance: Splash Proof

- Connector Gauge (AWG) / Strand Count: 20 / 80

Full Specifications

ClassTypeServos & Accessories
List419
PartTypeElectronics

Specifications

Brand Hitec
