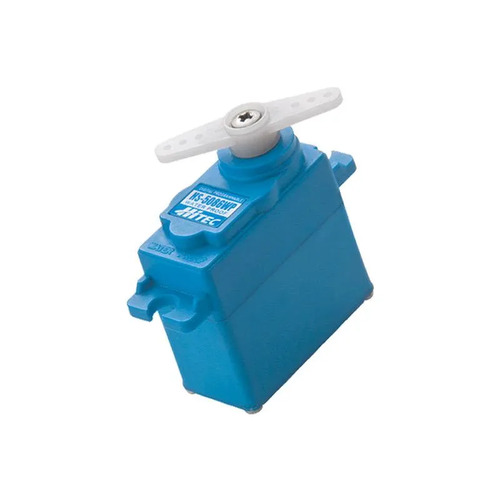

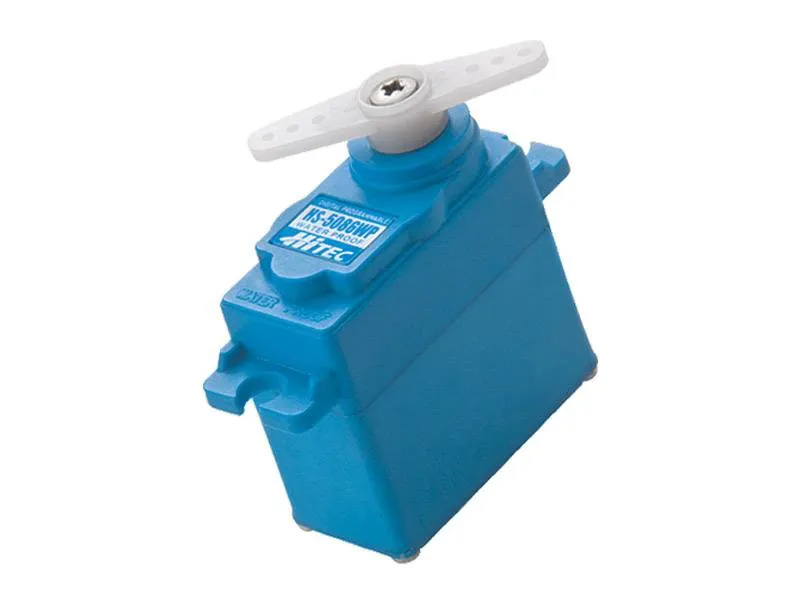

Hitec HS-5086WP Digital Mini Waterproof Servo

Hitec HS-5086WP Digital Mini Waterproof Servo

$98.99

Description

The HS-5086WP is the smallest in Hitec's class of waterproof servos. With heavy-duty metal gears and a ball bearing supported output shaft, the HS-5086WP is among the most durable and reliable micro servo for wet conditions. Possessing the same size as our popular HS-85MG and the industry's first IP67*rating, this spunky mini will keep your RC vehicle, boat, aircraft or robot watertight, no matter what the weather or surroundings.

Programmable Functions

- End Point Adjustments

- Direction

- Fail Safe

- Dead Band

- Speed (Slower)

- Data Save / Load

- Program Reset

Features

- Metal Gear with MP First Gear

- Top Ball Bearings

- 3Pole Cored Ferrite Motor

- Industry's First IP67Rated Waterproof Case

- * IP = International Protection Code | 6 = Dust Tight | 7 = Immersion up to 1M

- Programmable Circuit

Specs

- Operating Voltage Range (Volts DC): 4.8V ~ 6.0V

- Speed (Second @ 60°): 0.18 ~ 0.15

- Maximum Torque Range oz. / in.: 42 ~ 50

- Maximum Torque Range kg. / cm.: 3.0 ~ 3.6

- Current Draw at Idle: 3 mA

- No Load Operating Current Draw: 280 mA

- Stall Current Draw: 1,800 mA

- Dead Band Width: 2 µs

- Dimensions (Metric): 31.0 x 15.2 x 31.0

- Weight (Gram): 28.5

- Circuit Type: G1 Programable Digital

- Motor Type: 3 Pole Metal Brush Ferrite

- Gear Material: Metal

- Bearing Type: Top Ball Bearing

- Output Shaft (type / Ømm): Standard 24

- Case Material: Plastic

- Dust / Water Resistance: IP 67

- Connector Gauge (AWG) / Strand Count: 25 / 40

Full Specifications

ClassTypeServos & Accessories
List419
PartTypeElectronics

Specifications

Brand Hitec
