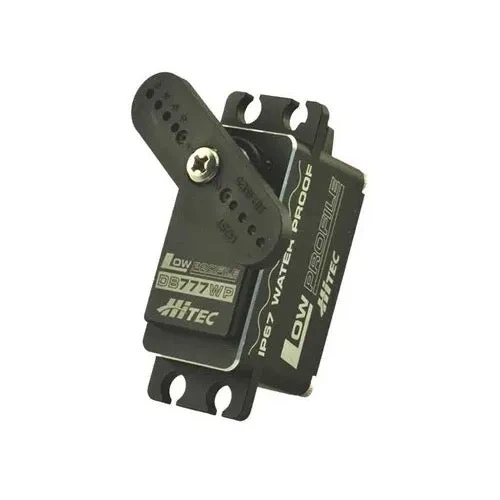

Hitec DB777WP BLDC Low Profile Waterproof Servo

Hitec DB777WP BLDC Low Profile Waterproof Servo

$233.99

Description

Hitec is excited to introduce the new addition to their D-Series servo line, the high-performance, low profile DB777WP. Designed with a full metal, IP-67 rated waterproof case, this advanced, programmable servo is our fastest, low profile option for 1/10 buggy and touring car drivers.

Features

- Voltage range is 4.8V - 8.4V

- Ultra-efficient brushless motor

- 32-Bit MCU Technology / 4096 Resolution

- Smart Sense technology for servo analytics

- High response, high-resolution circuitry

- Full metal case

- Full programmability

- 1M cycle, long-life potentionmeter

- IP-67 waterproof rated

- H25T - industry standard output spline

Specs

- Operating Voltage Range (Volts DC): 6.0V ~ 7.4V

- Speed (Second @ 60°): 0.08 ~ 0.06

- Maximum Torque Range oz. / in.: 111 ~ 153

- Maximum Torque Range kg. / cm.: 8.0 ~ 11.0

- Current Draw at Idle: 35mA / 40mA

- No Load Operating Current Draw: 250mA / 350mA

- Stall Current Draw: 3500mA / 4500mA

- Dead Band Width: 1usec

- Dimensions (Inches): 1.61 x 0.83 x 1.04 in.

- Dimensions (Metric): 41.0 x 21.0 x 26.5

- Weight (Ounces): 2.4

- Weight (Gram): 68

- Circuit Type: 32bit Programable Digital

- Motor Type: Brushless

- Gear Material: Metal

- Bearing Type: Brushless

- Output Shaft (type / Ømm): H25T

- Case Material: Aluminum

- Dust / Water Resistance: IP-67 Rated

- Connector Gauge (AWG) / Strand Count: 20AWG / 80

Full Specifications

ClassTypeServos & Accessories
List419
PartTypeElectronics

Specifications

Brand Hitec
