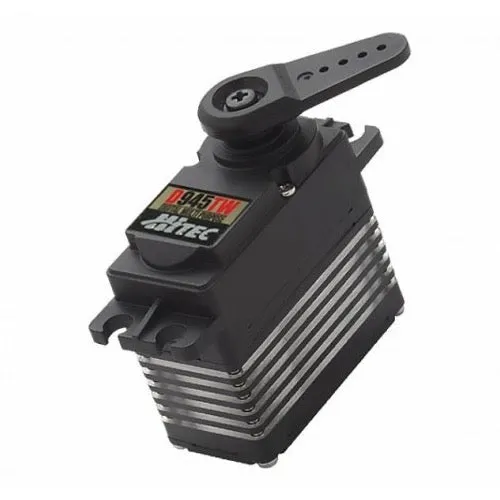

Hitec D946TW Digital HV High Torque Servo

The titanium D-945TW is part of our D-Series servo line. All Hitec D-Series servos have been designed using our brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.

Features

- Programmable PWM Digital Amplifier

- 32Bit MCU with 12Bit ADC Circuitry

- 4096 Resolution

- 1M Cycle Long Life Potentiometer

- Wide Operating Voltage (4.8 ~ 8.4 Volts DC)

- Dual Ball Bearing Supported Output Shaft

- 25Tooth Output Spline

- Coreless Metal Brush Motors

- Nylon Reinforced Plastic Upper and Lower Case

- Diamond Cut Aluminum Heat Sink Center Case

- Dust Resistant and Splash Proof Case

Specs

- Operating Voltage Range (Volts DC): 4.8V ~ 6.0V ~ 7.4V

- Speed (Second @ 60°): 0.16 ~ 0.12 ~ 0.10

- Maximum Torque Range oz. / in.: 194 ~ 250 ~ 319

- Maximum Torque Range kg. / cm.: 14.0 ~ 18.0 ~ 23.0

- Current Draw at Idle: 30 mA

- No Load Operating Current Draw: 470 mA

- Stall Current Draw: 6,200 mA

- Dead Band Width: 1 µs

- Dimensions (Inches): 1.57 x 0.79 x 1.50

- Dimensions (Metric): 40.0 x 20.0 x 38.0

- Weight (Ounces): 2.4

- Weight (Gram): 68

- Circuit Type: 32bit Programable Digital

- Motor Type: Coreless Metal Brush

- Gear Material: Titanium

- Bearing Type: Dual Ball Bearing

- Output Shaft (type / Ømm): H25T

- Case Material: Plastic / Aluminum

- Dust / Water Resistance: Splash Proof

- Connector Gauge (AWG) / Strand Count: 20 / 80
