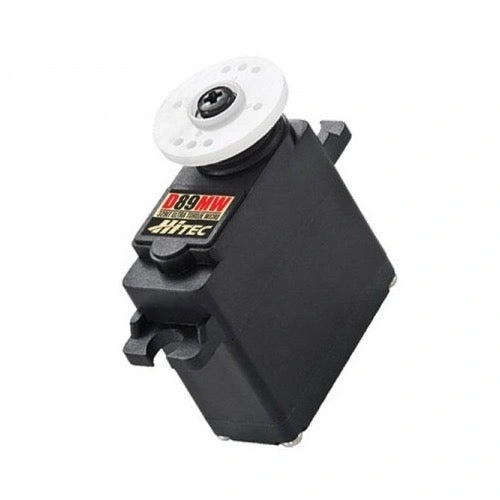

Hitec D89MW Digital Micro Ultra Torque Servo

Hitec D89MW Digital Micro Ultra Torque Servo

$99.99

Description

With 32-bit high resolution, ultra-response technology and wide voltage operation, the mighty micro-sized D89MW delivers solid power in a lightweight package. Its efficient coreless motor makes this mini servo a standout in its class.

Specs

- Operating Voltage Range (Volts DC): 4.8V ~ 7.4V

- Speed (Second @ 60°): 0.17 ~ 0.11

- Maximum Torque Range oz. / in.: 74 ~ 118

- Maximum Torque Range kg. / cm.: 5.3 ~ 8.5

- Current Draw at Idle: 30 mA

- No Load Operating Current Draw: 300 mA

- Stall Current Draw: 2,900 mA

- Dimensions (Inches): 1.14 x 0.51 x 1.18

- Dimensions (Metric): 29.0 x 13.0 x 30.0

- Weight (Ounces): 0.88

- Weight (Gram): 25

- Circuit Type: 32bit Programable Digital

- Motor Type: Coreless Metal Brush

- Gear Material: 5 Metal Gears

- Bearing Type: Dual Ball Bearing

- Output Shaft (type / Ømm): 25 / 6

- Case Material: Plastic

Full Specifications

ClassTypeServos & Accessories
List419
PartTypeElectronics

Specifications

Brand Hitec
