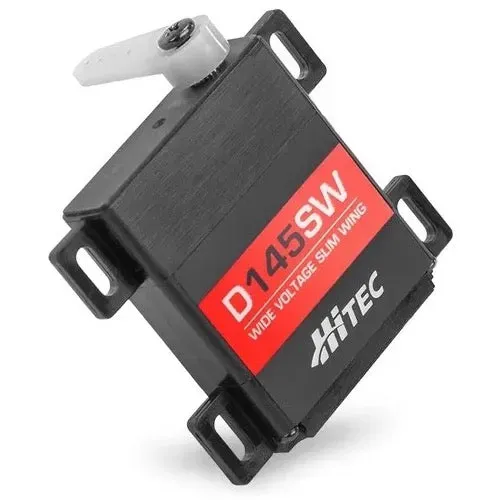

Hitec D145SW Digital HV Programmable Wing Servo

Hitec D145SW Digital HV Programmable Wing Servo

$103.99

Description

Hitec HS-D145SW 10mm Slim Wing 32 Bit Programmable & High Response Steel Gear servo

Features

- 10mm thickness to suit the thinnest airfoils

- 6.0 kg.cm of power @ 7.4V

- Programmable 32 Bit Wide Voltage

- High Resolution & High Response

- Smart Sense Technology

- Programmable

- Digital MOSFET Amplifier

- High positioning speed

- High positioning force

- High holding force

- Steel gears

- 2 ball bearings

- 25 tooth servo horn

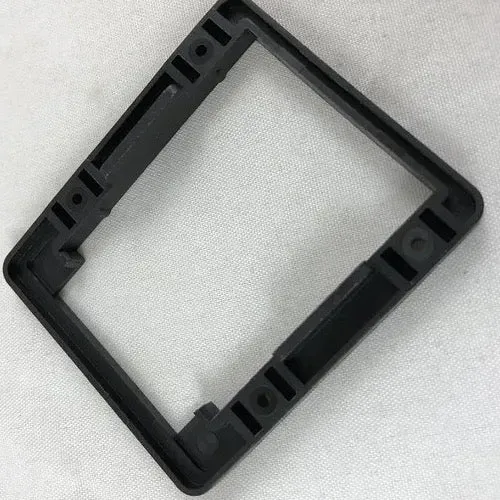

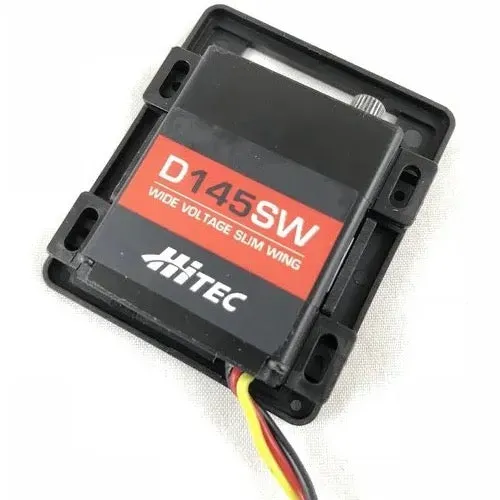

- Wing servo mounting frame is included

- The long life is due to the uniquely designed steel transmission and the robust servo housing.

- The D145SW surface servo is ideally suited for thin surface profiles in glider models and an application as a motorgearbox combination for industrial applications.

Specs

- 4.8 V Torque: 3.9 kg.cm

- 4.8 V Speed: 0.21sec/60°

- 6.0 V Torque: 4.9 kg.cm

- 6.0 V Speed: 0.17sec/60°

- 7.4 V Torque: 6.0 kg.cm

- 7.4 V Speed: 0.14sec/60°

- Operation Voltage: DC 3.5~8.4V

- Dimensions: 30.0 x 10.0 x 37.0mm

- Weight: 24g

Full Specifications

ClassTypeServos & Accessories
List419
PartTypeElectronics

Specifications

Brand Hitec
