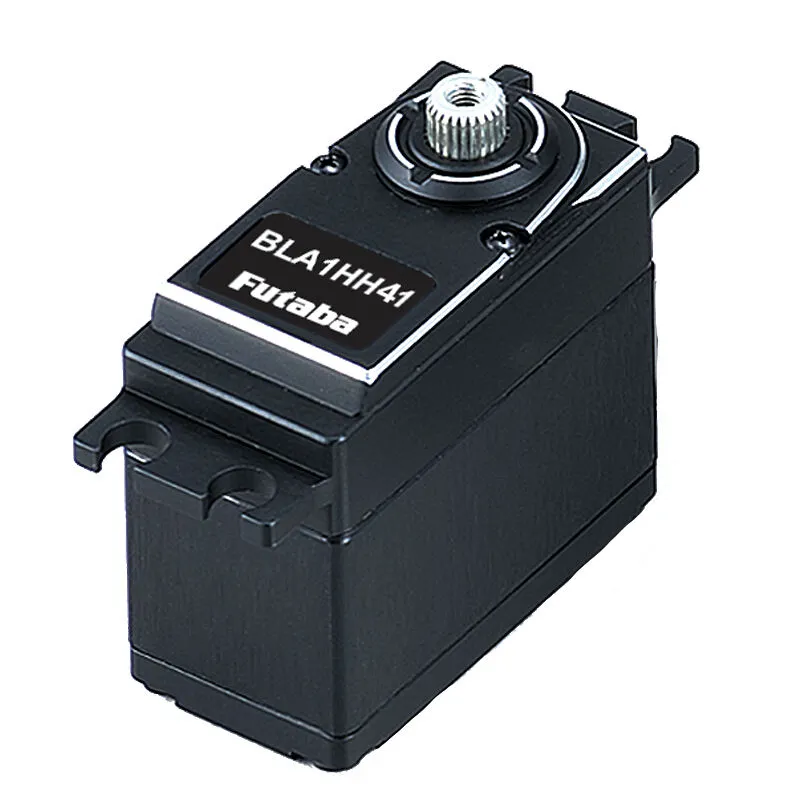

Futaba BLA1HH41 44KG Industrial Brushless Servo [FUTSBLA1HH41]

Brushless Digital Servo

• – Metal gear construction with aluminium casing.
• – Cable length – 400 mm
• – IP64 level water/dust resistance
• – Interface – 6-Pole Connector (Signal, V+, GND, Position Monitor (+/-), Body-GND)
• – Dimensions – 40.5 x 21.0 x 38.4 mm or 1.59 x 0.83 x 1.51 in
• – Weight – 100 g or 3.53 oz
• – Torque at 14.8V – 44 kgf*cm or 611 oz*in
• – Speed at 14.8V – 0.1 sec/60 degrees
