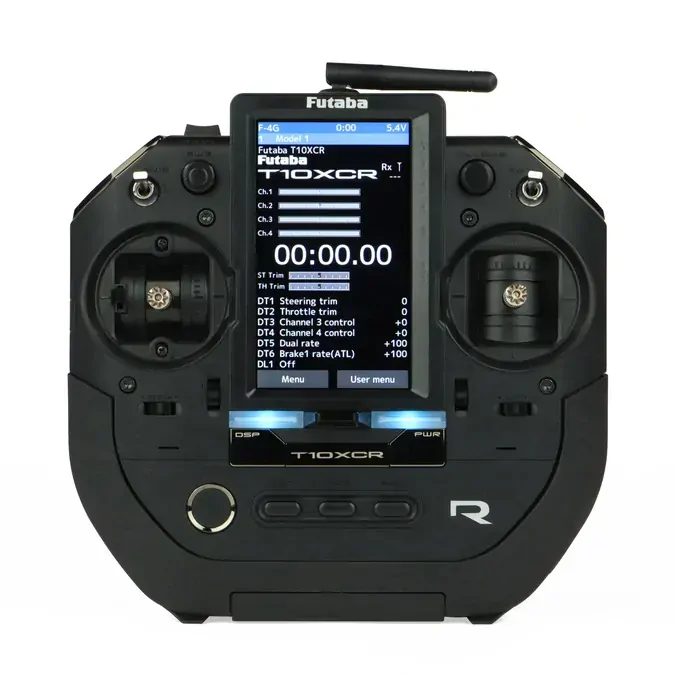

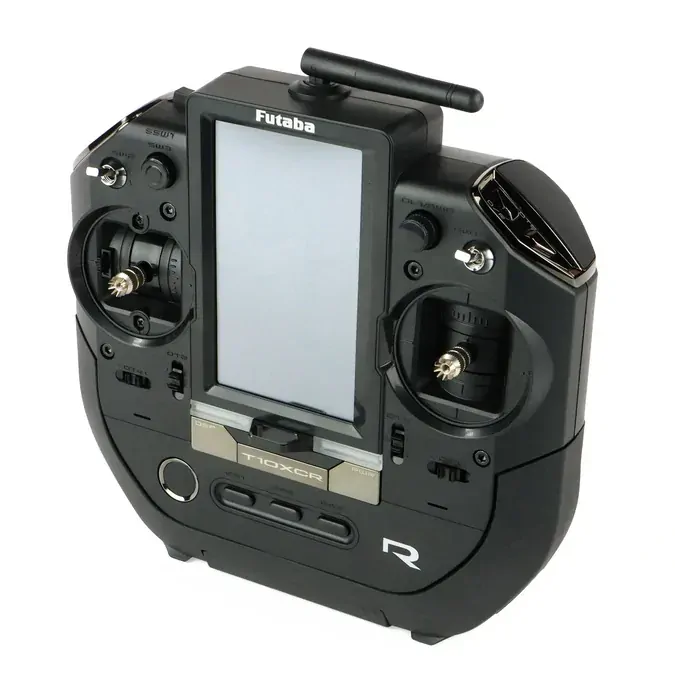

Futaba 10XCR 10-Channel Transmitter w/ R404SBS Receiver [FUT10XCR404SBS]

Futaba 10XC inc R404SBS Receiver (Dry)

High-end stick-type model with fastest response function

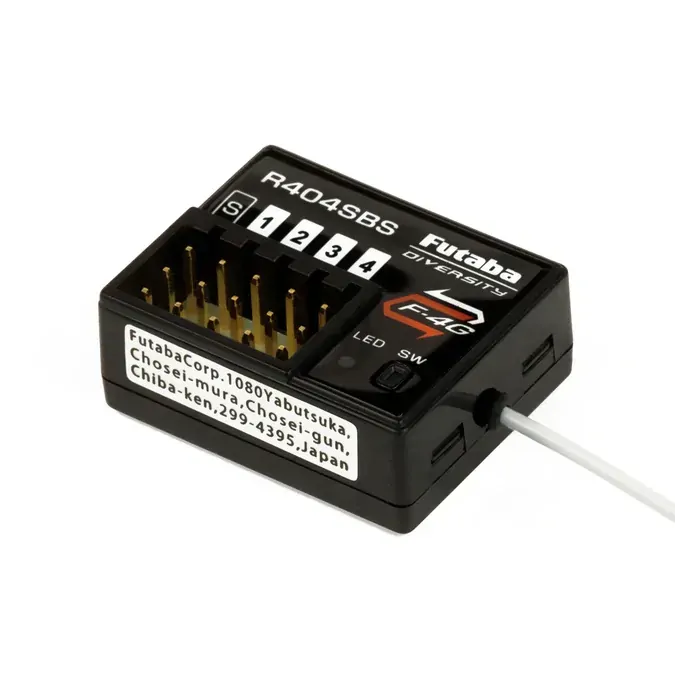

The long-awaited latest model for stick users is finally here. Supporting Futaba's highest speed system, "F-4G," you can experience the same UR mode response as the 10PX. Separate throttle and brake stiffness adjustments allow you to tailor your ride to your preferences. Other features not available on the T7XC include seven lighting colors and 15 levels of feel. ★The T10XCR transmitter is compatible with "F-4G," "T-FHSS SR," "T-FHSS," "S-FHSS," and "MINI-Z." *Not compatible with the MINI-Z module. ★The R404SBS and R404SBS-E are receivers compatible with "F-4G."

Ultimate maneuverability combined with cutting-edge materials

The T10XCR is designed specifically for competition and will bring a new level of speed and stability to your riding from the moment you pick it up.

Without even realizing it, you'll improve your time and achieve stable driving - all for the sake of even greater speed.

 First stick radio with F-4G

　Our fastest communication system improves operational response and expands the number of operable channels to 10.

● Optimized signal processing for the control system

　It achieves both high-level speed and smooth response to operations, resulting in an easy-to-use operating feel even with high-speed response.

●Uses ceramic ball bearings

　Compared to conventional metal ball bearings, the use of ceramic ball bearings provides a smoother feel with lower friction and higher durability.

●Material optimization (lightest in its class)

　Titanium screws and glass fiber reinforced resin (GF) are used for the handle mount, resulting in a weight reduction of 23g compared to previous models.

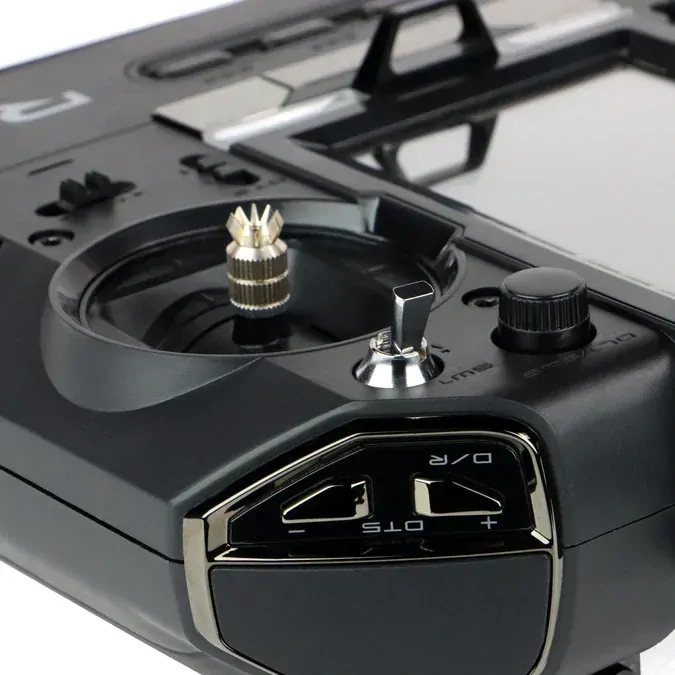

*Throttle stick, accelerator side and brake side can be adjusted independently

　You can fine-tune the stick feel to your liking. The independent brake stiffness adjustment mechanism is an industry first, allowing for more sensitive braking operation.

First stick radio with feeling mode: Equipped with a new feeling mode that can be adjusted in 15 steps, allowing you to achieve the optimal operating feel in any condition.

● Equipped with three edit switches that allow you to register and call up any setting screen.

● Two assignable switches have been added to the T7XC, and the T10XCR now has eight, providing greater flexibility when setting up.

● The push switch on the back has been redesigned to improve the click feeling, providing reliable feedback to the driver even during a race. (Patented)

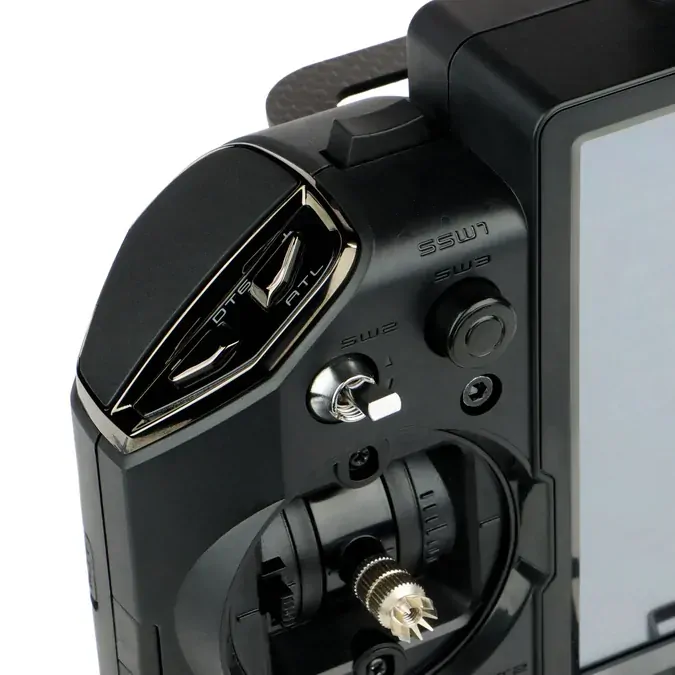

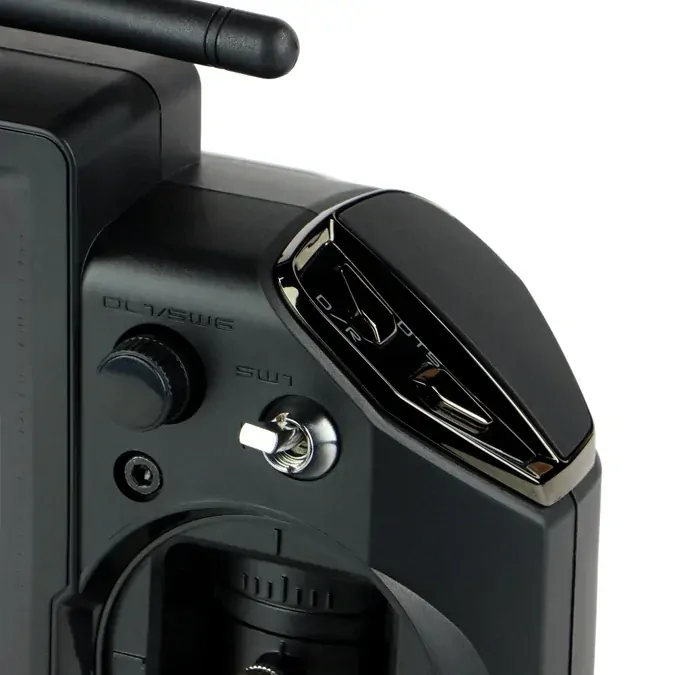

● In addition to the conventional push switch and toggle switch, a new 3-position seesaw switch with excellent operability has been adopted.

● New function "ST (Steering) Trim Memory": Instantly adjusts the steering trim to a preset trim position, making trim adjustments easier for gasoline cars and other long races.

●Telemetry OFF sign: When telemetry is OFF, the LED on the back of the LCD monitor lights up to alert third parties.

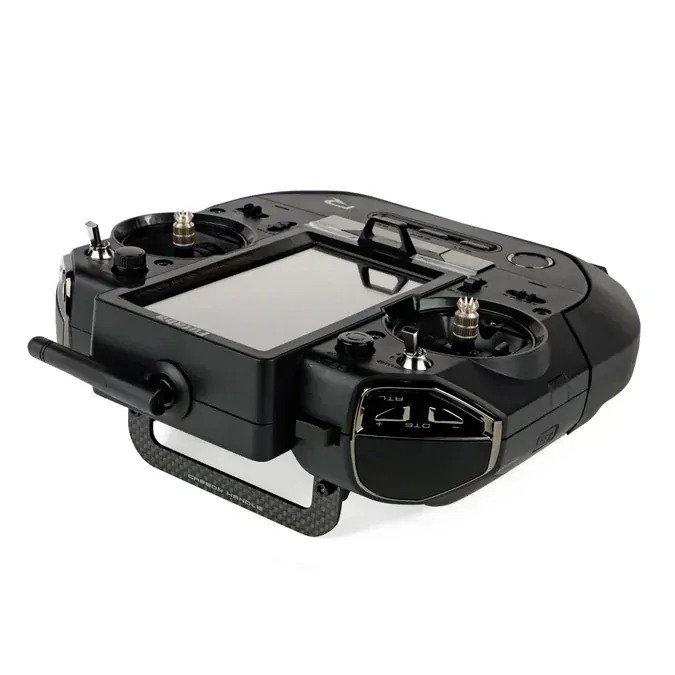

●Adjustable angle antenna: The antenna direction can be adjusted to suit the driver's posture for optimal communication.

●Premium black plated parts: A more chic look than previous models, creating a luxurious feel. Also prevents unnecessary diffuse reflection of sunlight when used outdoors.

●Uses 7-color PILOT LED: You can change the light color to your preference.

● Compatible with LiPo 2000mAh batteries for longer ride times.

Option:

3D carbon handle for T10XCR


Functions and specifications

Setup Menu

●Receiver settings ( compatible with F-4G/T-FHSS SR/T-FHSS/FHSS /MINI-Z EVO/MINI-Z EVO 2)

Please refer to here　for a list of compatible receivers for each system .

Acceleration

●Condition

●Idol Up

●Channel limiter: You can limit the maximum servo movement.

●Channel setting: A function to assign steering or throttle to any channel.

●Throttle mode

●Sub trim

●Trim/dial settings

●Switch settings

●Endpoint, reverse, D/R, ATL, failsafe, servo view

Model Menu

●Model selection, model copy

●Model name

●Model type

●Data reset

Mixing Menu

●Steering mixing

●Brake mixing

●Gyro mixing

●4WS mixing

●Dual ESC

●CPS mixing (1, 2, 3): When using CPS-1 (optional), you can set the LED lighting pattern, etc.

●Tank mixing: Mixing for tracked vehicles such as tanks.

●Program mixing (1, 2, 3, 4): It is also possible to set the mixing master to telemetry.

●Tilt mixing: This type of mixing is effective on boats.

●Winch mixing: This type of mixing is effective on crawlers.

Racing Menu

●ST Trim Memory ( New Function ) : The steering trim can be instantly moved to a preset trim position, making trim adjustments easier for gasoline cars and other long races.

●Curve (EXP)

Speed: Can be set independently for steering and throttle. The throttle also features a "Curve" mode that is effective for drag cars.

Traction control

●Feeling: If the response is too sensitive, a milder adjustment is added to make it easier to control.

●ABS

●Start

● Engine cut

●Telemetry menu, sensor list

●Drag Race (Transbrake): This is a mixture that is effective in drag races.

Accessories Menu

●Timer, lap list

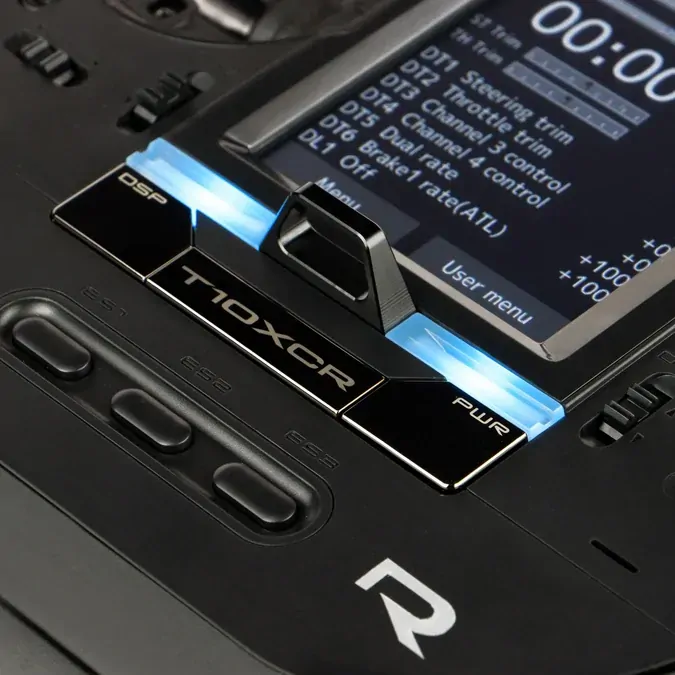

●Home/ES1/ES2/ES3 button settings: You can set the functions of the four buttons in front of the display to your preferred functions.

●Home screen settings: You can change to servo view, telemetry view, vehicle photo, etc.

● Index table: You can display the index table for DD (PAN) cars.

●Gear ratio table

●S.BUS Servo: You can configure the S.BUS servo.

●MC (ESC) link, gyro link: You can configure the ESC and gyro.

System Menu

●Display settings: Backlight, touch panel correction, etc. can be performed.

●Audio: You can adjust the volume of the operation sounds of each switch, alarm sounds, and telemetry guide.

●Battery settings: By setting the battery type, the appropriate battery alarm voltage will be obtained.

●Adjuster: For correcting the steering wheel and throttle trigger.

●Total timer

●Receiver update, servo update: Updates can be performed via the transmitter.

●System information

【accessories】

Transmitter (LiFe) battery FT2F1100B x 1 *Installed at the time of shipment (connector removed)

●Charger LBC-34D P × 1 piece

●Receiver connector dust cover

*The throttle ratchet plate is an optional accessory sold separately.
