Up to 30 amps continuous current with proper air flow and 35 amps burst current (15 seconds)

3.5A continuous current, 5V Switch-Mode BEC Circuit

Stronger BEC for support of most 3-axis stabilization systems

Drive up to 7 analog or 6 digital standard-size servos with the BEC

3- to 4-cell Li-Po, 9- to 12-cell Ni-MH/Ni-Cd input voltage

Programmable motor braking

Safe power-arm mode prevents accidental starts

Programmable low voltage cutoff with settings for 3-cell Li-Po (9.2V), 4-cell Li-Po (12V) or 74% of battery starting voltage

Programmable throttle input range (1.1ms–1.9ms or 1.2ms–1.8ms)

Programmable soft start for helis and airplanes

Auto motor shut down if signal is lost or there is interference

Programmable timing—5 user-selectable ranges for use with a large variety of brushless motors

Pre-wired connectors—E-flite EC3™ connector on battery input and 3.5mm gold bullet connectors on motor output leads

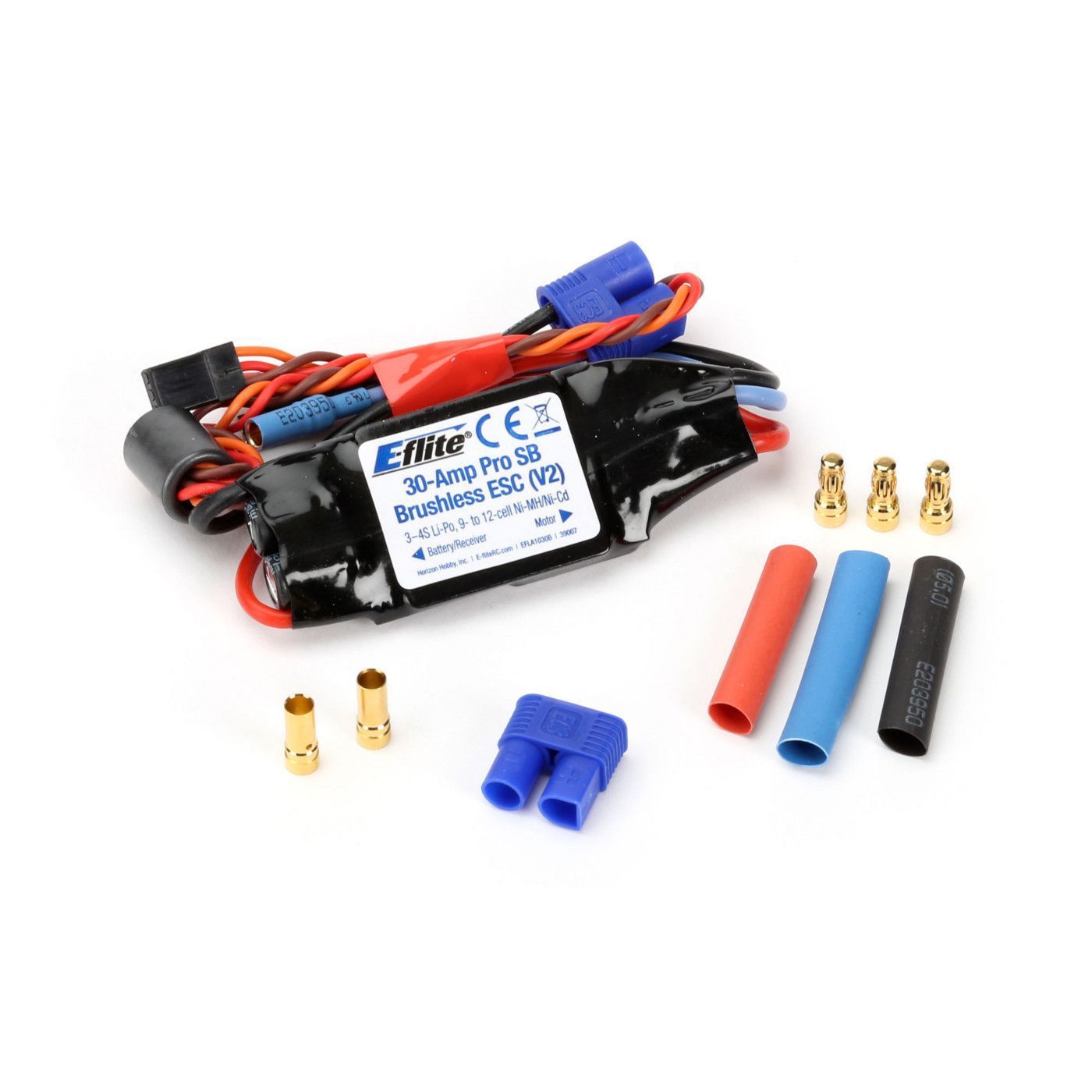

The E-flite® 30-Amp Pro Switch-mode BEC Brushless ESC (V2). This is a high-quality sensorless brushless electronic speed control with an integrated switch-mode BEC that is very lightweight and efficient. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication.


Barcode # 605482079164
Brand E-Flite
