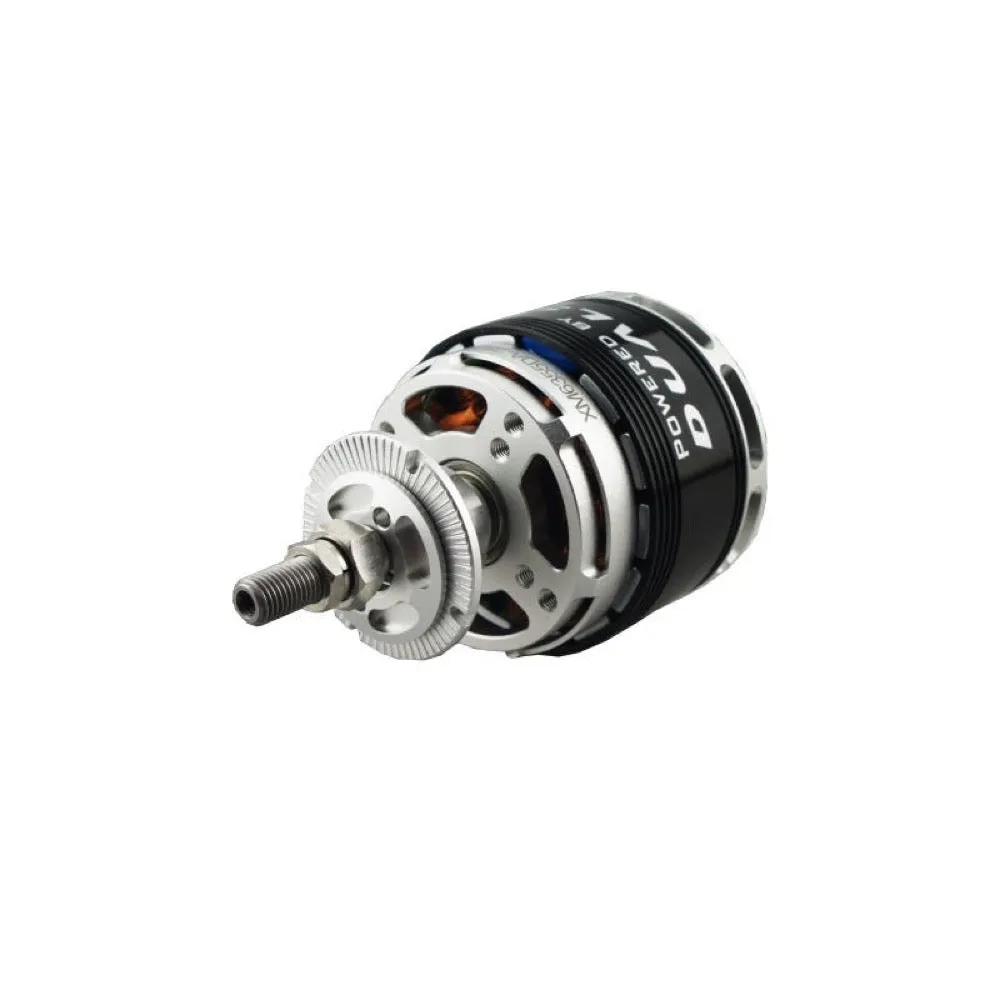

Dualsky XM6355DA-18 280kv Brushless Motor

Dualsky XM6355DA-18 280kv Brushless Motor

$458.99

Description

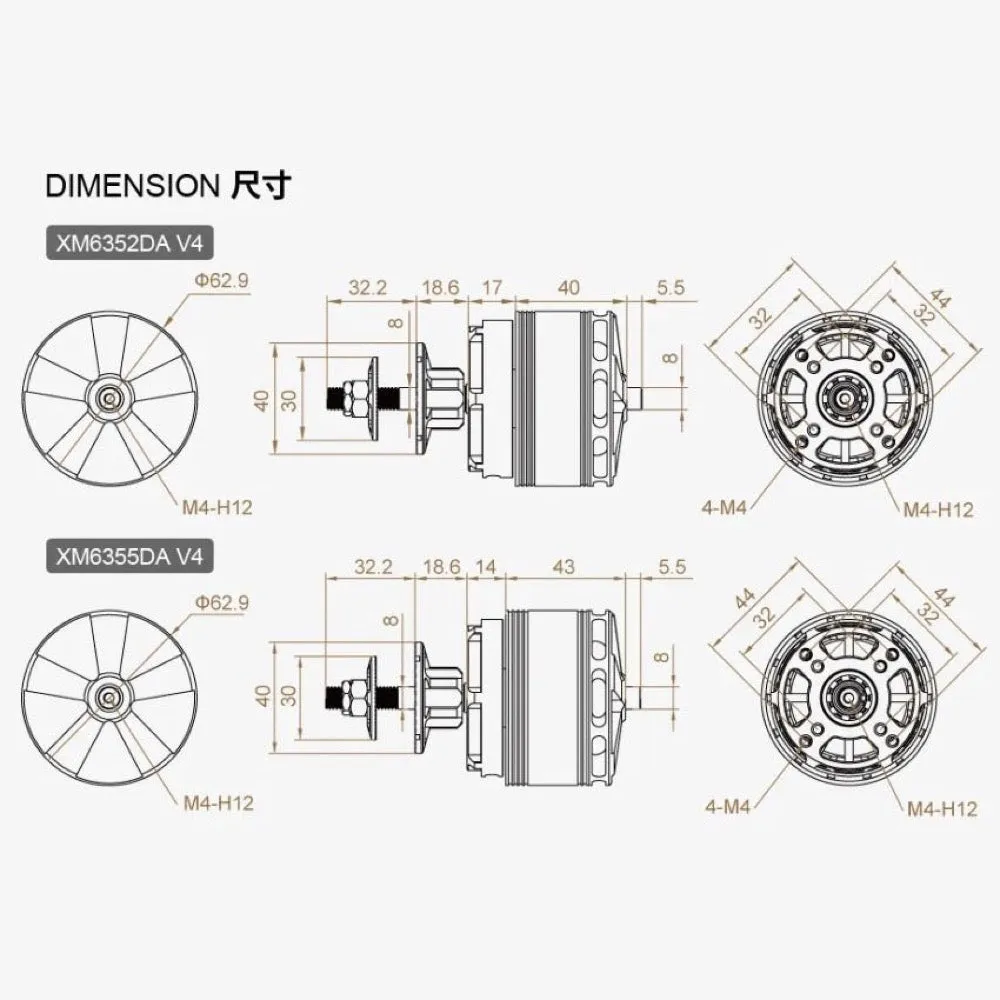

This is the new fourth-generation design DA motor by Dualsky. It is the 'standard power' for F3A models, and is also suited to gliders weighing up to 20kg. Features - Hollow shaft and lightweight parts overall weight is reduced by 7-10% in comparison to the DA V3. - New curved magnets torque increases from 12-15% in comparison to the DA V3 motor - With 3 EZO bearings and precise balanced rotors, the motors can be maintenance-free up to 1000 flights - Optimised rear support bearing (mount) - Centrifugal cooling fan Specification - Weight (g): 530 - Dimensions of stator (mm): 5325 - Diameter of Shaft (mm): 8 - Mounting holes (mm): See image #2 - Voltage: 32V - Peak Torque (N*M): 4.14 - KV of Motor (RPM/V): 280 - Io@10V (A): 1.15 - Resistance (Ri)(mOhm): 21.5 - Peak current (A): 97 - Peak power (W): 3104 - Recommended ESC: Summit 100HV (Pattern Flight Edition) - Weight of glider: Up to 20kg - Applications: Standard power for F3A (e.g bipe F3A)

Specifications

Brand Dualsky
