Dualsky XM6352EA-10 560kv Brushless Motor

Dualsky XM6352EA-10 560kv Brushless Motor

$272.99

Description

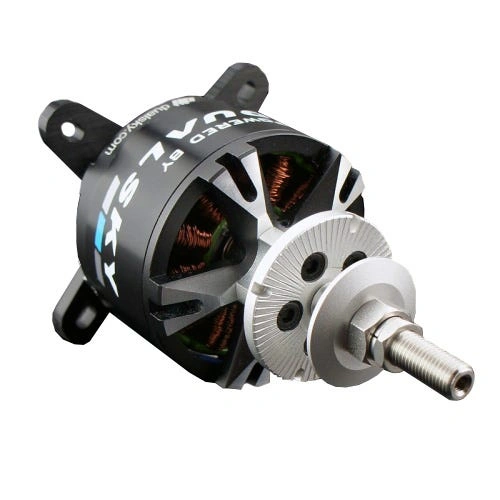

This is the Dualsky XM6352EA-10 Brusless Motor. The new V3 Dualsky XM6352EA-10 features a new Durotate rotor with an optimised back cover that reduces air noise, a new front cover that offers better heat dissipation and a higher density rotor and shell that reduces vibration. Add to this the use of thicker wire with high-temperature resistance and the net result is more power and improved efficiency. Features - Higher grade curved magnets - High efficiency, high density Silicon steel - Tighter tolerances allow a smaller air gap between the stator and the rotor - High grade enamelled silicon coated wire - Reduced air noise, less drag, more power - Lightweight - M8 propellor mount Specification - KV: 560 - Slots & Poles: 12N14P - Ri (mOhm): 7.4 - Io@10V (A): 3.7 - Efficiency Current (A): 60 - Burst Current (15S) [W]: 120 - Peak Power (15S) [A]: 2880 - Peak Torque [N*M]: 2.56 - Battery: 5S or 6S LiPo - Weight: 515g - Dimensions: (Dx L) 63.1 x 55mm - Dimensions of Stator (mm): 5322 - Shaft diameter: 8mm - Mounting holes: 4-M4, 32/32, 4-M4, 44/44 - Input connectors: DB4 - Reccomended propellers (5S): 15x6, 16x8 - Reccomended propellers (6S): 14x6, 15x8 - Recommended ESC: SUMMIT 120 - Application: 125E, .95-.120 2-stroke OR Up to .140 4-stroke Includes - Propeller mount - Motor mount - Screws - Female bullet connectors - Heat shrink

Specifications

Brand Dualsky
