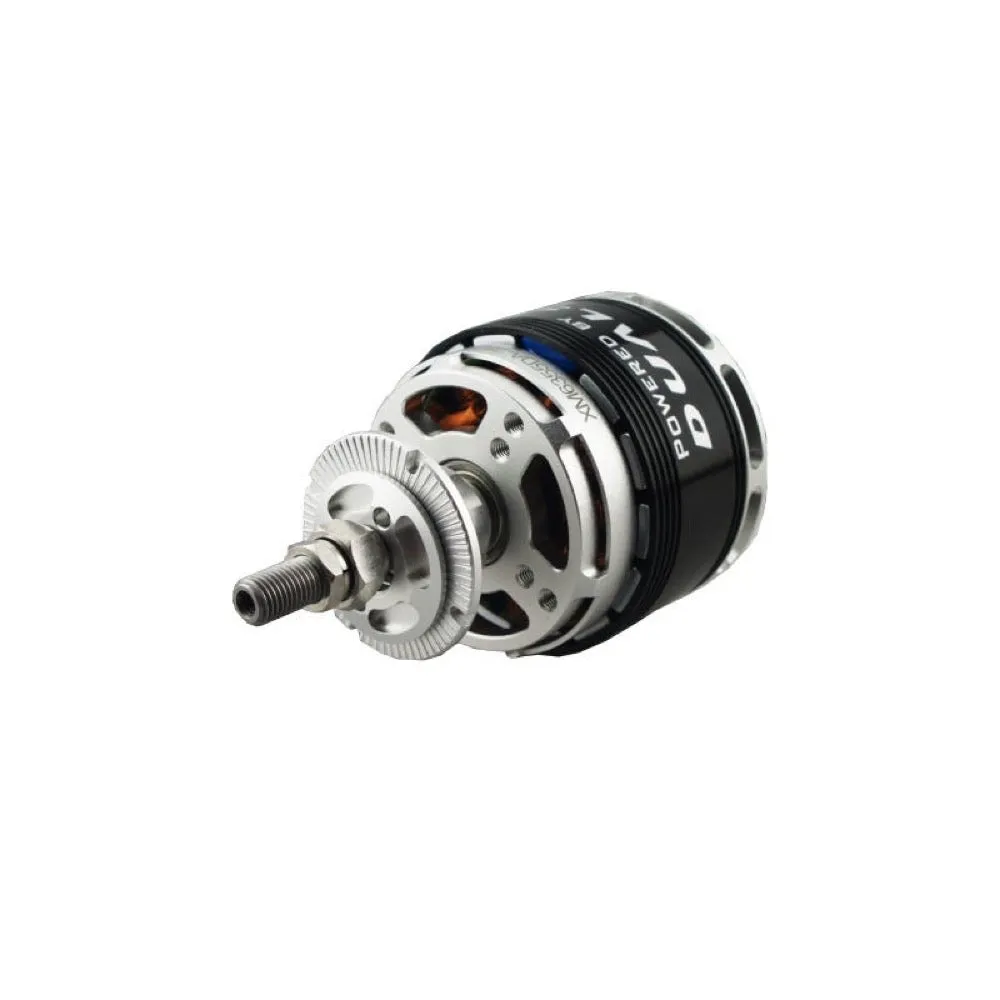

Dualsky XM6352DA-24 240kv Brushless Motor

Dualsky XM6352DA-24 240kv Brushless Motor

$358.99

Description

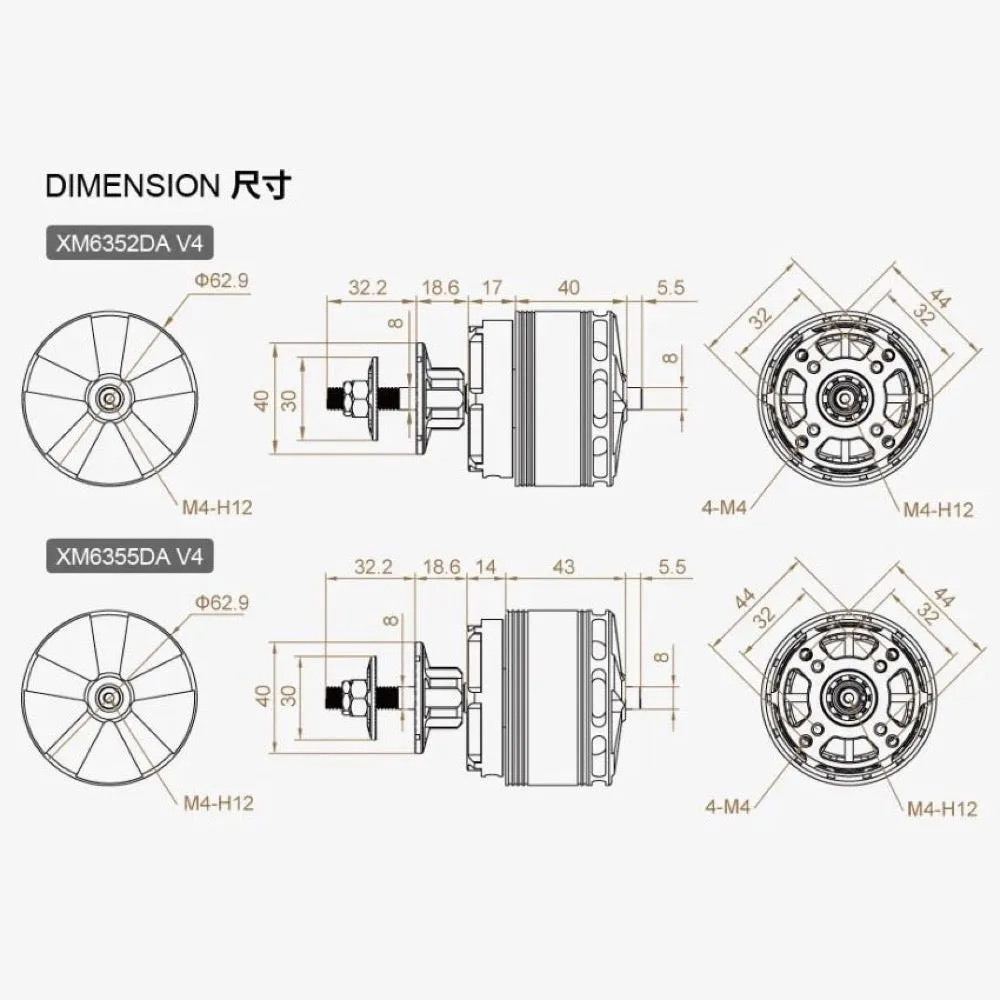

This is the new fourth-generation design DA motor by Dualsky. It is suitable for lightweight F3A models and gliders weighing up to 12kg. Features - Hollow shaft and lightweight parts overall weight is reduced by 7-10% in comparison to the DA V3. - New curved magnets torque increases from 12-15% in comparison to the DA V3 motor - With 3 EZO bearings and precise balanced rotors, the motors can be maintenance-free up to 1000 flights - Optimised rear support bearing (mount) - Centrifugal cooling fan Specification - Weight (g): 490 - Dimensions of stator (mm): 5322 - Diameter of Shaft (mm): 8 - Mounting holes (mm): See image #2 - Voltage: 32 - Peak Torque (N*M): 3.98 - KV of Motor (RPM/V): 240 - Io@10V (A): 0.8 - Resistance (Ri)(mOhm): 36 - Peak current (A): 80 - Peak power (W): 2560 - Recommended ESC: Summit 100HV (Pattern Flight Edition) - Weight of glider: Up to 12kg - Applications: Suitable for lightweight F3A models

Specifications

Brand Dualsky
