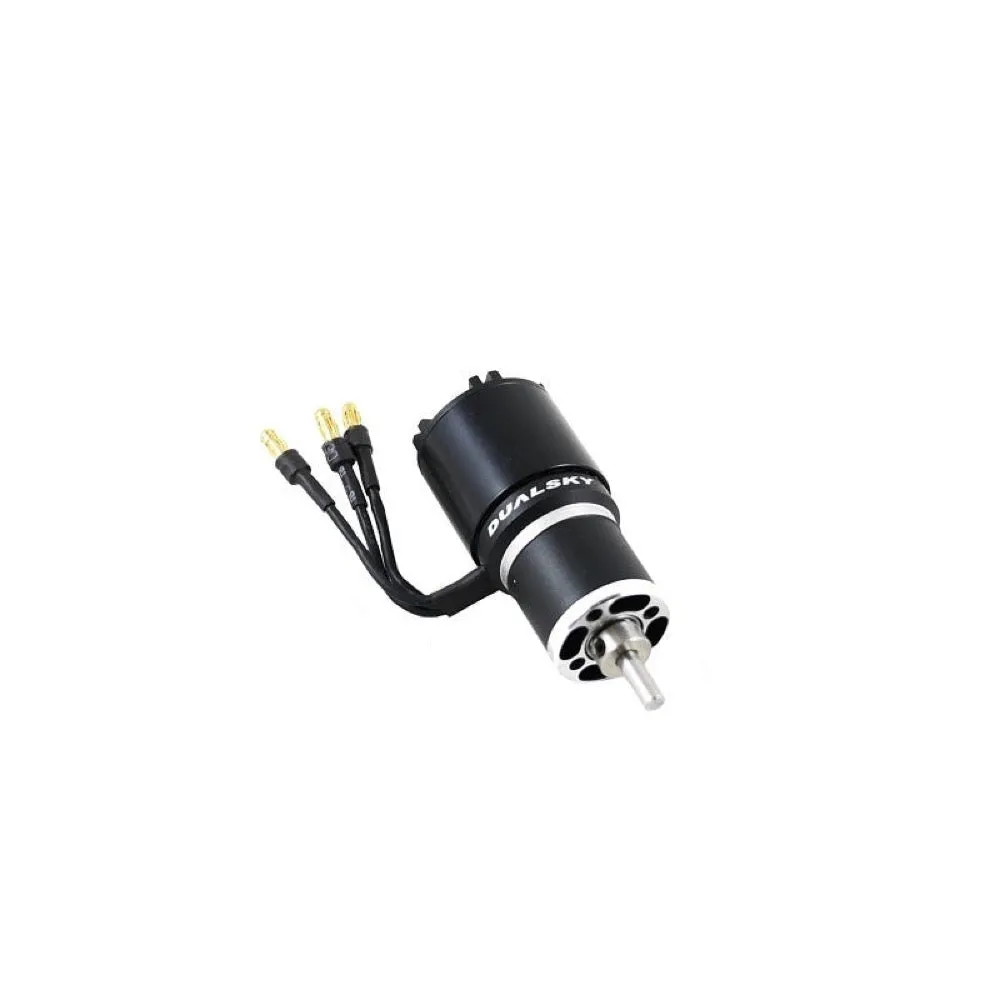

Dualsky XM2838EG-9L 1350kv Brushless Glider Motor

Dualsky XM2838EG-9L 1350kv Brushless Glider Motor

$113.99

Description

Dualsky XM2838EG-9L Brushless Glider Motor suit EP Glider Features - The motor is designed for electric gliders and is based on the new generation of EA motor systems - Keeping it simple, by abandoning the gearbox structure, and using a large torque outrunner direct drive motor - The EG Long Edition is very suitable for F5J. The integrated motor extension allows use in slender fuselage installations - The EA 2838 is Dualsky the largest torque motor of 28mm diameter - Uses a 4mm high strength shaft, to avoid bending on landing. The shaft has no circlip groove so as to not be weakened - Uses oversized imported Japanese bearings that are durable and impact-resistant - Lightweight at 98gm. Easy to get the correct CG of your model - Suitable for gliders up to 1500-1600gm flying weight using a 3S setup - We recommend to use the Dualsky XC45 LITE ESC Specification - KV: 1350 - Recommended ESC: XC3012BA-V2 or XC406ULT - Class: FAI F5J(1000g-1500g), wingspan upto 3.5 metres - Weight: 98g - Dimensions: 28.8 x 60.4 mm - Slots & Poles: 12N14P - Ri (mOhm): 29.3 - Io @10V (A): 1.9 - No.of Cells (LiPo): 3 - Max. Efficiency Current[A]: 15 - Max. Burst Current (15S)[A]: 30 - Max. Power(15S)[W]: 360 - Max. Torque [mNM]: 255 - Shaft diameter: 4mm - Mountingholes pitch: 16/19 - Input Connectors: GC3.5 - Propeller: 3S: 9x7E, 10x6E, 10x8E:

Specifications

Brand Dualsky
