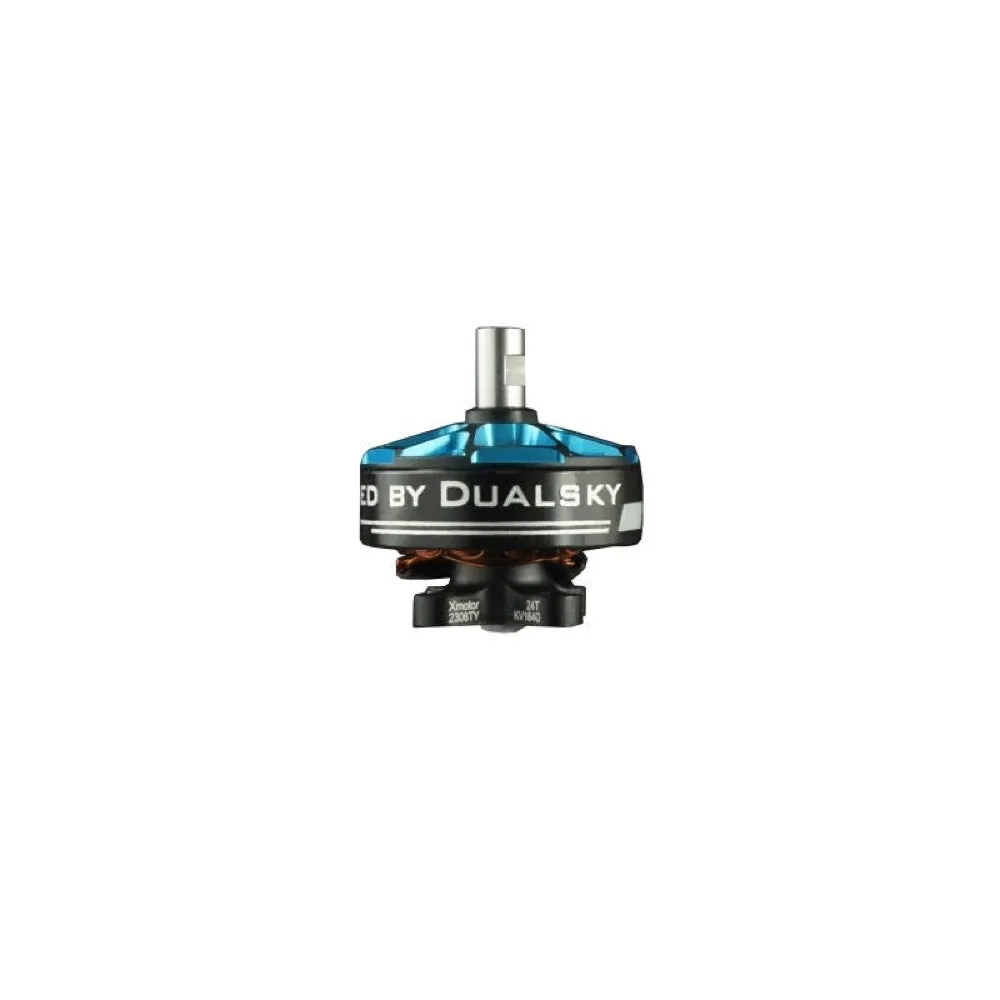

Dualsky XM2306TY-14 2800kv F3P Brushless Motor with 5mm Hollow Shaft

Dualsky XM2306TY-14 2800kv F3P Brushless Motor with 5mm Hollow Shaft

$84.99

Description

This is the Dualsky 2306 Typhoon series. Works great with folding propellers, and is suitable for F5K, eRES (F5L), and ASFC P5B, gliders. Also suits FPV wings. Features - Great fit for applications requiring a folding propeller - Weighs only 32 grams - 5mm hollow shaft Specification - RPM/V (KV): 2800 - Weight (g): 32 - Diameter (mm): 28.6 - Length (mm): 21.4 - Diameter of Shaft(mm): 5, hollow - Pitch of holes (mm): 16/16 - Input Connectors: GC2.0, 3 Pairs - Slots & Poles: 12N14P - lo@10V(A): 1.67 @7V - Resistance(Ri)(mOhm): 28.3 - No.of Cells(LiPo): 21.3 - Max. EfficiencyCurrent(A): 19.5 - Max. Burst Current (15S)[A]: 39 - Max. Power(15S) [W]: 312 - Torque (mNM) E: 190 - Recommended ESC: XC4018BA, Timing 15° (Middle) - Propeller: 2S: 7x5, 8x4, 8x5, 7x4 (3-Blade) 3S: 5x5, 6x3, 6x4, 5.1x4.3 (3-Blade) - Applications: F5K, eRES(F5L), ASFC P5B, FPV wings

Specifications

Brand Dualsky
