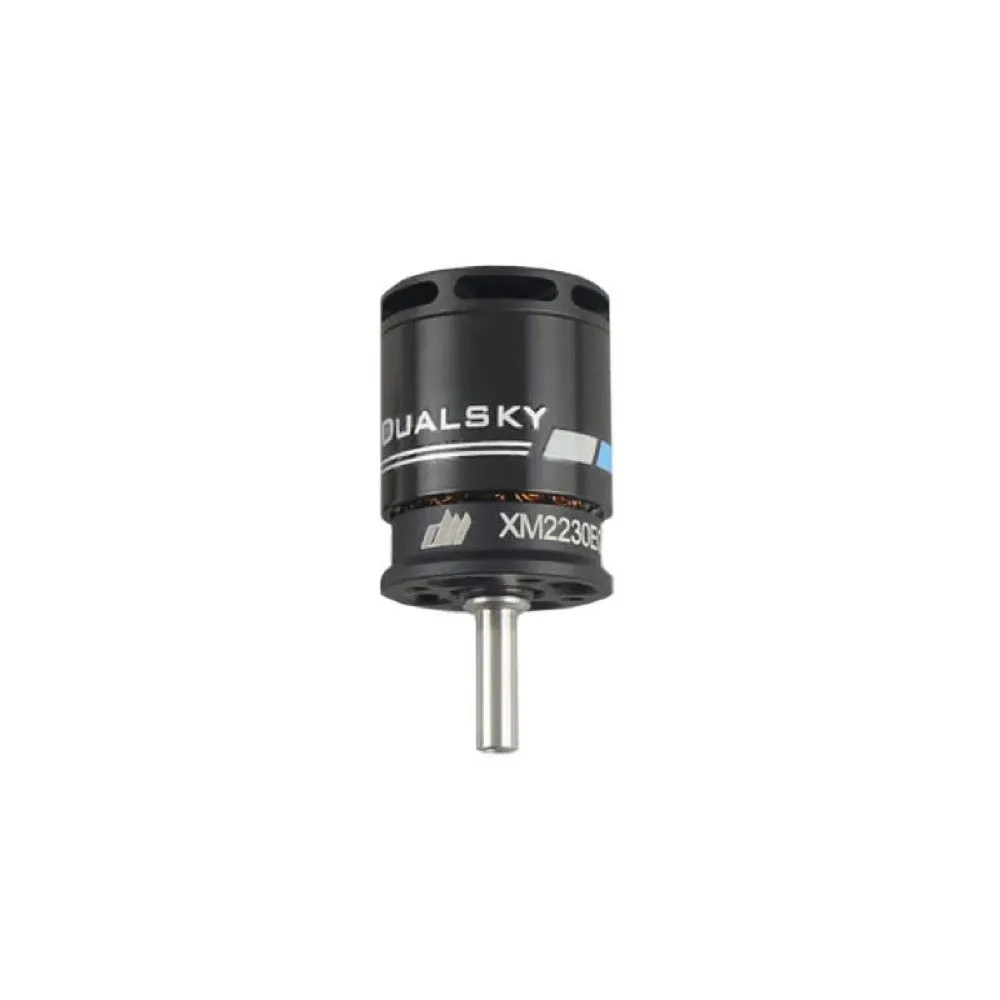

Dualsky XM2230EG-9 2700kv Brushless Glider Motor

Dualsky XM2230EG-9 2700kv Brushless Glider Motor

$79.99

Description

The Dualsky XM2230EG-9 2700kv Brushless Glider Motor is designed for use with ASFC P5B and F5K/RES Gliders. Features - 14 pole arc magnets and Japanese 0.20mm silicon steel laminations provide strong direct drive torque - Precision rotor balancing technology, NMB bearing, capable of up to 30000 rpm - Adopt 220-grade enamelled wire and high-temperature epoxy adhesive of the same level, with five-star overload resistance grade - The rear rotor cover is integrated with a centrifugal fan, which is recommended to be used with turbo type spinner Specification - KV: 2700 - Weight (g): 42 - Dimensions (DxL) (mm): 22.4x29.4 - Shaft Diameter (mm): 4 - Mounting Holes (mm): 60/60 - Input Connectors: GC2.0, 3 pairs - Slots & Poles: 12N14P - Ri (mOhm): 31 - Io @ 10V (A): 2.35 - LiPo Cells: 2S - Efficiency Current (A): 20 - Burst Current (15S) (A): 40 - Peak Power (15S) (W): 296 - Peak Torque (N.M): 118 - Recommended ESC: XC-45-Lite, 15 deg (middle) - Propeller: CAM8x6, 9x5, GM9x5, 9x6 - Application/ Class: ASFC P5B, F5K/RES

Specifications

Brand Dualsky
