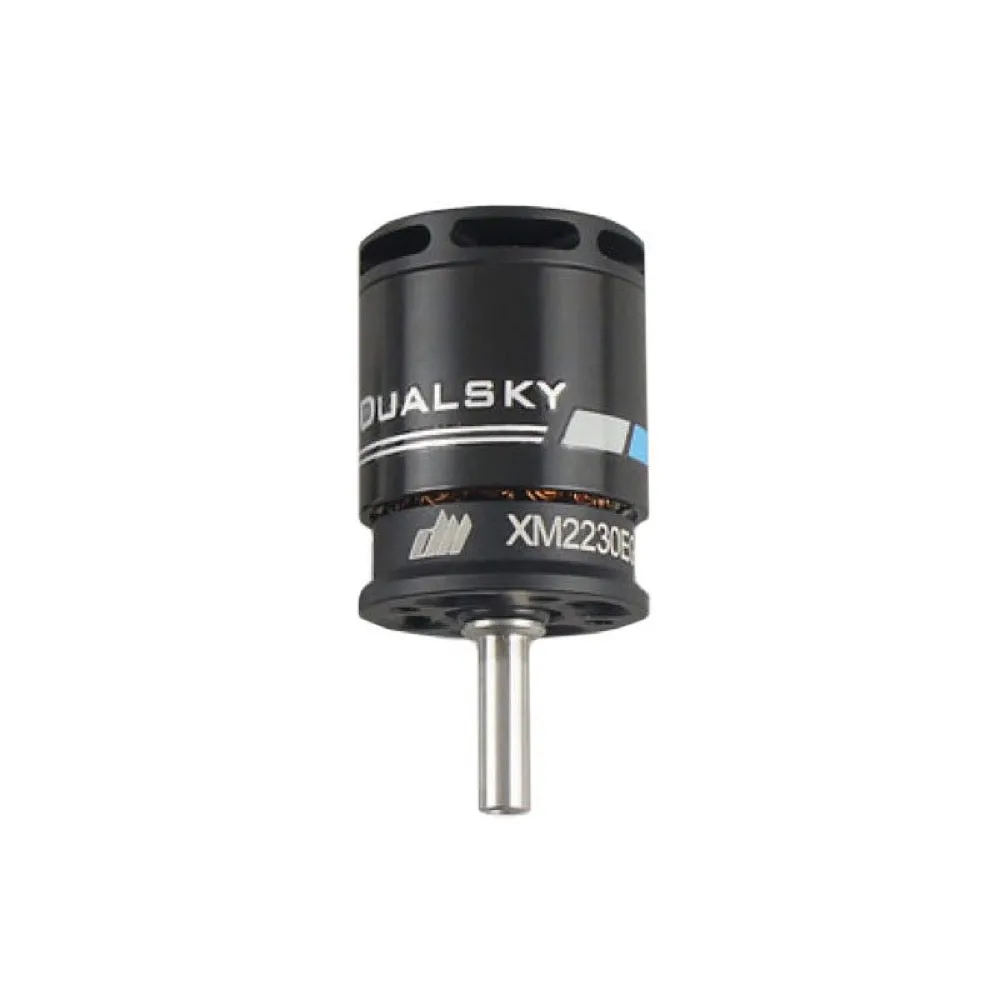

Dualsky XM2230EG-16 1550kv Brushless Glider Motor

Dualsky XM2230EG-16 1550kv Brushless Glider Motor

$79.99

Description

The Dualsky XM2230EG-16 1550kv Brushless Glider Motor is designed for use with F5K/RES Gliders. Features - 14 pole arc magnets and Japanese 0.20mm silicon steel laminations provide strong direct drive torque - Precision rotor balancing technology, NMB bearing, capable of up to 30000 rpm - Adopt 220-grade enamelled wire and high-temperature epoxy adhesive of the same level, with five-star overload resistance grade - The rear rotor cover is integrated with a centrifugal fan, which is recommended to be used with turbo type spinner Specification - RPM/V (Kv): 1550 - Weight: 42 g - Diameter: 22.4 mm - Length: 29.4 mm - Diameter of Shaft: 4 mm - Pitch of Holes: 16/16 - Input Connectors: GC2.0 3 Pairs - Slots & Poles: 12N14P - Io@10V (A): 1 - Resistance (Ri) (mOhm): 98 - No. of Cells (LiPo): 44929 - Max Efficiency Current (A): 12.5 - Max. Burst Current (15S)[A]: 25 - Max. Power(15S)[W]: 278 - Torque (mNM): 133 - Recommended ESC: XC-33U-Lite 15° (Middle) - Propeller: 2S: 10x6, 10x7 / 3S: 8x5,9x5², GM10x5² - Applications: F5K/RES

Specifications

Brand Dualsky
