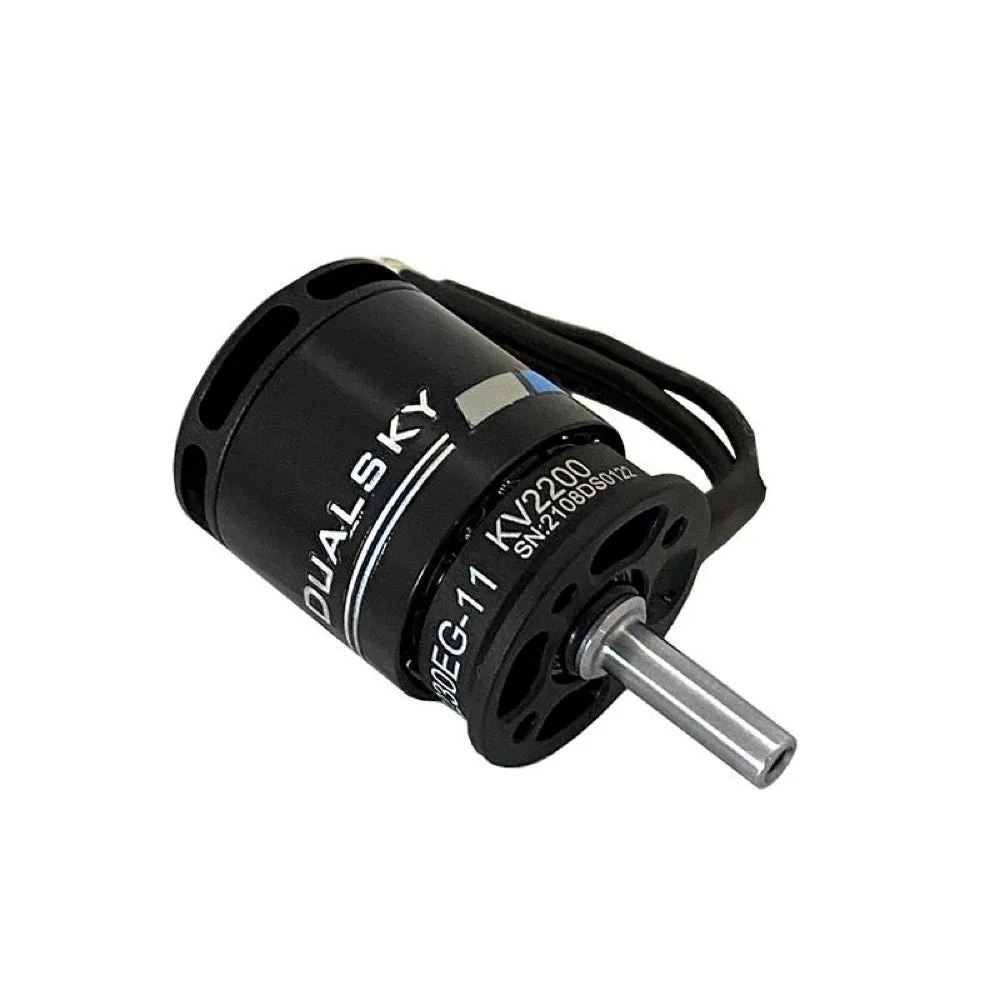

Dualsky XM2230EG-11 2200kv Brushless Glider Motor

Dualsky XM2230EG-11 2200kv Brushless Glider Motor

$79.99

Description

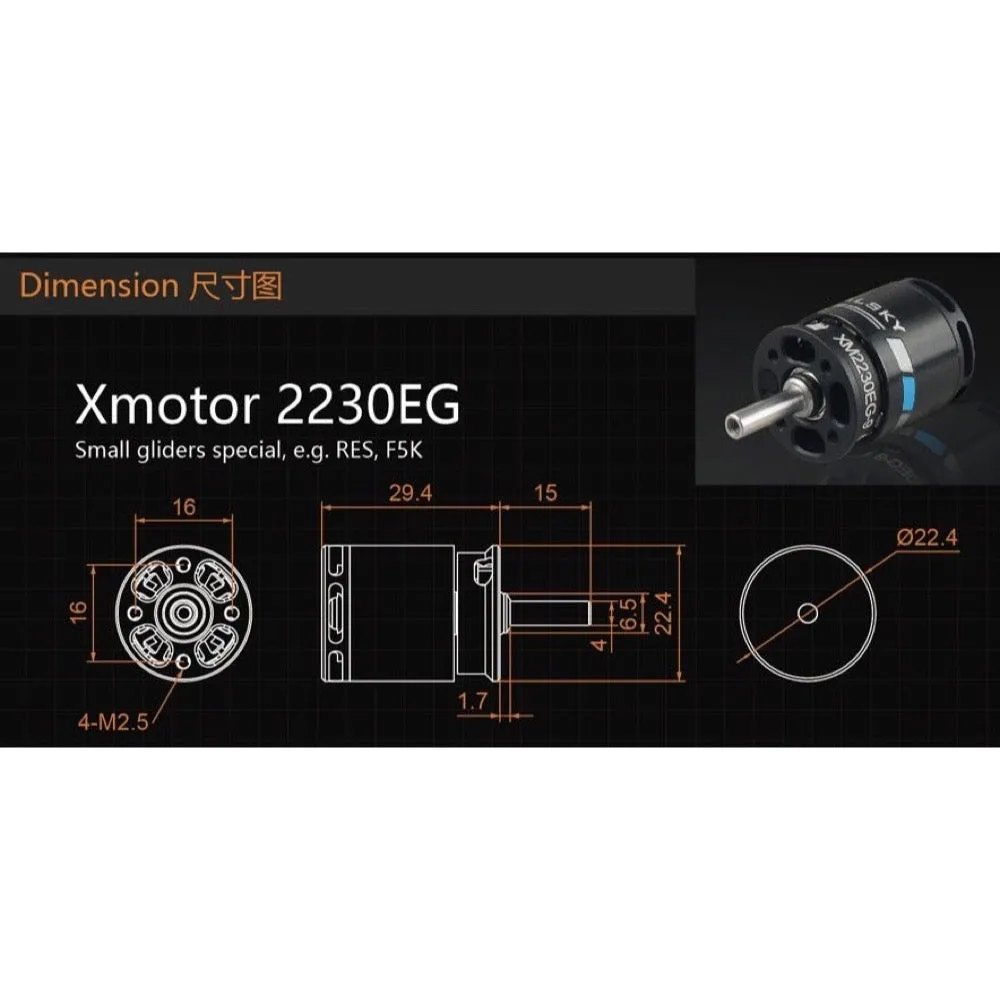

A powerful lightweight, compact brushless motor designed for eRES gliders and F5K models. 22mm diameter, 252 watts output and 42 g weight. Features - Lightweight, only 42g! - Powerful 252 watts - Slimline 22.4mm - 4mm hollow shaft and large front bearing - Uses precision NMB Japanese bearings - 14 pole arc magnets with Japanese silicon steel laminations - Uses 220 grade enamelled wire and high temperature epoxy - Centrifugal fan integrated into rear motor cover - Suitable for 2-3S operation - 9x5 to 10x6 on 2S Specification - RPM / V: 2200 - Weight: 42 g - Diameter: 22.4 mm - Length: 29.4 mm - Diameter of shaft: 4 mm - Pitch of holes: 16 / 16 - Input connectors: GC2.0 3 Pairs - Slots & poles: 12N14P - Io @ 10V: 1.70 A - Resistance (Ri) (mOhm): 45 - No of cells: 2 - 3 - Max efficiency current: 17 A - Max burst current (15S): 34 A - Max Power (15S): 252 A - Torque: 125 - Recommended ESC: XC-33U-Lite 15o (Middle) - Propeller: 2S: 9x5, 9x6, GM10x6 - Applications: F5K/RES

Specifications

Brand Dualsky
