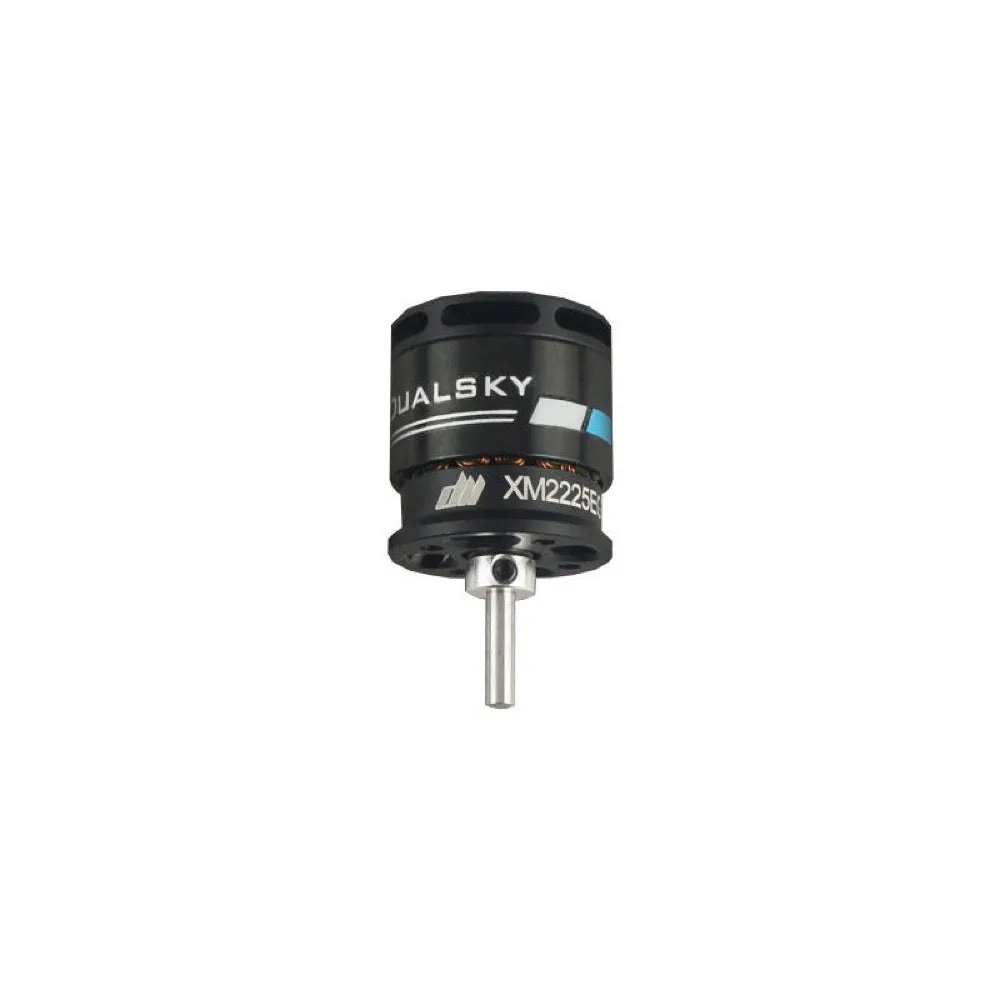

Dualsky XM2225EG-16 2300kv Brushless Glider Motor

Dualsky XM2225EG-16 2300kv Brushless Glider Motor

$63.99

Description

The Dualsky XM2225EG series is designed for small brushless gliders. This EG-16 2300kv motor can be used in F5K/RES models. Suitable for F5K/RES gliders. Recommended timing is 15 degrees (middle). Features - 14 pole arc magnets providing strong direct drive torque - Precision rotor balancing technology features NMB bearing capable of up to 30000rpm - Shaft design increases the 'survival rate' of motor when landing Specification - KV: 2300 - Weight (g): 32 - Diameter (mm): 22.4 - Length (mm): 24.4 - Shaft diameter (mm): 3 - Slots & poles: 12N14P - Io@10V (A): 1.1 - Resistance (Ri) (mOhm): 62 - Cells (LiPo): 2S, 3S - Max. Efficiency current (A): 12 - Max. Burst current (15S) (A): 24 - Max. Power (15S) (W): 178 - Torque (mNM): 125 - Recommended ESC: XC-33U-Lite - Propeller 2S: 7x4, 8x4, 8x5 - Application: F5K/ RES - Input Connectors: GC2.0 - 3 pairs

Specifications

Brand Dualsky
